使用原生ggplot方法

最容易也是最簡單想到的方法是直接使用ggplot2包進行更新，這里需要使用ggplot本身的特性，通過圖層疊加的方式，進行最終棒棒糖圖的展現。（寬度極窄的柱狀圖配合散點圖即可呈現）

1）生成數據

下面我們的展示均以此份數據為例：

library(ggplot2)

# Load data
data("mtcars")
dfm <- mtcars
# Convert the cyl variable to a factor
dfm$cyl <- as.factor(dfm$cyl)
# Add the name colums
dfm$name <- rownames(dfm)

# Calculate the z-score of the mpg data
dfm$mpg_z <- (dfm$mpg -mean(dfm$mpg))/sd(dfm$mpg)
dfm$mpg_grp <- factor(ifelse(dfm$mpg_z < 0, "low", "high"),
                    levels = c("low", "high"))
# Inspect the data
head(dfm[, c("name", "wt", "mpg", "mpg_z", "mpg_grp", "cyl")])

2）繪制棒棒糖圖

ggplot(dfm, aes(x = name, y = mpg)) +
geom_hline(yintercept = 0, color = "grey", size = 1) + # 添加y=0的輔助線
geom_point(aes(color = cyl), size = 2) +         # 將點的size設置大一些比較好看
geom_bar(aes(fill = cyl), stat = "identity", width = 0.2) + # 注意將width寬度設小
theme_bw(base_family = "Times") +
theme(panel.grid.minor = element_blank(),
      panel.grid.major.x = element_blank(),      # 消除豎條的背景線
      axis.text.x = element_text(angle = 90),
      legend.position = "None",
      panel.border = element_blank(),
      # text = element_text(family = "STHeiti"), # Mac 電腦上繪圖展現中文需要此行命令
      plot.title = element_text(hjust = 0.5)) +  # 標題居中，若無標題可不加
labs(x = "name", y = "mpg",
     colour = "", linetype = "", fill = "")

結果如下：

下面我們介紹一種更簡便且高級的棒棒糖圖繪制方法：使用ggpubr包中的ggdotchart()函數。

使用ggpubr包中的ggdotchart()

這里我們直接看官方介紹的幾個例子，來理解函數的使用方式，首先載入依賴包：

library(ggpubr)

1)

ggdotchart(dfm, x = "name", y = "mpg",
         color = "cyl",                                # Color by groups
         palette = c("#00AFBB", "#E7B800", "#FC4E07"), # Custom color palette
         sorting = "ascending",                        # Sort value in descending order
         add = "segments",                             # Add segments from y = 0 to dots
         ggtheme = theme_pubr()                        # ggplot2 theme
)

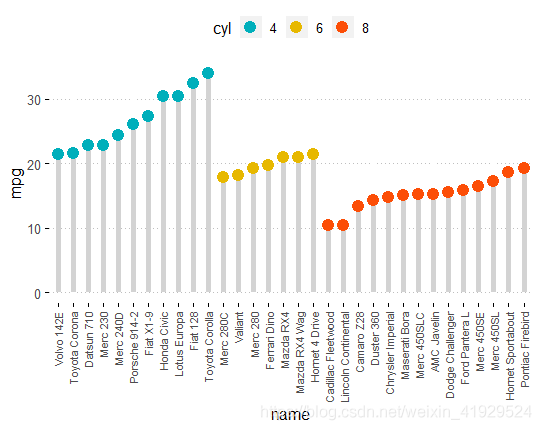

2)

ggdotchart(dfm, x = "name", y = "mpg",
         color = "cyl",
         palette = c("#00AFBB", "#E7B800", "#FC4E07"),
         sorting = "asc", sort.by.groups = TRUE,
         add = "segments",
         add.params = list(color = "lightgray", size = 2),
         group = "cyl",
         dot.size = 4,
         ggtheme = theme_pubclean()
) + font("x.text", size = 8, vjust = 0.5)

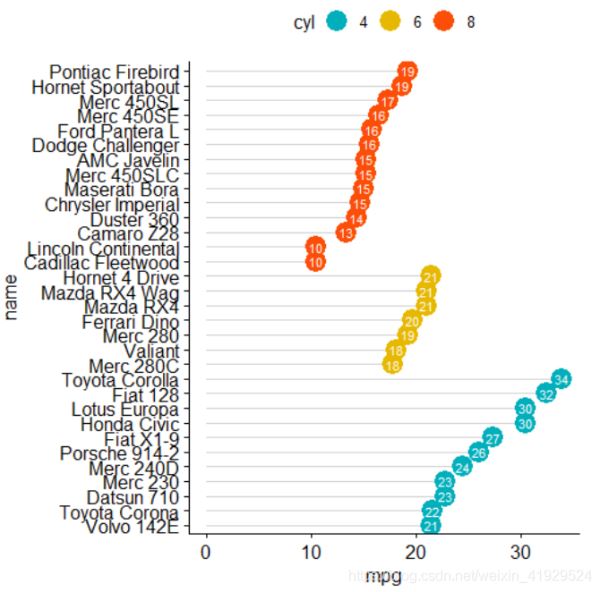

3)

ggdotchart(dfm, x = "name", y = "mpg",
         color = "cyl",                                # Color by groups
         palette = c("#00AFBB", "#E7B800", "#FC4E07"), # Custom color palette
         sorting = "descending",                       # Sort value in descending order
         add = "segments",                             # Add segments from y = 0 to dots
         rotate = TRUE,                                # Rotate vertically
         group = "cyl",                                # Order by groups
         dot.size = 6,                                 # Large dot size
         label = round(dfm$mpg),                        # Add mpg values as dot labels
         font.label = list(color = "white", size = 9,
                           vjust = 0.5),               # Adjust label parameters
         ggtheme = theme_pubr()                        # ggplot2 theme
)

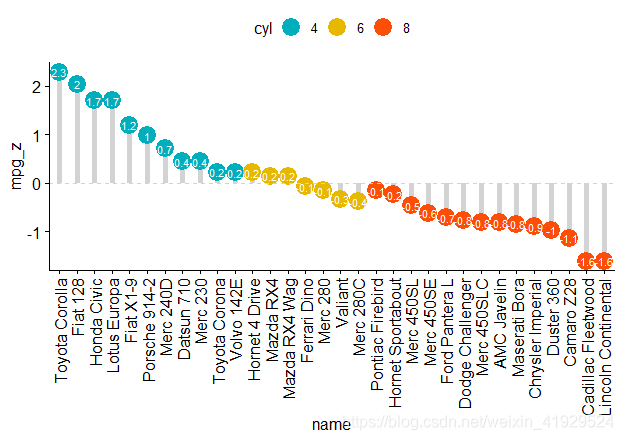

4)

ggdotchart(dfm, x = "name", y = "mpg_z",
         color = "cyl",                                # Color by groups
         palette = c("#00AFBB", "#E7B800", "#FC4E07"), # Custom color palette
         sorting = "descending",                       # Sort value in descending order
         add = "segments",                             # Add segments from y = 0 to dots
         add.params = list(color = "lightgray", size = 2), # Change segment color and size
         group = "cyl",                                # Order by groups
         dot.size = 6,                                 # Large dot size
         label = round(dfm$mpg_z,1),                        # Add mpg values as dot labels
         font.label = list(color = "white", size = 9,
                           vjust = 0.5),               # Adjust label parameters
         ggtheme = theme_pubr()                        # ggplot2 theme
) + geom_hline(yintercept = 0, linetype = 2, color = "lightgray")

參考

Articles - ggpubr: Publication Ready Plots

Articles - R Graphics Essentials

ggpubr: ‘ggplot2' Based Publication Ready Plots
