第一步、導入需要的包
|
1
2
3
4
5
6
7
8
9
10
|
import osimport scipy.io as sioimport numpy as npimport torchimport torch.nn as nnimport torch.backends.cudnn as cudnnimport torch.optim as optimfrom torch.utils.data import Dataset, DataLoaderfrom torchvision import transforms, utilsfrom torch.autograd import Variable |
|
1
2
|
batchSize = 128 # batchsize的大小niter = 10 # epoch的最大值 |
第二步、構建神經網絡

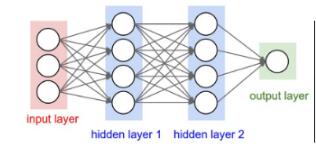

設神經網絡為如上圖所示，輸入層4個神經元，兩層隱含層各4個神經元，輸出層一個神經。每一層網絡所做的都是線性變換，即y=W×X+b；代碼實現如下：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
|
class Neuralnetwork(nn.Module): def __init__(self, in_dim, n_hidden_1, n_hidden_2, out_dim): super(Neuralnetwork, self).__init__() self.layer1 = nn.Linear(in_dim, n_hidden_1) self.layer2 = nn.Linear(n_hidden_1, n_hidden_2) self.layer3 = nn.Linear(n_hidden_2, out_dim) def forward(self, x): x = x.view(x.size(0), -1) x = self.layer1(x) x = self.layer2(x) x = self.layer3(x) return x model = Neuralnetwork(1*3, 4, 4, 1) print(model) # net architecture |
|
1
2
3
4
5
|
Neuralnetwork( (layer1): Linear(in_features=3, out_features=4, bias=True) (layer2): Linear(in_features=4, out_features=4, bias=True) (layer3): Linear(in_features=4, out_features=1, bias=True)) |
??? 第三步、讀取數據
自定義的數據為demo_SBPFea.mat，是MATLAB保存的數據格式，其存儲的內容如下：包括fea(1000*3)和sbp(1000*1)兩個數組；fea為特征向量，行為樣本數，列為特征寬度；sbp為標簽
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
|
class SBPEstimateDataset(Dataset): def __init__(self, ext='demo'): data = sio.loadmat(ext+'_SBPFea.mat') self.fea = data['fea'] self.sbp = data['sbp'] def __len__(self): return len(self.sbp) def __getitem__(self, idx): fea = self.fea[idx] sbp = self.sbp[idx] """Convert ndarrays to Tensors.""" return {'fea': torch.from_numpy(fea).float(), 'sbp': torch.from_numpy(sbp).float() } train_dataset = SBPEstimateDataset(ext='demo')train_loader = DataLoader(train_dataset, batch_size=batchSize, # 分批次訓練 shuffle=True, num_workers=int(8)) |
整個數據樣本為1000，以batchSize = 128劃分，分為8份，前7份為104個樣本，第8份則為104個樣本。在網絡訓練過程中，是一份數據一份數據進行訓練的
第四步、模型訓練
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
|
# 優化器，Adam optimizer = optim.Adam(list(model.parameters()), lr=0.0001, betas=(0.9, 0.999),weight_decay=0.004) scheduler = optim.lr_scheduler.ExponentialLR(optimizer, gamma=0.997) criterion = nn.MSELoss() # loss function if torch.cuda.is_available(): # 有GPU，則用GPU計算 model.cuda() criterion.cuda() for epoch in range(niter): losses = [] ERROR_Train = [] model.train() for i, data in enumerate(train_loader, 0): model.zero_grad()# 首先提取清零 real_cpu, label_cpu = data['fea'], data['sbp'] if torch.cuda.is_available():# CUDA可用情況下，將Tensor 在GPU上運行 real_cpu = real_cpu.cuda() label_cpu = label_cpu.cuda() input=real_cpu label=label_cpu inputv = Variable(input) labelv = Variable(label) output = model(inputv) err = criterion(output, labelv) err.backward() optimizer.step() losses.append(err.data[0]) error = output.data-label+ 1e-12 ERROR_Train.extend(error) MAE = np.average(np.abs(np.array(ERROR_Train))) ME = np.average(np.array(ERROR_Train)) STD = np.std(np.array(ERROR_Train)) print('[%d/%d] Loss: %.4f MAE: %.4f Mean Error: %.4f STD: %.4f' % ( epoch, niter, np.average(losses), MAE, ME, STD)) |
|
1
2
3
4
5
6
7
8
9
10
11
|
???[0/10] Loss: 18384.6699 MAE: 135.3871 Mean Error: -135.3871 STD: 7.5580[1/10] Loss: 17063.0215 MAE: 130.4145 Mean Error: -130.4145 STD: 7.8918[2/10] Loss: 13689.1934 MAE: 116.6625 Mean Error: -116.6625 STD: 9.7946[3/10] Loss: 8192.9053 MAE: 89.6611 Mean Error: -89.6611 STD: 12.9911[4/10] Loss: 2979.1340 MAE: 52.5410 Mean Error: -52.5279 STD: 15.0930[5/10] Loss: 599.7094 MAE: 22.2735 Mean Error: -19.9979 STD: 14.2069[6/10] Loss: 207.2831 MAE: 11.2394 Mean Error: -4.8821 STD: 13.5528[7/10] Loss: 189.8173 MAE: 9.8020 Mean Error: -1.2357 STD: 13.7095[8/10] Loss: 188.3376 MAE: 9.6512 Mean Error: -0.6498 STD: 13.7075[9/10] Loss: 186.8393 MAE: 9.6946 Mean Error: -1.0850 STD: 13.6332?? |
以上這篇Pytorch 神經網絡—自定義數據集上實現教程就是小編分享給大家的全部?jī)?nèi)容了，希望能給大家一個參考，也希望大家多多支持服務器之家。
