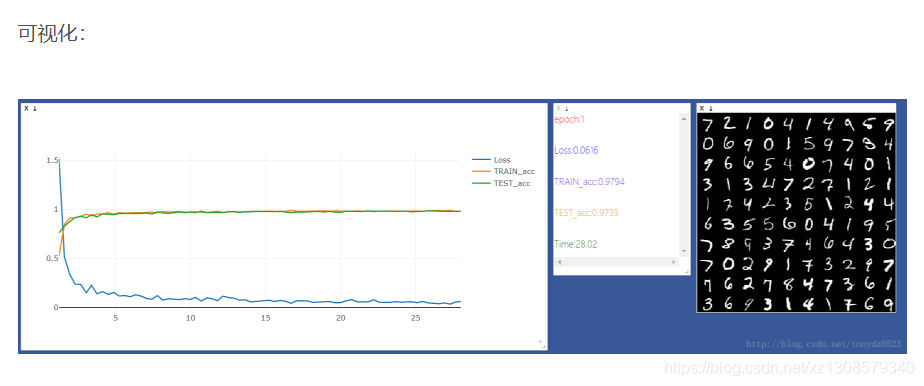

1.效果

2.環境

1.pytorch
2.visdom
3.python3.5

3.用到的代碼

# coding:utf8
import torch
from torch import nn, optim   # nn 神經網絡模塊 optim優化函數模塊
from torch.utils.data import DataLoader
from torch.autograd import Variable
from torchvision import transforms, datasets
from visdom import Visdom  # 可視化處理模塊
import time
import numpy as np
# 可視化app
viz = Visdom()
# 超參數
BATCH_SIZE = 40
LR = 1e-3
EPOCH = 2
# 判斷是否使用gpu
USE_GPU = True
if USE_GPU:
  gpu_status = torch.cuda.is_available()
else:
  gpu_status = False
transform=transforms.Compose([transforms.ToTensor(),transforms.Normalize((0.1307,), (0.3081,))])
# 數據引入
train_dataset = datasets.MNIST('../data', True, transform, download=False)
test_dataset = datasets.MNIST('../data', False, transform)
train_loader = DataLoader(train_dataset, BATCH_SIZE, True)
# 為加快測試，把測試數據從10000縮小到2000
test_data = torch.unsqueeze(test_dataset.test_data, 1)[:1500]
test_label = test_dataset.test_labels[:1500]
# visdom可視化部分數據
viz.images(test_data[:100], nrow=10)
#viz.images(test_data[:100], nrow=10)
# 為防止可視化視窗重疊現象，停頓0.5秒
time.sleep(0.5)
if gpu_status:
  test_data = test_data.cuda()
test_data = Variable(test_data, volatile=True).float()
# 創建線圖可視化窗口
line = viz.line(np.arange(10))
# 創建cnn神經網絡
class CNN(nn.Module):
  def __init__(self, in_dim, n_class):
      super(CNN, self).__init__()
      self.conv = nn.Sequential(
          # channel 為信息高度 padding為圖片留白 kernel_size 掃描模塊size（5x5）
          nn.Conv2d(in_channels=in_dim, out_channels=16,kernel_size=5,stride=1, padding=2),
          nn.ReLU(),
          # 平面縮減 28x28 >> 14*14
          nn.MaxPool2d(kernel_size=2),
          nn.Conv2d(16, 32, 3, 1, 1),
          nn.ReLU(),
          # 14x14 >> 7x7
          nn.MaxPool2d(2)
      )
      self.fc = nn.Sequential(
          nn.Linear(32*7*7, 120),
          nn.Linear(120, n_class)
      )
  def forward(self, x):
      out = self.conv(x)
      out = out.view(out.size(0), -1)
      out = self.fc(out)
      return out
net = CNN(1,10)
if gpu_status :
  net = net.cuda()
  #print("#"*26, "使用gpu", "#"*26)
else:
  #print("#" * 26, "使用cpu", "#" * 26)
  pass
# loss、optimizer 函數設置
loss_f = nn.CrossEntropyLoss()
optimizer = optim.Adam(net.parameters(), lr=LR)
# 起始時間設置
start_time = time.time()
# 可視化所需數據點
time_p, tr_acc, ts_acc, loss_p = [], [], [], []
# 創建可視化數據視窗
text = viz.text("<h1>convolution Nueral Network</h1>")
for epoch in range(EPOCH):
  # 由于分批次學習，輸出loss為一批平均，需要累積or平均每個batch的loss，acc
  sum_loss, sum_acc, sum_step = 0., 0., 0.
  for i, (tx, ty) in enumerate(train_loader, 1):
      if gpu_status:
          tx, ty = tx.cuda(), ty.cuda()
      tx = Variable(tx)
      ty = Variable(ty)
      out = net(tx)
      loss = loss_f(out, ty)
      #print(tx.size())
      #print(ty.size())
      #print(out.size())
      sum_loss += loss.item()*len(ty)
      #print(sum_loss)
      pred_tr = torch.max(out,1)[1]
      sum_acc += sum(pred_tr==ty).item()
      sum_step += ty.size(0)
      # 學習反饋
      optimizer.zero_grad()
      loss.backward()
      optimizer.step()
      # 每40個batch可視化一下數據
      if i % 40 == 0:
          if gpu_status:
              test_data = test_data.cuda()
          test_out = net(test_data)
          print(test_out.size())
          # 如果用gpu運行out數據為cuda格式需要.cpu（）轉化為cpu數據 在進行比較
          pred_ts = torch.max(test_out, 1)[1].cpu().data.squeeze()
          print(pred_ts.size())
          rightnum = pred_ts.eq(test_label.view_as(pred_ts)).sum().item()
          #rightnum =sum(pred_tr==ty).item()
          #  sum_acc += sum(pred_tr==ty).item()
          acc =  rightnum/float(test_label.size(0))
          print("epoch: [{}/{}] | Loss: {:.4f} | TR_acc: {:.4f} | TS_acc: {:.4f} | Time: {:.1f}".format(epoch+1, EPOCH,
                                  sum_loss/(sum_step), sum_acc/(sum_step), acc, time.time()-start_time))
          # 可視化部分
          time_p.append(time.time()-start_time)
          tr_acc.append(sum_acc/sum_step)
          ts_acc.append(acc)
          loss_p.append(sum_loss/sum_step)
          viz.line(X=np.column_stack((np.array(time_p), np.array(time_p), np.array(time_p))),
                   Y=np.column_stack((np.array(loss_p), np.array(tr_acc), np.array(ts_acc))),
                   win=line,
                   opts=dict(legend=["Loss", "TRAIN_acc", "TEST_acc"]))
          # visdom text 支持html語句
          viz.text("<p style='color:red'>epoch:{}</p><br><p style='color:blue'>Loss:{:.4f}</p><br>"
                   "<p style='color:BlueViolet'>TRAIN_acc:{:.4f}</p><br><p style='color:orange'>TEST_acc:{:.4f}</p><br>"
                   "<p style='color:green'>Time:{:.2f}</p>".format(epoch, sum_loss/sum_step, sum_acc/sum_step, acc,
                                                                     time.time()-start_time),
                   win=text)
          sum_loss, sum_acc, sum_step = 0., 0., 0.

以上就是pytorch教程網絡和損失函數的可視化代碼示例的詳細內容，更多關于pytorch教程網絡和損失函數的可視化的資料請關注服務器之家其它相關文章！
