一、介紹
我們做開發的，尤其是做微軟技術棧的，有一個方向是跳不過去的，那就是MVC開發。我相信大家，做ASP.NET MVC 開發有的有很長時間，當然，也有剛進入這個行業的。無論如何，如果有人問你，你知道ASP.NET MVC的生命周期嗎？你知道它的來世今生嗎？你知道它和 ASP.NET WEBFORM 有什么區別嗎?估計，這些問題，有很多人會答不上來，或者說不清楚。今天，我就把我的理解寫出來，也是對我自己學習的一次回顧和總結吧。當然，由于本人能力有限，在寫的過程中也可能會有一些錯誤，希望大家多多包涵，當然，更希望大家能不靈賜教，我們共同進步。
在開始之前，我們先來說說，ASP.NET Web Form 和 Asp.net MVC 有什么區別，這里說的區別，當然是本質區別，不是適用語法那個層次的。其實，說起來，ASP.NET WEB FORM 和 ASP.NET MVC 它們兩個沒有本質區別，使用的都是ASP.NET WEB FORM 的管道處理模型，ASP.NET MVC 也是通過擴展 IHttpModule 和 IHttpHandler 來實現的，都是基于 ASP.NET 的 HttpApplication 的管道處理模型擴展的，在這個層面來說，它們是一樣的。當然，大家不要抬杠，我說的本質區別都是在這個方面，不同意的勿噴。
有人會問，ASP.NET MVC 和 ASP.NET WEBAPI 它們會有什么不同嗎？好像 WebAPi 能做的，WebMVC都可以完成，第一眼看上去，好像是這樣，但是它們有著本質的不同。WebAPI 的處理管道是重新寫過的，不是基于 HTTPApplication 管道擴展的。ASP.NET WEB API 類似專人做專事，它的管道處理模型更高效，并且有了 Restfull 的概念。當然，大家如何向了解更細的內容，就需要看源碼了。或再說回來，到了 NET CORE 時代，二者又融合管道了。
二、MVC生命周期詳述

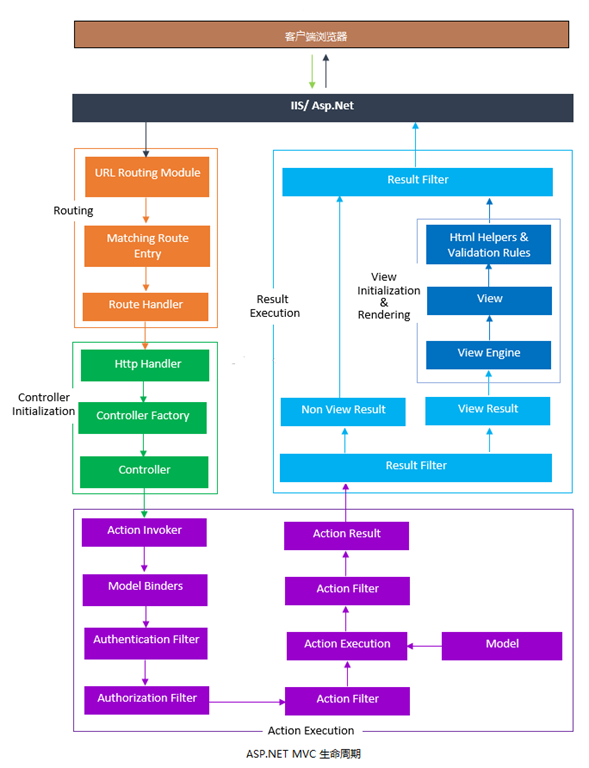

1、我們既然要說 ASP.NET MVC的生命周期，為了給大家一個整體印象，俗話說，文不如圖，我就貼一張圖，按著箭頭走，相信大家也會不能理解。
2、上圖很簡單，大家按著箭頭走，也能理解的差不多。以下是按著我的理解，劃分了4個模塊。
（1）、路由模塊
RouteBase 是對路由規則的抽象，也就是說，一個 RouteBase 對象，也就代表了一個條 路由規則。在 ASP.NET MVC 中，有一個唯一的子類實現就是 Route ，它同樣也是路由規則的代表。我們有了路由規則，一定會把這個規則存放在一個地方，這個地方保存了很多路由規則，這個地方就是 RouteCollection，中文叫“路由集合”，因為這個集合里面包含的就是 RouteBase 對象。
RouteCollection 就是路由集合，用于保存路由規則對象，它的定義形式：
[TypeForwardedFrom("System.Web.Routing, Version=3.5.0.0, Culture=Neutral, PublicKeyToken=31bf3856ad364e35")]
public class RouteCollection : Collection<RouteBase>
{
private class ReadLockDisposable : IDisposable
{
private ReaderWriterLockSlim _rwLock;
public ReadLockDisposable(ReaderWriterLockSlim rwLock)
{
this._rwLock = rwLock;
}
void IDisposable.Dispose()
{
this._rwLock.ExitReadLock();
}
}
......
RouteTable 就是路由表，其實它和 RouteCollection 是一樣的。
public class RouteTable
{
private static RouteCollection _instance = new RouteCollection();
public static RouteCollection Routes
{
get
{
return RouteTable._instance;
}
}
}
在ASP.NET MVC處理管線中的第一站就是路由模塊。當請求到達路由模塊后，ASP.NET MVC 框架就會根據 RouteTable 中配置的路由模板來匹配當前請求以獲得對應的 Controller 和 Action 信息。具體的匹配過程就是有UrlRoutingModule(System.Web.Routing.UrlRoutingModule)來實現的。如果遇到一個匹配的規則，就會立刻跳出下面的配置。也就是說，配置過程是有順序的，如果有一個匹配，后面就算有匹配的也不會執行的。
namespace System.Web.Routing
{
[TypeForwardedFrom("System.Web.Routing, Version=3.5.0.0, Culture=Neutral, PublicKeyToken=31bf3856ad364e35")]
public class UrlRoutingModule : IHttpModule
{
private static readonly object _contextKey = new object();
private static readonly object _requestDataKey = new object();
private RouteCollection _routeCollection;
public RouteCollection RouteCollection
{
get
{
if (this._routeCollection == null)
{
this._routeCollection = RouteTable.Routes;
}
return this._routeCollection;
}
set
{
this._routeCollection = value;
}
}
protected virtual void Dispose()
{
}
protected virtual void Init(HttpApplication application)
{
if (application.Context.Items[UrlRoutingModule._contextKey] != null)
{
return;
}
application.Context.Items[UrlRoutingModule._contextKey] = UrlRoutingModule._contextKey;
application.PostResolveRequestCache += new EventHandler(this.OnApplicationPostResolveRequestCache);
}
private void OnApplicationPostResolveRequestCache(object sender, EventArgs e)
{
HttpApplication httpApplication = (HttpApplication)sender;
HttpContextBase context = new HttpContextWrapper(httpApplication.Context);
this.PostResolveRequestCache(context);
}
[Obsolete("This method is obsolete. Override the Init method to use the PostMapRequestHandler event.")]
public virtual void PostMapRequestHandler(HttpContextBase context)
{
}
public virtual void PostResolveRequestCache(HttpContextBase context)
{
RouteData routeData = this.RouteCollection.GetRouteData(context); 第一步匹配路由規則
if (routeData == null)
{
return;
}
IRouteHandler routeHandler = routeData.RouteHandler; 第二步：如有匹配，就找到RouteHandler對象，該類型的實例是：MvcRouteHandler。
if (routeHandler == null)
{
throw new InvalidOperationException(string.Format(CultureInfo.CurrentCulture, SR.GetString("UrlRoutingModule_NoRouteHandler"), new object[0]));
}
if (routeHandler is StopRoutingHandler)
{
return;
}
RequestContext requestContext = new RequestContext(context, routeData);
context.Request.RequestContext = requestContext;
IHttpHandler httpHandler = routeHandler.GetHttpHandler(requestContext);第三步，根據 RouteHandler 對象，找到最終處理請求的 IHttpHandler 的對象，該類型是 MvcHandler
if (httpHandler == null)
{
throw new InvalidOperationException(string.Format(CultureInfo.CurrentUICulture, SR.GetString("UrlRoutingModule_NoHttpHandler"), new object[]
{
routeHandler.GetType()
}));
}
if (!(httpHandler is UrlAuthFailureHandler))
{
context.RemapHandler(httpHandler);第四步，有找到的 IHttpHandler 處理請求。
return;
}
if (FormsAuthenticationModule.FormsAuthRequired)
{
UrlAuthorizationModule.ReportUrlAuthorizationFailure(HttpContext.Current, this);
return;
}
throw new HttpException(401, SR.GetString("Assess_Denied_Description3"));
}
void IHttpModule.Dispose()
{
this.Dispose();
}
void IHttpModule.Init(HttpApplication application)
{
this.Init(application);
}
}
}
（2）、Controller 創建模塊
經過了路由模塊，生成了 RouteData 路由數據，它包含了根據路由規則匹配的 Controller 和 Action。有了路由數據，需要有處理器來處理請求，這個任務就交給了 RouteData 的 RouteHandler 屬性，它的類型是 IRouteHandler，它的值就是MvcRouteHandler，MvcRouteHandler 調用 GetHttpHandler 獲取處理請求的 IHttpHandler 對象，在 MVC 框架中就是 MvcHandler，詳細代碼如下：
namespace System.Web.Mvc
{
/// <summary>Selects the controller that will handle an HTTP request.</summary>
public class MvcHandler : IHttpAsyncHandler, IHttpHandler, IRequiresSessionState
{
private struct ProcessRequestState
{
internal IAsyncController AsyncController;
internal IControllerFactory Factory;
internal RequestContext RequestContext;
internal void ReleaseController()
{
this.Factory.ReleaseController(this.AsyncController);
}
}
[CompilerGenerated]
[Serializable]
private sealed class <>c
{
public static readonly MvcHandler.<>c <>9 = new MvcHandler.<>c();
public static BeginInvokeDelegate<MvcHandler.ProcessRequestState> <>9__20_0;
public static EndInvokeVoidDelegate<MvcHandler.ProcessRequestState> <>9__20_1;
public static Func<KeyValuePair<string, object>, bool> <>9__26_0;
internal IAsyncResult <BeginProcessRequest>b__20_0(AsyncCallback asyncCallback, object asyncState, MvcHandler.ProcessRequestState innerState)
{
IAsyncResult result;
try
{
result = innerState.AsyncController.BeginExecute(innerState.RequestContext, asyncCallback, asyncState);
}
catch
{
innerState.ReleaseController();
throw;
}
return result;
}
internal void <BeginProcessRequest>b__20_1(IAsyncResult asyncResult, MvcHandler.ProcessRequestState innerState)
{
try
{
innerState.AsyncController.EndExecute(asyncResult);
}
finally
{
innerState.ReleaseController();
}
}
internal bool <RemoveOptionalRoutingParameters>b__26_0(KeyValuePair<string, object> entry)
{
return entry.Value == UrlParameter.Optional;
}
}
private static readonly object _processRequestTag = new object();
internal static readonly string MvcVersion = MvcHandler.GetMvcVersionString();
/// <summary>Contains the header name of the ASP.NET MVC version.</summary>
public static readonly string MvcVersionHeaderName = "X-AspNetMvc-Version";
private ControllerBuilder _controllerBuilder;
internal ControllerBuilder ControllerBuilder
{
get
{
if (this._controllerBuilder == null)
{
this._controllerBuilder = ControllerBuilder.Current;
}
return this._controllerBuilder;
}
set
{
this._controllerBuilder = value;
}
}
/// <summary>Gets or sets a value that indicates whether the MVC response header is disabled.</summary>
/// <returns>true if the MVC response header is disabled; otherwise, false.</returns>
public static bool DisableMvcResponseHeader
{
get;
set;
}
/// <summary>Gets a value that indicates whether another request can use the <see cref="T:System.Web.IHttpHandler" /> instance.</summary>
/// <returns>true if the <see cref="T:System.Web.IHttpHandler" /> instance is reusable; otherwise, false.</returns>
protected virtual bool IsReusable
{
get
{
return false;
}
}
/// <summary>Gets the request context.</summary>
/// <returns>The request context.</returns>
public RequestContext RequestContext
{
get;
private set;
}
/// <summary>Gets a value that indicates whether another request can use the <see cref="T:System.Web.IHttpHandler" /> instance.</summary>
/// <returns>true if the <see cref="T:System.Web.IHttpHandler" /> instance is reusable; otherwise, false.</returns>
bool IHttpHandler.IsReusable
{
get
{
return this.IsReusable;
}
}
/// <summary>Initializes a new instance of the <see cref="T:System.Web.Mvc.MvcHandler" /> class.</summary>
/// <param name="requestContext">The request context.</param>
/// <exception cref="T:System.ArgumentNullException">The <paramref name="requestContext" /> parameter is null.</exception>
public MvcHandler(RequestContext requestContext)
{
if (requestContext == null)
{
throw new ArgumentNullException("requestContext");
}
this.RequestContext = requestContext;
}
/// <summary>Adds the version header by using the specified HTTP context.</summary>
/// <param name="httpContext">The HTTP context.</param>
protected internal virtual void AddVersionHeader(HttpContextBase httpContext)
{
if (!MvcHandler.DisableMvcResponseHeader)
{
httpContext.Response.AppendHeader(MvcHandler.MvcVersionHeaderName, MvcHandler.MvcVersion);
}
}
/// <summary>Called by ASP.NET to begin asynchronous request processing.</summary>
/// <returns>The status of the asynchronous call.</returns>
/// <param name="httpContext">The HTTP context.</param>
/// <param name="callback">The asynchronous callback method.</param>
/// <param name="state">The state of the asynchronous object.</param>
protected virtual IAsyncResult BeginProcessRequest(HttpContext httpContext, AsyncCallback callback, object state)
{
HttpContextBase httpContext2 = new HttpContextWrapper(httpContext);
return this.BeginProcessRequest(httpContext2, callback, state);
}
/// <summary>Called by ASP.NET to begin asynchronous request processing using the base HTTP context.</summary>
/// <returns>The status of the asynchronous call.</returns>
/// <param name="httpContext">The HTTP context.</param>
/// <param name="callback">The asynchronous callback method.</param>
/// <param name="state">The state of the asynchronous object.</param>
protected internal virtual IAsyncResult BeginProcessRequest(HttpContextBase httpContext, AsyncCallback callback, object state)
{
IController controller;
IControllerFactory factory;
this.ProcessRequestInit(httpContext, out controller, out factory);
IAsyncController asyncController = controller as IAsyncController;
if (asyncController != null)
{
BeginInvokeDelegate<MvcHandler.ProcessRequestState> arg_51_0;
if ((arg_51_0 = MvcHandler.<>c.<>9__20_0) == null)
{
arg_51_0 = (MvcHandler.<>c.<>9__20_0 = new BeginInvokeDelegate<MvcHandler.ProcessRequestState>(MvcHandler.<>c.<>9.<BeginProcessRequest>b__20_0));
}
BeginInvokeDelegate<MvcHandler.ProcessRequestState> beginDelegate = arg_51_0;
EndInvokeVoidDelegate<MvcHandler.ProcessRequestState> arg_71_0;
if ((arg_71_0 = MvcHandler.<>c.<>9__20_1) == null)
{
arg_71_0 = (MvcHandler.<>c.<>9__20_1 = new EndInvokeVoidDelegate<MvcHandler.ProcessRequestState>(MvcHandler.<>c.<>9.<BeginProcessRequest>b__20_1));
}
EndInvokeVoidDelegate<MvcHandler.ProcessRequestState> endDelegate = arg_71_0;
MvcHandler.ProcessRequestState invokeState = new MvcHandler.ProcessRequestState
{
AsyncController = asyncController,
Factory = factory,
RequestContext = this.RequestContext
};
SynchronizationContext synchronizationContext = SynchronizationContextUtil.GetSynchronizationContext();
return AsyncResultWrapper.Begin<MvcHandler.ProcessRequestState>(callback, state, beginDelegate, endDelegate, invokeState, MvcHandler._processRequestTag, -1, synchronizationContext);
}
Action action = delegate
{
try
{
controller.Execute(this.RequestContext);
}
finally
{
factory.ReleaseController(controller);
}
};
return AsyncResultWrapper.BeginSynchronous(callback, state, action, MvcHandler._processRequestTag);
}
/// <summary>Called by ASP.NET when asynchronous request processing has ended.</summary>
/// <param name="asyncResult">The asynchronous result.</param>
protected internal virtual void EndProcessRequest(IAsyncResult asyncResult)
{
AsyncResultWrapper.End(asyncResult, MvcHandler._processRequestTag);
}
private static string GetMvcVersionString()
{
return new AssemblyName(typeof(MvcHandler).Assembly.FullName).Version.ToString(2);
}
/// <summary>Processes the request by using the specified HTTP request context.</summary>
/// <param name="httpContext">The HTTP context.</param>
protected virtual void ProcessRequest(HttpContext httpContext)
{
HttpContextBase httpContext2 = new HttpContextWrapper(httpContext);
this.ProcessRequest(httpContext2);
}
/// <summary>Processes the request by using the specified base HTTP request context.</summary>
/// <param name="httpContext">The HTTP context.</param>
protected internal virtual void ProcessRequest(HttpContextBase httpContext)
{
IController controller;
IControllerFactory controllerFactory;
this.ProcessRequestInit(httpContext, out controller, out controllerFactory);
try
{
controller.Execute(this.RequestContext);
}
finally
{
controllerFactory.ReleaseController(controller);
}
}
private void ProcessRequestInit(HttpContextBase httpContext, out IController controller, out IControllerFactory factory)
{
HttpContext current = HttpContext.Current;
if (current != null)
{
bool? flag = ValidationUtility.IsValidationEnabled(current);
bool flag2 = true;
if (flag.GetValueOrDefault() == flag2 & flag.HasValue)
{
ValidationUtility.EnableDynamicValidation(current);
}
}
this.AddVersionHeader(httpContext);
this.RemoveOptionalRoutingParameters();
string requiredString = this.RequestContext.RouteData.GetRequiredString("controller");
factory = this.ControllerBuilder.GetControllerFactory();
controller = factory.CreateController(this.RequestContext, requiredString);
if (controller == null)
{
throw new InvalidOperationException(string.Format(CultureInfo.CurrentCulture, MvcResources.ControllerBuilder_FactoryReturnedNull, new object[]
{
factory.GetType(),
requiredString
}));
}
}
private void RemoveOptionalRoutingParameters()
{
IDictionary<string, object> arg_2F_0 = this.RequestContext.RouteData.Values;
Func<KeyValuePair<string, object>, bool> arg_2F_1;
if ((arg_2F_1 = MvcHandler.<>c.<>9__26_0) == null)
{
arg_2F_1 = (MvcHandler.<>c.<>9__26_0 = new Func<KeyValuePair<string, object>, bool>(MvcHandler.<>c.<>9.<RemoveOptionalRoutingParameters>b__26_0));
}
arg_2F_0.RemoveFromDictionary(arg_2F_1);
}
/// <summary>Enables processing of HTTP Web requests by a custom HTTP handler that implements the <see cref="T:System.Web.IHttpHandler" /> interface.</summary>
/// <param name="httpContext">An <see cref="T:System.Web.HttpContext" /> object that provides references to the intrinsic server objects (for example, Request, Response, Session, and Server) that are used to service HTTP requests.</param>
void IHttpHandler.ProcessRequest(HttpContext httpContext)
{
this.ProcessRequest(httpContext);
}
/// <summary>Called by ASP.NET to begin asynchronous request processing using the base HTTP context.</summary>
/// <returns>The status of the asynchronous call.</returns>
/// <param name="context">The HTTP context.</param>
/// <param name="cb">The asynchronous callback method.</param>
/// <param name="extraData">The data.</param>
IAsyncResult IHttpAsyncHandler.BeginProcessRequest(HttpContext context, AsyncCallback cb, object extraData)
{
return this.BeginProcessRequest(context, cb, extraData);
}
/// <summary>Called by ASP.NET when asynchronous request processing has ended.</summary>
/// <param name="result">The asynchronous result.</param>
void IHttpAsyncHandler.EndProcessRequest(IAsyncResult result)
{
this.EndProcessRequest(result);
}
}
}
HttpRuntime 調用 IHttpHandler 類型的調用 ProcessRequest() 方法，用于處理請求。
protected internal virtual void ProcessRequest(HttpContextBase httpContext)
{
IController controller;
IControllerFactory controllerFactory;
this.ProcessRequestInit(httpContext, out controller, out controllerFactory);創建 IControllerFactory，并創建 IController 對象。
try
{
controller.Execute(this.RequestContext);執行Controller，背后就是調用相應的 Action 方法。
}
finally
{
controllerFactory.ReleaseController(controller);
}
}
核心處理請求的方法是ProcessRequestInit()，用于創建 IController 和 IControllerFactory 實例。IControllerFactory 的實際類型是：DefaultControllerFactory，該類型用于創建 IController 類型的實例。
private void ProcessRequestInit(HttpContextBase httpContext, out IController controller, out IControllerFactory factory)
{
HttpContext current = HttpContext.Current;
if (current != null)
{
bool? flag = ValidationUtility.IsValidationEnabled(current);
bool flag2 = true;
if (flag.GetValueOrDefault() == flag2 & flag.HasValue)
{
ValidationUtility.EnableDynamicValidation(current);
}
}
this.AddVersionHeader(httpContext);
this.RemoveOptionalRoutingParameters();
string requiredString = this.RequestContext.RouteData.GetRequiredString("controller");
factory = this.ControllerBuilder.GetControllerFactory();
controller = factory.CreateController(this.RequestContext, requiredString);
if (controller == null)
{
throw new InvalidOperationException(string.Format(CultureInfo.CurrentCulture, MvcResources.ControllerBuilder_FactoryReturnedNull, new object[]
{
factory.GetType(),
requiredString
}));
}
}
以上加紅的代碼就是創建 IController 的實例的邏輯。IController 實例創建完成后，判斷是否實現了 IAsyncController 接口，如果是，就異步執行 Controller 方法的調用，否則就同步執行。
protected internal virtual IAsyncResult BeginProcessRequest(HttpContextBase httpContext, AsyncCallback callback, object state)
{
IController controller;
IControllerFactory factory;
this.ProcessRequestInit(httpContext, out controller, out factory);
IAsyncController asyncController = controller as IAsyncController; 判讀是否是需要異步執行
if (asyncController != null)異步執行
{
BeginInvokeDelegate<MvcHandler.ProcessRequestState> arg_51_0;
if ((arg_51_0 = MvcHandler.<>c.<>9__20_0) == null)
{
arg_51_0 = (MvcHandler.<>c.<>9__20_0 = new BeginInvokeDelegate<MvcHandler.ProcessRequestState>(MvcHandler.<>c.<>9.<BeginProcessRequest>b__20_0));
}
BeginInvokeDelegate<MvcHandler.ProcessRequestState> beginDelegate = arg_51_0;
EndInvokeVoidDelegate<MvcHandler.ProcessRequestState> arg_71_0;
if ((arg_71_0 = MvcHandler.<>c.<>9__20_1) == null)
{
arg_71_0 = (MvcHandler.<>c.<>9__20_1 = new EndInvokeVoidDelegate<MvcHandler.ProcessRequestState>(MvcHandler.<>c.<>9.<BeginProcessRequest>b__20_1));
}
EndInvokeVoidDelegate<MvcHandler.ProcessRequestState> endDelegate = arg_71_0;
MvcHandler.ProcessRequestState invokeState = new MvcHandler.ProcessRequestState
{
AsyncController = asyncController,
Factory = factory,
RequestContext = this.RequestContext
};
SynchronizationContext synchronizationContext = SynchronizationContextUtil.GetSynchronizationContext();
return AsyncResultWrapper.Begin<MvcHandler.ProcessRequestState>(callback, state, beginDelegate, endDelegate, invokeState, MvcHandler._processRequestTag, -1, synchronizationContext);
}
Action action = delegate//同步執行。
{
try
{
controller.Execute(this.RequestContext);
}
finally
{
factory.ReleaseController(controller);
}
};
return AsyncResultWrapper.BeginSynchronous(callback, state, action, MvcHandler._processRequestTag);
}
（3）、Action 執行模塊，通過 ControllerActionInvoker 調用 InvokeAction() 執行其方法。Action 方法的執行也有2個版本，一個是異步版本，一個是同步版本。由于 ActionInvoker 實現了 IAsyncActionInvoker 接口，所以也是以已方式執行。該類型是 AsyncControllerActionInvoker。
A、當Controller對象被創建之后，緊接著就會執行Controler 對象的 Execute()，其實背后就是調用 InvokeAction() 方法：
public virtual bool InvokeAction(ControllerContext controllerContext, string actionName)
{
if (controllerContext == null)
{
throw new ArgumentNullException("controllerContext");
}
if (string.IsNullOrEmpty(actionName) && !controllerContext.RouteData.HasDirectRouteMatch())
{
throw new ArgumentException(MvcResources.Common_NullOrEmpty, "actionName");
}
ControllerDescriptor controllerDescriptor = this.GetControllerDescriptor(controllerContext);
ActionDescriptor actionDescriptor = this.FindAction(controllerContext, controllerDescriptor, actionName);
if (actionDescriptor != null)
{
FilterInfo filters = this.GetFilters(controllerContext, actionDescriptor); 獲取所有過濾器，全局的、控制器的和方法的
try
{
AuthenticationContext authenticationContext = this.InvokeAuthenticationFilters(controllerContext, filters.AuthenticationFilters, actionDescriptor);認證過濾器的執行。
if (authenticationContext.Result != null)
{
AuthenticationChallengeContext authenticationChallengeContext = this.InvokeAuthenticationFiltersChallenge(controllerContext, filters.AuthenticationFilters, actionDescriptor, authenticationContext.Result);
this.InvokeActionResult(controllerContext, authenticationChallengeContext.Result ?? authenticationContext.Result);
}
else
{
AuthorizationContext authorizationContext = this.InvokeAuthorizationFilters(controllerContext, filters.AuthorizationFilters, actionDescriptor);授權過濾器的執行。
if (authorizationContext.Result != null)
{
AuthenticationChallengeContext authenticationChallengeContext2 = this.InvokeAuthenticationFiltersChallenge(controllerContext, filters.AuthenticationFilters, actionDescriptor, authorizationContext.Result);
this.InvokeActionResult(controllerContext, authenticationChallengeContext2.Result ?? authorizationContext.Result);
}
else
{
if (controllerContext.Controller.ValidateRequest)
{
ControllerActionInvoker.ValidateRequest(controllerContext);
}
IDictionary<string, object> parameterValues = this.GetParameterValues(controllerContext, actionDescriptor); 獲取方法執行參數。
ActionExecutedContext actionExecutedContext = this.InvokeActionMethodWithFilters(controllerContext, filters.ActionFilters, actionDescriptor, parameterValues); 執行action，同時執行執行方法前后的 IAcctionFilter
AuthenticationChallengeContext authenticationChallengeContext3 = this.InvokeAuthenticationFiltersChallenge(controllerContext, filters.AuthenticationFilters, actionDescriptor, actionExecutedContext.Result);
this.InvokeActionResultWithFilters(controllerContext, filters.ResultFilters, authenticationChallengeContext3.Result ?? actionExecutedContext.Result); 執行 ActionResult，同時執行方法前后的 IResultFilter
}
}
}
catch (ThreadAbortException)
{
throw;
}
catch (Exception exception)
{
ExceptionContext exceptionContext = this.InvokeExceptionFilters(controllerContext, filters.ExceptionFilters, exception);
if (!exceptionContext.ExceptionHandled)
{
throw;
}
this.InvokeActionResult(controllerContext, exceptionContext.Result);//異常過濾器的執行。
}
return true;
}
return false;
}
B、當選擇完合適的Action后，接著就是 ModelBinder（默認是System.Web.Mvc.DefaultModelBinder），它會從http請求的參數中提取數據并實現類型轉換，數據校驗（例如是否必填，數據格式等）以及是否自動裝配到action方法的參數中System.Web.Mvc.DefaultModelBinder
protected virtual IDictionary<string, object> GetParameterValues(ControllerContext controllerContext, ActionDescriptor actionDescriptor)
{
Dictionary<string, object> dictionary = new Dictionary<string, object>(StringComparer.OrdinalIgnoreCase);
ParameterDescriptor[] parameters = actionDescriptor.GetParameters();
for (int i = 0; i < parameters.Length; i++)
{
ParameterDescriptor parameterDescriptor = parameters[i];
dictionary[parameterDescriptor.ParameterName] = this.GetParameterValue(controllerContext, parameterDescriptor);
}
return dictionary;
}
protected virtual object GetParameterValue(ControllerContext controllerContext, ParameterDescriptor parameterDescriptor)
{
Type parameterType = parameterDescriptor.ParameterType;
IModelBinder arg_92_0 = this.GetModelBinder(parameterDescriptor);
IValueProvider valueProvider = controllerContext.Controller.ValueProvider;
string modelName = parameterDescriptor.BindingInfo.Prefix ?? parameterDescriptor.ParameterName;
Predicate<string> propertyFilter = ControllerActionInvoker.GetPropertyFilter(parameterDescriptor);
ModelBindingContext bindingContext = new ModelBindingContext
{
FallbackToEmptyPrefix = parameterDescriptor.BindingInfo.Prefix == null,
ModelMetadata = ModelMetadataProviders.Current.GetMetadataForType(null, parameterType),
ModelName = modelName,
ModelState = controllerContext.Controller.ViewData.ModelState,
PropertyFilter = propertyFilter,
ValueProvider = valueProvider
};
return arg_92_0.BindModel(controllerContext, bindingContext) ?? parameterDescriptor.DefaultValue;
}
C、Authentication Filter是mvc5中新增的一個Filter，它會先于authorization filter執行，目的是對訪問用戶的認證。在MVC5之前，認證和授權都是通過authorization filter來實現的，但現在這2個操作就分開來了，各自管各自嘍。
AuthenticationContext authenticationContext = this.InvokeAuthenticationFilters(controllerContext, filters.AuthenticationFilters, actionDescriptor);
if (authenticationContext.Result != null)
{
AuthenticationChallengeContext authenticationChallengeContext = this.InvokeAuthenticationFiltersChallenge(controllerContext, filters.AuthenticationFilters, actionDescriptor, authenticationContext.Result);
this.InvokeActionResult(controllerContext, authenticationChallengeContext.Result ?? authenticationContext.Result);
}
D、Action filters有2個方法OnActionExecuting和OnActionExecuted分別在action執行前后執行。我們也可以通過實現IActionFilter接口來實現你個性化的過濾機制
protected virtual ActionExecutedContext InvokeActionMethodWithFilters(ControllerContext controllerContext, IList<IActionFilter> filters, ActionDescriptor actionDescriptor, IDictionary<string, object> parameters)
{
ActionExecutingContext preContext = new ActionExecutingContext(controllerContext, actionDescriptor, parameters);
Func<ActionExecutedContext> seed = () => new ActionExecutedContext(controllerContext, actionDescriptor, false, null)
{
Result = this.InvokeActionMethod(controllerContext, actionDescriptor, parameters)
};
return filters.Reverse<IActionFilter>().Aggregate(seed, (Func<ActionExecutedContext> next, IActionFilter filter) => () => ControllerActionInvoker.InvokeActionMethodFilter(filter, preContext, next))();
}
E、接下來就是執行我們平時在Action方法中寫的代碼了（根據請求相應結果）
protected virtual ActionResult InvokeActionMethod(ControllerContext controllerContext, ActionDescriptor actionDescriptor, IDictionary<string, object> parameters)
{
object actionReturnValue = actionDescriptor.Execute(controllerContext, parameters);
return this.CreateActionResult(controllerContext, actionDescriptor, actionReturnValue);
}
（4）、ActionResult 執行模塊。
A、在 ActionResult 執行前后，仍然會有一個filter（IResultFilter），同樣的，通過實現 IResultFilter 接口你可以定制自己的過濾邏輯。
namespace System.Web.Mvc
{
/// <summary>Defines the methods that are required for a result filter.</summary>
public interface IResultFilter
{
/// <summary>Called before an action result executes.</summary>
/// <param name="filterContext">The filter context.</param>
void OnResultExecuting(ResultExecutingContext filterContext);
/// <summary>Called after an action result executes.</summary>
/// <param name="filterContext">The filter context.</param>
void OnResultExecuted(ResultExecutedContext filterContext);
}
}
B、ActionResult 就是把處理的用戶請求結果返回。因此 ViewResult, PartialViewResult, RedirectToRouteResult, RedirectResult, ContentResult, JsonResult, FileResult and EmptyResult就是具體的返回類型。
C、上面的返回類型可以大致分為2類：ViewResult 和非ViewResult。對于需要生成html頁面給客戶端的劃到ViewResult，而其他的例如返回文本，json數據等則劃分到非ViewResult，對于非ViewResult直接返回就可以了。
View的初始化和渲染呈現
A、對于 ViewResult 最終是由合適的 View Engine 通過調用 IView 的 Render() 方法來渲染的：
namespace System.Web.Mvc
{
/// <summary>Defines the methods that are required for a view engine.</summary>
public interface IViewEngine
{
/// <summary>Finds the specified partial view by using the specified controller context.</summary>
/// <returns>The partial view.</returns>
/// <param name="controllerContext">The controller context.</param>
/// <param name="partialViewName">The name of the partial view.</param>
/// <param name="useCache">true to specify that the view engine returns the cached view, if a cached view exists; otherwise, false.</param>
ViewEngineResult FindPartialView(ControllerContext controllerContext, string partialViewName, bool useCache);
/// <summary>Finds the specified view by using the specified controller context.</summary>
/// <returns>The page view.</returns>
/// <param name="controllerContext">The controller context.</param>
/// <param name="viewName">The name of the view.</param>
/// <param name="masterName">The name of the master.</param>
/// <param name="useCache">true to specify that the view engine returns the cached view, if a cached view exists; otherwise, false.</param>
ViewEngineResult FindView(ControllerContext controllerContext, string viewName, string masterName, bool useCache);
/// <summary>Releases the specified view by using the specified controller context.</summary>
/// <param name="controllerContext">The controller context.</param>
/// <param name="view">The view.</param>
void ReleaseView(ControllerContext controllerContext, IView view);
}
}
namespace System.Web.Mvc
{
/// <summary>Defines the methods that are required for a view.</summary>
public interface IView
{
/// <summary>Renders the specified view context by using the specified the writer object.</summary>
/// <param name="viewContext">The view context.</param>
/// <param name="writer">The writer object.</param>
void Render(ViewContext viewContext, TextWriter writer);
}
}
B、整個處理過程是由 IViewEngine 來實現的。ASP.NET MVC 默認提供 WebForm（.aspx）和 Razor(.cshtml) 模板引擎，你可以通過實現 IViewEngine 接口來實現自己的 ViewEngine，然后在Application_Start方法中做如下注冊：
protected void Application_Start()
{
//移除所有的View引擎包括Webform和Razor
ViewEngines.Engines.Clear();
//注冊你自己的View引擎
ViewEngines.Engines.Add(new CustomViewEngine());
}
C、最后，Html Helpers將幫我們生成 input 標簽，基于AJAX的 form 等等。
（5）、作為總結，將每個節點主要的代碼類貼出來。
這就是整個流程的代碼節點，有些是同步執行，有些是異步執行，把握關鍵點，我這里只是謝了一個大概。
UrlRoutingModule-----RouteCollection.GetRouteData(context)----->IRouteHandler routeHandler = routeData.RouteHandler------》IHttpHandler httpHandler = routeHandler.GetHttpHandler(requestContext)-----》context.RemapHandler(httpHandler)------->MvcHandler------->ProcessRequest()------>ProcessRequestInit()--------》IController------>controller.Execute(this.RequestContext)-------->ControllerActionInvoker------->InvoleAction()--------->InvoleActionMethod()------->InvoleActionReslt()
三、結束
今天就到這里了，東西雖然不多，但是也寫了2個多小時。今天就算自己有學習了一邊，大家一定要好好的把握這個流程，對于解決程序中的問題，擴展框架都有很大的好處。我們作為程序員的，應該要知道其一，也要知道其二。沒事，看看源碼，我們對框架和我們自己的代碼有更深的了解。當然，這樣做也是有代價的，需要更多的時間去支持，我相信我們的付出是值得。不忘初心，繼續努力。老天不會辜負努力的人。
到此這篇關于詳解ASP.NET MVC的整個生命周期的文章就介紹到這了,更多相關ASP.NET MVC 生命周期內容請搜索服務器之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持服務器之家！
原文鏈接：https://www.cnblogs.com/PatrickLiu/p/15175388.html
