指紋驗證這個功能現在在一些app中經常常見，常常與數字解鎖，手勢解鎖聯合起來使用。前幾天接到說實現一個指紋驗證的功能，搗鼓了挺久，然后今天，我就簡單的介紹下指紋驗證，會做個簡單的demo實現一下基本的功能。
支持系統和機型：ios系統的指紋識別功能最低支持的機型為iphone 5s，最低支持系統為ios 8。實現起來呢，其實還是很簡單的，下面我們就用純代碼方式實現一個簡單的demo1。
第一部分：調用原生服務實現指紋驗證
這部分了解個大概就可以了

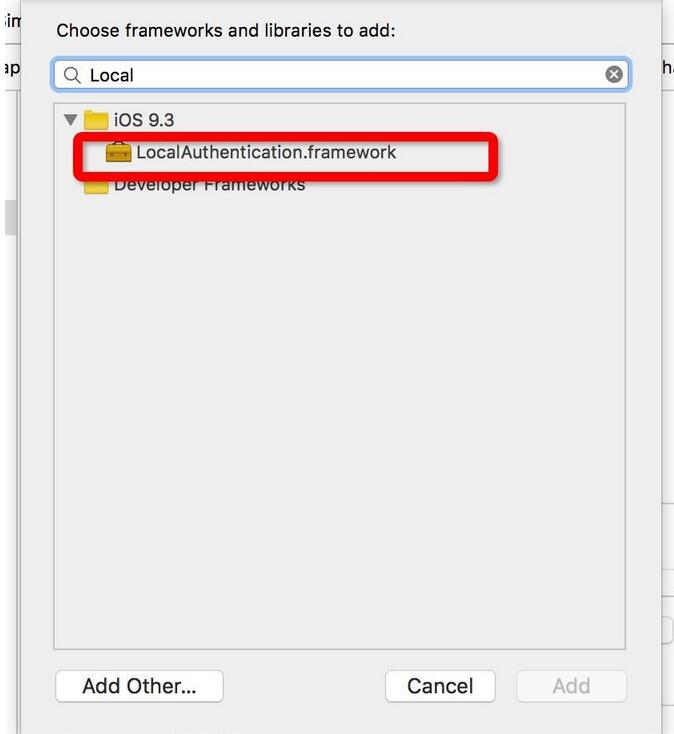

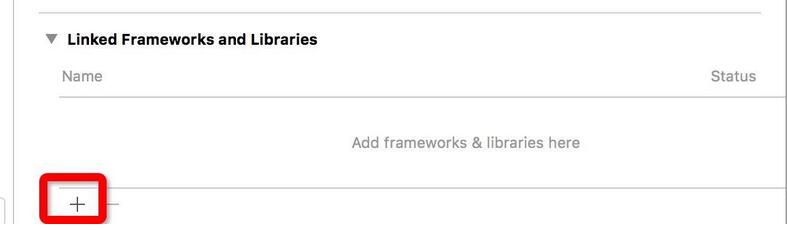

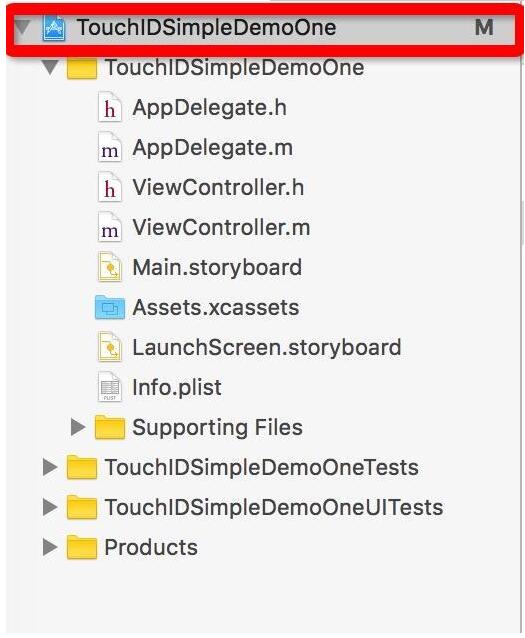

第一步：添加localauthentication.framework庫
第二步：在appdelegate.m中添加代碼
這個不說其實大家也都知道的吧。
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
|
#import "appdelegate.h"#import "viewcontroller.h"@interface appdelegate ()@end@implementation appdelegate- (bool)application:(uiapplication *)application didfinishlaunchingwithoptions:(nsdictionary *)launchoptions { //appdelegate _window = [[uiwindow alloc]initwithframe:[uiscreen mainscreen].bounds]; _window.backgroundcolor = [uicolor whitecolor]; [_window makekeyandvisible]; viewcontroller *vc = [[viewcontroller alloc]init]; uinavigationcontroller *na = [[uinavigationcontroller alloc]initwithrootviewcontroller:vc]; _window.rootviewcontroller = na; return yes;} |
第三步
引入頭文件
#import <localauthentication/localauthentication.h>
第四步：實現指紋驗證
這一步就是很重要的地方了，在- (void)viewdidload中寫入驗證實現的代碼，這里只有兩步，因?yàn)閘acontext在官方文檔中只有兩個方法:
|
1
2
3
4
5
|
-canevaluatepolicy:error: //-(bool)canevaluatepolicy:(lapolicy)policy error:(nserror * __autoreleasing *)error __attribute__((swift_error(none))); -evaluatepolicy:localizedreason:reply: //- (void)evaluatepolicy:(lapolicy)policy localizedreason:(nsstring *)localizedreason reply:(void(^)(bool success, nserror * __nullable error))reply; |
一個是判斷設備是否支持touchid，一個是進行驗證返回不同的結果，之前在網上經常可以一些文章中寫了，指紋驗證的第一步都是先判斷設備的系統版本等等，現在似乎都不需要了，只要調用該方法就可以了。全部的代碼 如下：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
|
- (void)viewdidload { [super viewdidload]; self.title = @"touchidsimpledemoone"; lacontext *context = [[lacontext alloc]init]; nserror *error; nsstring *result = @"需要你身份驗證呢"; if ([context canevaluatepolicy:lapolicydeviceownerauthenticationwithbiometrics error:&error]) { [context evaluatepolicy:lapolicydeviceownerauthenticationwithbiometrics localizedreason:result reply:^(bool success, nserror *error) { if (success) { //驗證成功，主線程處理ui //這個地方呢就是寫一些驗證成功之后需要做些什么事情的代碼。 nslog(@"驗證成功"); } else { //以下是一些驗證失敗的原因啥的 nslog(@"%@",error.localizeddescription); switch (error.code) { case laerrorsystemcancel: { nslog(@"切換到其他app，系統取消驗證touch id"); //切換到其他app，系統取消驗證touch id break; } case laerrorusercancel: { nslog(@"用戶取消驗證touch id"); //用戶取消驗證touch id break; } case laerroruserfallback: { nslog(@"用戶選擇輸入密碼"); [[nsoperationqueue mainqueue] addoperationwithblock:^{ //用戶選擇其他驗證方式，切換主線程處理 }]; break; } default: { nslog(@"laerrorauthenticationfailed，授權失敗"); //授權失敗 [[nsoperationqueue mainqueue] addoperationwithblock:^{ //其他情況，切換主線程處理 }]; break; } } } }]; }else { //不支持指紋識別，log出錯誤詳情 switch (error.code) { case laerrortouchidnotenrolled: { nslog(@"設備touch id不可用，用戶未錄入"); break; } case laerrorpasscodenotset: { nslog(@"系統未設置密碼"); break; } case laerrortouchidnotavailable: { nslog(@"設備touch id不可用，例如未打開"); break; } default: { nslog(@"系統未設置密碼"); break; } } nslog(@"%@",error.localizeddescription); } } |
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
|
//指紋驗證返回值typedef ns_enum(nsinteger, laerror){ /// authentication was not successful, because user failed to provide valid credentials. laerrorauthenticationfailed = klaerrorauthenticationfailed, /// authentication was canceled by user (e.g. tapped cancel button). laerrorusercancel = klaerrorusercancel, /// authentication was canceled, because the user tapped the fallback button (enter password). laerroruserfallback = klaerroruserfallback, /// authentication was canceled by system (e.g. another application went to foreground). laerrorsystemcancel = klaerrorsystemcancel, /// authentication could not start, because passcode is not set on the device. laerrorpasscodenotset = klaerrorpasscodenotset, /// authentication could not start, because touch id is not available on the device. laerrortouchidnotavailable = klaerrortouchidnotavailable, /// authentication could not start, because touch id has no enrolled fingers. laerrortouchidnotenrolled = klaerrortouchidnotenrolled, /// authentication was not successful, because there were too many failed touch id attempts and /// touch id is now locked. passcode is required to unlock touch id, e.g. evaluating /// lapolicydeviceownerauthenticationwithbiometrics will ask for passcode as a prerequisite. laerrortouchidlockout ns_enum_available(10_11, 9_0) = klaerrortouchidlockout, /// authentication was canceled by application (e.g. invalidate was called while /// authentication was in progress). laerrorappcancel ns_enum_available(10_11, 9_0) = klaerrorappcancel, /// lacontext passed to this call has been previously invalidated. laerrorinvalidcontext ns_enum_available(10_11, 9_0) = klaerrorinvalidcontext} ns_enum_available(10_10, 8_0); |
以上呢，就是一個簡單的demo了，可能有些小問題，到時候需要的話可以自調整。這里附上這個demo的guithub鏈接看這里看這里，鏈接在這呢。
第二部分：利用現有的第三方組件實現
這個部分可以好好學習一下。
在這里呢，我要推薦一個別人寫的一個第三方的組件，就是[wjtouchid](https://github.com/hu670014125/wjtouchid);這個控件的話，在這個鏈接上其實已經有寫出怎么用了，其實不需要我再都說什么，但是我還是要說下吧。
調用時只需要一兩行代碼調用，但是回調函數還是需要寫不少東西的。
1:復制文件進去
2:引入頭文件
#import "wjtouchid.h"
3:遵守協議
@interface viewcontroller ()<wjtouchiddelegate>
4: 創建對象
@property (nonatomic, strong) wjtouchid *touchid;
5:調用
|
1
2
3
4
5
6
7
|
- (void)viewdidload { [super viewdidload]; //初始化 wjtouchid *touchid = [[wjtouchid alloc]init]; [touchid startwjtouchidwithmessage:wjnotice(@"自定義信息", @"the custom message") fallbacktitle:wjnotice(@"", @"fallback title") delegate:self]; self.touchid = touchid;} |
6:實現回調函數
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
|
@required //touchid驗證成功- (void)wjtouchidauthorizesuccess; //touchid驗證失敗- (void)wjtouchidauthorizefailure;@optional //當前設備不支持指紋識別- (void)wjtouchidisnotsupport; //當前軟件被掛起取消了授權(如突然來了電話,應用進入前臺)- (void)wjtouchidauthorizeerrorappcancel; //取消touchid驗證 (用戶點擊了取消)- (void)wjtouchidauthorizeerrorusercancel; //在touchid對話框中點擊輸入密碼按鈕- (void)wjtouchidauthorizeerroruserfallback; //在驗證的touchid的過程中被系統取消 例如突然來電話、按了home鍵、鎖屏...- (void)wjtouchidauthorizeerrorsystemcancel; //無法啟用touchid,設備沒有設置密碼- (void)wjtouchidauthorizeerrorpasscodenotset; //多次連續使用touch id失敗，touch id被鎖，需要用戶輸入密碼解鎖- (void)wjtouchidauthorizeerrortouchidlockout; //當前軟件被掛起取消了授權 (授權過程中,lacontext對象被釋)- (void)wjtouchidauthorizeerrorinvalidcontext; //設備沒有錄入touchid,無法啟用touchid- (void)wjtouchidauthorizeerrortouchidnotenrolled; //該設備的touchid無效- (void)wjtouchidauthorizeerrortouchidnotavailable; |
這些方法實現結束后呢，這個功能也基本上算是完成了。因?yàn)楹孟衿L了，看得人肯定也嫌煩，所以我準備另寫一篇做一個在app被喚醒的時候啟動指紋驗證，分別用彈出控制器和彈出自定義view這兩個方式來實現，感興趣的話可以看下。
以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持服務器之家。
