引言

語音端點檢測最早應用于電話傳輸和檢測系統當中,用于通信信道的時間分配,提高傳輸線路的利用效率.端點檢測屬于語音處理系統的前端操作,在語音檢測領域意義重大.

但是目前的語音端點檢測,尤其是檢測人聲開始和結束的端點始終是屬于技術難點,各家公司始終處于能判斷,但是不敢保證判別準確性的階段.

詳解python的webrtc庫實現語音端點檢測

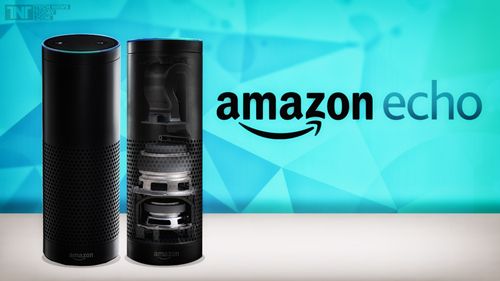

現在基于云端語義庫的聊天機器人層出不窮,其中最著名的當屬amazon的 Alexa/Echo 智能音箱.

詳解python的webrtc庫實現語音端點檢測

國內如雨后春筍般出現了各種搭載語音聊天的智能音箱(如前幾天在知乎上廣告的若琪機器人)和各類智能機器人產品.國內語音服務提供商主要面對中文語音服務,由于語音不像圖像有分辨率等等較為客觀的指標,很多時候憑主觀判斷,所以較難判斷各家語音識別和合成技術的好壞.但是我個人認為,國內的中文語音服務和國外的英文語音服務,在某些方面已經有超越的趨勢.

詳解python的webrtc庫實現語音端點檢測

通常搭建機器人聊天系統主要包括以下三個方面:

語音轉文字(ASR/STT)
語義內容(NLU/NLP)
文字轉語音(TTS)

語音轉文字(ASR/STT)

在將語音傳給云端API之前,是本地前端的語音采集,這部分主要包括如下幾個方面:

麥克風降噪
聲源定位
回聲消除
喚醒詞
語音端點檢測
音頻格式壓縮

python 端點檢測

由于實際應用中,單純依靠能量檢測特征檢測等方法很難判斷人聲說話的起始點,所以市面上大多數的語音產品都是使用喚醒詞判斷語音起始.另外加上聲音回路,還可以做語音打斷.這樣的交互方式可能有些傻,每次必須喊一下喚醒詞才能繼續聊天.這種方式聊多了,個人感覺會嘴巴疼:-O .現在github上有snowboy喚醒詞的開源庫,大家可以登錄snowboy官網訓練自己的喚醒詞模型.

Kitt-AI : Snowboy
Sensory : Sensory

考慮到用喚醒詞嘴巴會累,所以大致調研了一下,Python擁有豐富的庫,直接import就能食用.這種方式容易受強噪聲干擾,適合一個人在家玩玩.

pyaudio: pip install pyaudio 可以從設備節點讀取原始音頻流數據,音頻編碼是PCM格式;
webrtcvad: pip install webrtcvad 檢測判斷一組語音數據是否為空語音;

當檢測到持續時間長度 T1 vad檢測都有語音活動,可以判定為語音起始;

當檢測到持續時間長度 T2 vad檢測都沒有有語音活動,可以判定為語音結束;

完整程序代碼可以從我的github下載

程序很簡單,相信看一會兒就明白了

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

									'''

									Requirements:

									+ pyaudio - `pip install pyaudio`

									+ py-webrtcvad - `pip install webrtcvad`

									'''

									import webrtcvad

									import collections

									import sys

									import signal

									import pyaudio

									from array import array

									from struct import pack

									import wave

									import time

									FORMAT = pyaudio.paInt16

									CHANNELS = 1

									RATE = 16000

									CHUNK_DURATION_MS = 30    # supports 10, 20 and 30 (ms)

									PADDING_DURATION_MS = 1500  # 1 sec jugement

									CHUNK_SIZE = int(RATE CHUNK_DURATION_MS / 1000) # chunk to read

									CHUNK_BYTES = CHUNK_SIZE 2 # 16bit = 2 bytes, PCM

									NUM_PADDING_CHUNKS = int(PADDING_DURATION_MS / CHUNK_DURATION_MS)

									# NUM_WINDOW_CHUNKS = int(240 / CHUNK_DURATION_MS)

									NUM_WINDOW_CHUNKS = int(400 / CHUNK_DURATION_MS) # 400 ms/ 30ms ge

									NUM_WINDOW_CHUNKS_END = NUM_WINDOW_CHUNKS 2

									START_OFFSET = int(NUM_WINDOW_CHUNKS CHUNK_DURATION_MS 0.5 RATE)

									vad = webrtcvad.Vad(1)

									pa = pyaudio.PyAudio()

									stream = pa.open(format=FORMAT,

									         channels=CHANNELS,

									         rate=RATE,

									         input=True,

									         start=False,

									         # input_device_index=2,

									         frames_per_buffer=CHUNK_SIZE)

									got_a_sentence = False

									leave = False

									def handle_int(sig, chunk):

									  global leave, got_a_sentence

									  leave = True

									  got_a_sentence = True

									def record_to_file(path, data, sample_width):

									  "Records from the microphone and outputs the resulting data to 'path'"

									  # sample_width, data = record()

									  data = pack('<' + ('h' len(data)), data)

									  wf = wave.open(path, 'wb')

									  wf.setnchannels(1)

									  wf.setsampwidth(sample_width)

									  wf.setframerate(RATE)

									  wf.writeframes(data)

									  wf.close()

									def normalize(snd_data):

									  "Average the volume out"

									  MAXIMUM = 32767 # 16384

									  times = float(MAXIMUM) / max(abs(i) for i in snd_data)

									  r = array('h')

									  for i in snd_data:

									    r.append(int(i times))

									  return r

									signal.signal(signal.SIGINT, handle_int)

									while not leave:

									  ring_buffer = collections.deque(maxlen=NUM_PADDING_CHUNKS)

									  triggered = False

									  voiced_frames = []

									  ring_buffer_flags = [0] NUM_WINDOW_CHUNKS

									  ring_buffer_index = 0

									  ring_buffer_flags_end = [0] NUM_WINDOW_CHUNKS_END

									  ring_buffer_index_end = 0

									  buffer_in = ''

									  # WangS

									  raw_data = array('h')

									  index = 0

									  start_point = 0

									  StartTime = time.time()

									  print(" recording: ")

									  stream.start_stream()

									  while not got_a_sentence and not leave:

									    chunk = stream.read(CHUNK_SIZE)

									    # add WangS

									    raw_data.extend(array('h', chunk))

									    index += CHUNK_SIZE

									    TimeUse = time.time() - StartTime

									    active = vad.is_speech(chunk, RATE)

									    sys.stdout.write('1' if active else '_')

									    ring_buffer_flags[ring_buffer_index] = 1 if active else 0

									    ring_buffer_index += 1

									    ring_buffer_index %= NUM_WINDOW_CHUNKS

									    ring_buffer_flags_end[ring_buffer_index_end] = 1 if active else 0

									    ring_buffer_index_end += 1

									    ring_buffer_index_end %= NUM_WINDOW_CHUNKS_END

									    # start point detection

									    if not triggered:

									      ring_buffer.append(chunk)

									      num_voiced = sum(ring_buffer_flags)

									      if num_voiced > 0.8 NUM_WINDOW_CHUNKS:

									        sys.stdout.write(' Open ')

									        triggered = True

									        start_point = index - CHUNK_SIZE 20 # start point

									        # voiced_frames.extend(ring_buffer)

									        ring_buffer.clear()

									    # end point detection

									    else:

									      # voiced_frames.append(chunk)

									      ring_buffer.append(chunk)

									      num_unvoiced = NUM_WINDOW_CHUNKS_END - sum(ring_buffer_flags_end)

									      if num_unvoiced > 0.90 NUM_WINDOW_CHUNKS_END or TimeUse > 10:

									        sys.stdout.write(' Close ')

									        triggered = False

									        got_a_sentence = True

									    sys.stdout.flush()

									  sys.stdout.write('\n')

									  # data = b''.join(voiced_frames)

									  stream.stop_stream()

									  print(" done recording")

									  got_a_sentence = False

									  # write to file

									  raw_data.reverse()

									  for index in range(start_point):

									    raw_data.pop()

									  raw_data.reverse()

									  raw_data = normalize(raw_data)

									  record_to_file("recording.wav", raw_data, 2)

									  leave = True

									stream.close()
