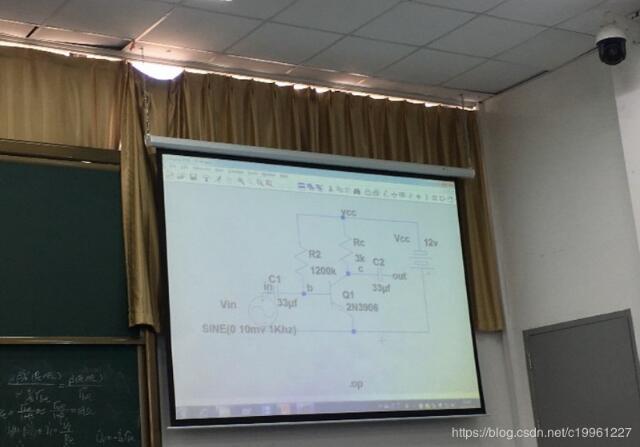

改編自詳解利用OpenCV提取圖像中的矩形區域（PPT屏幕等）原文是c++版，我改成了python版，供大家參考學習。

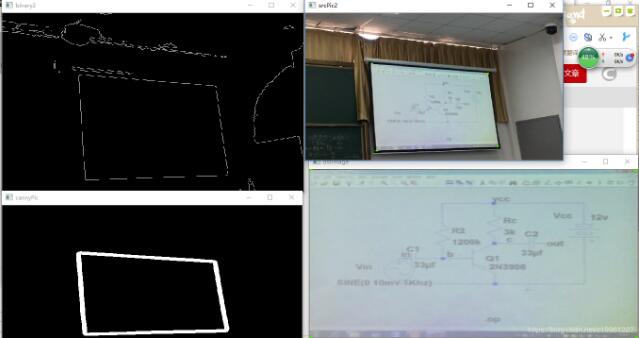

主要思想：邊緣檢測—》輪廓檢測—》找出最大的面積的輪廓—》找出頂點—》投影變換

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

									import numpy as np

									import cv2

									# 這個成功的扣下了ppt白板

									srcPic = cv2.imread('2345.jpg')

									length=srcPic.shape[0]

									depth=srcPic.shape[1]

									polyPic = srcPic

									shrinkedPic = srcPic

									greyPic = cv2.cvtColor(shrinkedPic, cv2.COLOR_BGR2GRAY)

									ret, binPic = cv2.threshold(greyPic, 130, 255, cv2.THRESH_BINARY)

									print(binPic.shape)

									median = cv2.medianBlur(binPic, 5)

									# 進行邊緣檢測

									cannyPic = cv2.Canny(median, 10, 200)

									cv2.namedWindow("binary", 0)

									cv2.namedWindow("binary2", 0)

									cv2.imshow("binary", cannyPic)

									# 找出輪廓

									contours, hierarchy = cv2.findContours(cannyPic, cv2.RETR_CCOMP, cv2.CHAIN_APPROX_SIMPLE)

									cv2.imwrite('binary2.png', cannyPic)

									cv2.imshow("binary2", cannyPic)

									i = 0

									maxArea = 0

									# 挨個檢查看那個輪廓面積最大

									for i in range(len(contours)):

									 if cv2.contourArea(contours[i]) > cv2.contourArea(contours[maxArea]):

									 maxArea = i

									#檢查輪廓得到分布在四個角上的點

									hull = cv2.convexHull(contours[maxArea])

									s = [[1,2]]

									z = [[2,3]]

									for i in hull:

									 s.append([i[0][0],i[0][1]])

									 z.append([i[0][0],i[0][1]])

									del s[0]

									del z[0]

									#現在的目標是從一堆點中挑出分布在四個角落的點，決定把圖片分為四等份，每個區域的角度來劃分點，

									#默認四個角分別分布在圖像的四等分的區間上，也就是矩形在圖像中央

									# 我們把所有點的坐標，都減去圖片中央的那個點（當成原點），然后按照x y坐標值的正負 判斷屬于哪一個區間

									center=[length/2,depth/2]

									# 可以得到小數

									for i in range(len(s)):

									 s[i][0] = s[i][0] - center[0]

									 s[i][1] = s[i][1] - center[1]

									one = []

									two = []

									three = []

									four = []

									# 判斷是那個區間的

									for i in range(len(z)):

									 if s[i][0] <= 0 and s[i][1] <0 :

									 one.append(i)

									 elif s[i][0] > 0 and s[i][1] <0 :

									 two.append(i)

									 elif s[i][0] >= 0 and s[i][1] > 0:

									 four.append(i)

									 else:three.append(i)

									p=[]

									distance=0

									temp = 0

									# 下面開始判斷每個區間的極值,要選擇距離中心點最遠的點，就是角點

									for i in one :

									 x=z[i][0]-center[0]

									 y=z[i][1]-center[1]

									 d=x*x+y*y

									 if d > distance :

									 temp = i

									 distance = d

									p.append([z[temp][0],z[temp][1]])

									distance=0

									temp=0

									for i in two :

									 x=z[i][0]-center[0]

									 y=z[i][1]-center[1]

									 d=x*x+y*y

									 if d > distance :

									 temp = i

									 distance = d

									p.append([z[temp][0],z[temp][1]])

									distance=0

									temp=0

									for i in three :

									 x=z[i][0]-center[0]

									 y=z[i][1]-center[1]

									 d=x*x+y*y

									 if d > distance :

									 temp = i

									 distance = d

									p.append([z[temp][0],z[temp][1]])

									distance=0

									temp=0

									for i in four :

									 x=z[i][0]-center[0]

									 y=z[i][1]-center[1]

									 d=x*x+y*y

									 if d > distance :

									 temp = i

									 distance = d

									p.append([z[temp][0],z[temp][1]])

									for i in p:

									 cv2.circle(polyPic, (i[0],i[1]),2,(0,255,0),2)

									# 給四個點排一下順序

									a=[]

									b=[]

									st=[]

									for i in p:

									 a.append(i[0])

									 b.append(i[1])

									index=np.lexsort((b, a))

									for i in index:

									 st.append(p[i])

									p = st

									print(p)

									pts1 = np.float32([[p[0][0],p[0][1]],[p[1][0],p[1][1]],[p[2][0],p[2][1]],[p[3][0],p[3][1]]])

									# dst=np.float32([[0,0],[0,srcPic.shape[1]],[srcPic.shape[0],0],[srcPic.shape[0],srcPic.shape[1]]])

									dst=np.float32([[0,0],[0,600],[400,0],[400,600]])

									# 投影變換

									M = cv2.getPerspectiveTransform(pts1,dst)

									cv2.namedWindow("srcPic2", 0)

									cv2.imshow("srcPic2", srcPic)

									#dstImage = cv2.warpPerspective(srcPic,M,(srcPic.shape[0],srcPic.shape[1]))

									dstImage = cv2.warpPerspective(srcPic,M,(400,600))

									# 在原圖上畫出紅色的檢測痕跡，先生成一個黑色圖

									black = np.zeros((shrinkedPic.shape[0], shrinkedPic.shape[1]), dtype=np.uint8)

									# 二值圖轉為三通道圖

									black3 = cv2.merge([black, black, black])

									# black=black2

									cv2.drawContours(black, contours, maxArea, 255, 11)

									cv2.drawContours(black3, contours, maxArea, (255, 0, 0), 11)

									cv2.imwrite('cv.png', black)

									cv2.namedWindow("cannyPic", 0)

									cv2.imshow("cannyPic", black)

									cv2.namedWindow("shrinkedPic", 0)

									cv2.imshow("shrinkedPic", polyPic)

									cv2.namedWindow("dstImage", 0)

									cv2.imshow("dstImage", dstImage)

									# 等待一個按下鍵盤事件

									cv2.waitKey(0)
