前言
圖片驗證碼在我們?nèi)粘ｉ_發中是必不可少會遇見的一個功能，最近工作中就遇到了這個需求，所以下面將實現的方法分享給大家，話不多說了，來一起看看詳細的介紹吧。
.NET Core 2.0生成圖片驗證碼

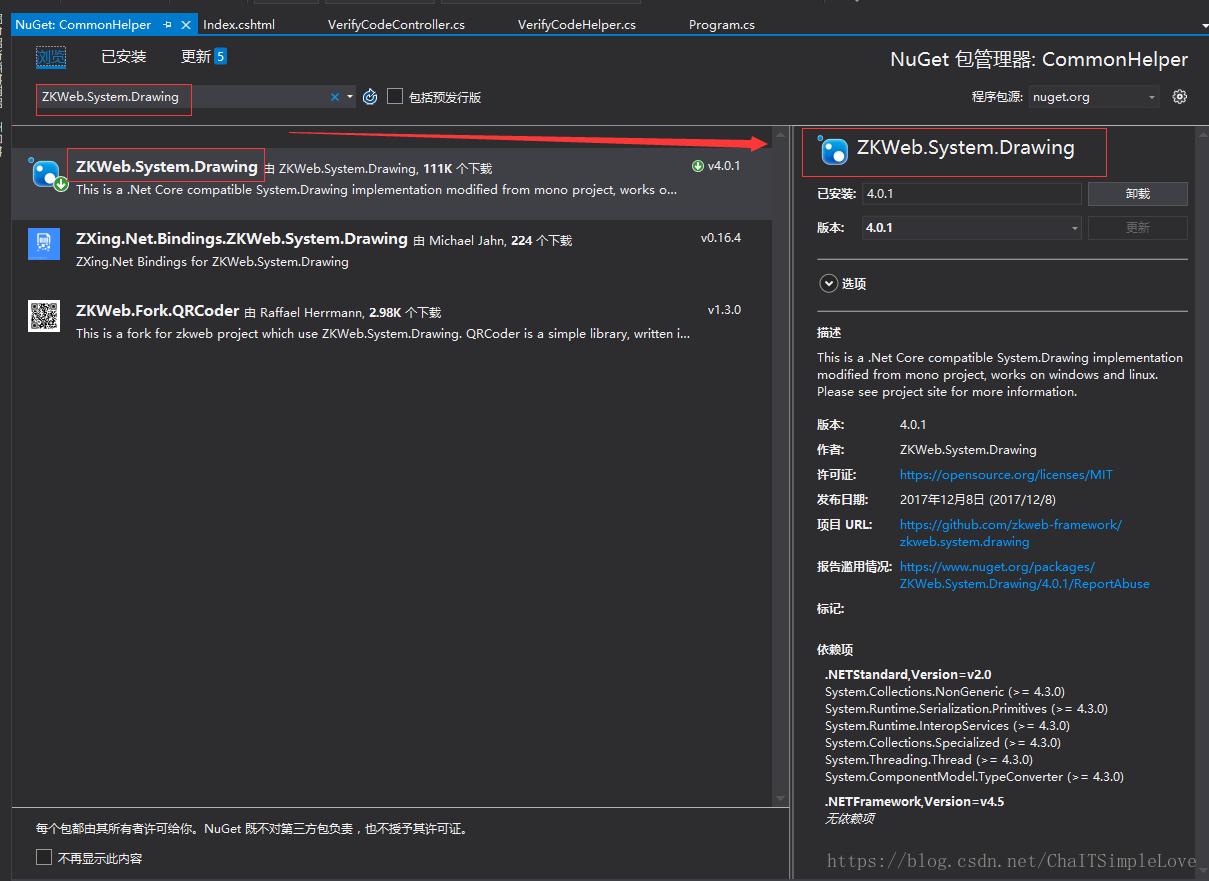

NuGet包引入：ZKWeb.System.Drawing，如下所示：
代碼實例如下：VerifyCodeHelper
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
|
using System;using System.DrawingCore;using System.DrawingCore.Drawing2D;using System.DrawingCore.Imaging;using System.IO; namespace Common.Helper{ public sealed class VerifyCodeHelper { #region 單例模式 //創建私有化靜態obj鎖 private static readonly object _ObjLock = new object(); //創建私有靜態字段，接收類的實例化對象 private static VerifyCodeHelper _VerifyCodeHelper = null; //構造函數私有化 private VerifyCodeHelper() { } //創建單利對象資源并返回 public static VerifyCodeHelper GetSingleObj() { if (_VerifyCodeHelper == null) { lock (_ObjLock) { if (_VerifyCodeHelper == null) _VerifyCodeHelper = new VerifyCodeHelper(); } } return _VerifyCodeHelper; } #endregion #region 生產驗證碼 public enum VerifyCodeType { NumberVerifyCode, AbcVerifyCode, MixVerifyCode }; /// <summary> /// 1.數字驗證碼 /// </summary> /// <param name="length"></param> /// <returns></returns> private string CreateNumberVerifyCode(int length) { int[] randMembers = new int[length]; int[] validateNums = new int[length]; string validateNumberStr = ""; //生成起始序列值 int seekSeek = unchecked((int)DateTime.Now.Ticks); Random seekRand = new Random(seekSeek); int beginSeek = seekRand.Next(0, Int32.MaxValue - length * 10000); int[] seeks = new int[length]; for (int i = 0; i < length; i++) { beginSeek += 10000; seeks[i] = beginSeek; } //生成隨機數字 for (int i = 0; i < length; i++) { Random rand = new Random(seeks[i]); int pownum = 1 * (int)Math.Pow(10, length); randMembers[i] = rand.Next(pownum, Int32.MaxValue); } //抽取隨機數字 for (int i = 0; i < length; i++) { string numStr = randMembers[i].ToString(); int numLength = numStr.Length; Random rand = new Random(); int numPosition = rand.Next(0, numLength - 1); validateNums[i] = Int32.Parse(numStr.Substring(numPosition, 1)); } //生成驗證碼 for (int i = 0; i < length; i++) { validateNumberStr += validateNums[i].ToString(); } return validateNumberStr; } /// <summary> /// 2.字母驗證碼 /// </summary> /// <param name="length">字符長度</param> /// <returns>驗證碼字符</returns> private string CreateAbcVerifyCode(int length) { char[] verification = new char[length]; char[] dictionary = { 'A', 'B', 'C', 'D', 'E', 'F', 'G', 'H', 'I', 'J', 'K', 'L', 'M', 'N', 'O', 'P', 'Q', 'R', 'S', 'T', 'U', 'V', 'W', 'X', 'Y', 'Z', 'a', 'b', 'c', 'd', 'e', 'f', 'g', 'h', 'i', 'j', 'k', 'l', 'm', 'n', 'o', 'p', 'q', 'r', 's', 't', 'u', 'v', 'w', 'x', 'y', 'z' }; Random random = new Random(); for (int i = 0; i < length; i++) { verification[i] = dictionary[random.Next(dictionary.Length - 1)]; } return new string(verification); } /// <summary> /// 3.混合驗證碼 /// </summary> /// <param name="length">字符長度</param> /// <returns>驗證碼字符</returns> private string CreateMixVerifyCode(int length) { char[] verification = new char[length]; char[] dictionary = { 'A', 'B', 'C', 'D', 'E', 'F', 'G', 'H', 'I', 'J', 'K', 'L', 'M', 'N', 'O', 'P', 'Q', 'R', 'S', 'T', 'U', 'V', 'W', 'X', 'Y', 'Z', '0', '1', '2', '3', '4', '5', '6', '7', '8', '9', 'a', 'b', 'c', 'd', 'e', 'f', 'g', 'h', 'i', 'j', 'k', 'l', 'm', 'n', 'o', 'p', 'q', 'r', 's', 't', 'u', 'v', 'w', 'x', 'y', 'z' }; Random random = new Random(); for (int i = 0; i < length; i++) { verification[i] = dictionary[random.Next(dictionary.Length - 1)]; } return new string(verification); } /// <summary> /// 產生驗證碼（隨機產生4-6位） /// </summary> /// <param name="type">驗證碼類型：數字，字符，符合</param> /// <returns></returns> public string CreateVerifyCode(VerifyCodeType type) { string verifyCode = string.Empty; Random random = new Random(); int length = random.Next(4, 6); switch (type) { case VerifyCodeType.NumberVerifyCode: verifyCode = GetSingleObj().CreateNumberVerifyCode(length); break; case VerifyCodeType.AbcVerifyCode: verifyCode = GetSingleObj().CreateAbcVerifyCode(length); break; case VerifyCodeType.MixVerifyCode: verifyCode = GetSingleObj().CreateMixVerifyCode(length); break; } return verifyCode; } #endregion #region 驗證碼圖片 /// <summary> /// 驗證碼圖片 => Bitmap /// </summary> /// <param name="verifyCode">驗證碼</param> /// <param name="width">寬</param> /// <param name="height">高</param> /// <returns>Bitmap</returns> public Bitmap CreateBitmapByImgVerifyCode(string verifyCode, int width, int height) { Font font = new Font("Arial", 14, (FontStyle.Bold | FontStyle.Italic)); Brush brush; Bitmap bitmap = new Bitmap(width, height); Graphics g = Graphics.FromImage(bitmap); SizeF totalSizeF = g.MeasureString(verifyCode, font); SizeF curCharSizeF; PointF startPointF = new PointF(0, (height - totalSizeF.Height) / 2); Random random = new Random(); //隨機數產生器 g.Clear(Color.White); //清空圖片背景色 for (int i = 0; i < verifyCode.Length; i++) { brush = new LinearGradientBrush(new Point(0, 0), new Point(1, 1), Color.FromArgb(random.Next(255), random.Next(255), random.Next(255)), Color.FromArgb(random.Next(255), random.Next(255), random.Next(255))); g.DrawString(verifyCode[i].ToString(), font, brush, startPointF); curCharSizeF = g.MeasureString(verifyCode[i].ToString(), font); startPointF.X += curCharSizeF.Width; } //畫圖片的干擾線 for (int i = 0; i < 10; i++) { int x1 = random.Next(bitmap.Width); int x2 = random.Next(bitmap.Width); int y1 = random.Next(bitmap.Height); int y2 = random.Next(bitmap.Height); g.DrawLine(new Pen(Color.Silver), x1, y1, x2, y2); } //畫圖片的前景干擾點 for (int i = 0; i < 100; i++) { int x = random.Next(bitmap.Width); int y = random.Next(bitmap.Height); bitmap.SetPixel(x, y, Color.FromArgb(random.Next())); } g.DrawRectangle(new Pen(Color.Silver), 0, 0, bitmap.Width - 1, bitmap.Height - 1); //畫圖片的邊框線 g.Dispose(); return bitmap; } /// <summary> /// 驗證碼圖片 => byte[] /// </summary> /// <param name="verifyCode">驗證碼</param> /// <param name="width">寬</param> /// <param name="height">高</param> /// <returns>byte[]</returns> public byte[] CreateByteByImgVerifyCode(string verifyCode, int width, int height) { Font font = new Font("Arial", 14, (FontStyle.Bold | FontStyle.Italic)); Brush brush; Bitmap bitmap = new Bitmap(width, height); Graphics g = Graphics.FromImage(bitmap); SizeF totalSizeF = g.MeasureString(verifyCode, font); SizeF curCharSizeF; PointF startPointF = new PointF(0, (height - totalSizeF.Height) / 2); Random random = new Random(); //隨機數產生器 g.Clear(Color.White); //清空圖片背景色 for (int i = 0; i < verifyCode.Length; i++) { brush = new LinearGradientBrush(new Point(0, 0), new Point(1, 1), Color.FromArgb(random.Next(255), random.Next(255), random.Next(255)), Color.FromArgb(random.Next(255), random.Next(255), random.Next(255))); g.DrawString(verifyCode[i].ToString(), font, brush, startPointF); curCharSizeF = g.MeasureString(verifyCode[i].ToString(), font); startPointF.X += curCharSizeF.Width; } //畫圖片的干擾線 for (int i = 0; i < 10; i++) { int x1 = random.Next(bitmap.Width); int x2 = random.Next(bitmap.Width); int y1 = random.Next(bitmap.Height); int y2 = random.Next(bitmap.Height); g.DrawLine(new Pen(Color.Silver), x1, y1, x2, y2); } //畫圖片的前景干擾點 for (int i = 0; i < 100; i++) { int x = random.Next(bitmap.Width); int y = random.Next(bitmap.Height); bitmap.SetPixel(x, y, Color.FromArgb(random.Next())); } g.DrawRectangle(new Pen(Color.Silver), 0, 0, bitmap.Width - 1, bitmap.Height - 1); //畫圖片的邊框線 g.Dispose(); //保存圖片數據 MemoryStream stream = new MemoryStream(); bitmap.Save(stream, ImageFormat.Jpeg); //輸出圖片流 return stream.ToArray(); } #endregion }} |
新建控制器：VerifyCodeController，
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
|
using System.DrawingCore.Imaging;using System.IO;using Common.Helper;using Microsoft.AspNetCore.Mvc; namespace WebApplicationApi.Controllers{ public class VerifyCodeController : Controller { public IActionResult Index() { return View(); } /// <summary> /// 數字驗證碼 /// </summary> /// <returns></returns> public FileContentResult NumberVerifyCode() { string code = VerifyCodeHelper.GetSingleObj().CreateVerifyCode(VerifyCodeHelper.VerifyCodeType.NumberVerifyCode); byte[] codeImage = VerifyCodeHelper.GetSingleObj().CreateByteByImgVerifyCode(code, 100, 40); return File(codeImage, @"image/jpeg"); } /// <summary> /// 字母驗證碼 /// </summary> /// <returns></returns> public FileContentResult AbcVerifyCode() { string code = VerifyCodeHelper.GetSingleObj().CreateVerifyCode(VerifyCodeHelper.VerifyCodeType.AbcVerifyCode); var bitmap = VerifyCodeHelper.GetSingleObj().CreateBitmapByImgVerifyCode(code, 100, 40); MemoryStream stream = new MemoryStream(); bitmap.Save(stream, ImageFormat.Png); return File(stream.ToArray(), "image/png"); } /// <summary> /// 混合驗證碼 /// </summary> /// <returns></returns> public FileContentResult MixVerifyCode() { string code = VerifyCodeHelper.GetSingleObj().CreateVerifyCode(VerifyCodeHelper.VerifyCodeType.MixVerifyCode); var bitmap = VerifyCodeHelper.GetSingleObj().CreateBitmapByImgVerifyCode(code, 100, 40); MemoryStream stream = new MemoryStream(); bitmap.Save(stream, ImageFormat.Gif); return File(stream.ToArray(), "image/gif"); } }} |
添加頁面index.cshtml，如下代碼：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
|
@{ Layout = null;}<!DOCTYPE html><html><head> <meta name="viewport" content="width=device-width" /> <title>Index</title></head><body> <figure> <h3>圖片驗證碼</h3> <fieldset> <legend>數字驗證碼</legend> <img id="nubImg" title="數字驗證碼" src="/VerifyCode/NumberVerifyCode?random=" alt="vcode" onclick="refresh()" style="cursor:pointer;" /> </fieldset> <fieldset> <legend>數字驗證碼</legend> <img id="abcImg" title="字母驗證碼" src="/VerifyCode/AbcVerifyCode" alt="vcode" onclick="this.src=this.src+'?'" style="cursor:pointer;" /> </fieldset> <fieldset> <legend>混合驗證碼</legend> <img id="mixImg" title="數字字母混合驗證碼" src="/VerifyCode/MixVerifyCode" alt="vcode" onclick="this.src=this.src+'?'" style="cursor:pointer;" /> </fieldset> </figure> <script type="text/javascript"> function refresh() { var id = document.getElementById("nubImg"); var str = "/VerifyCode/NumberVerifyCode?random=" + Math.random(); id.setAttribute("src", str); } </script> </body></html> |

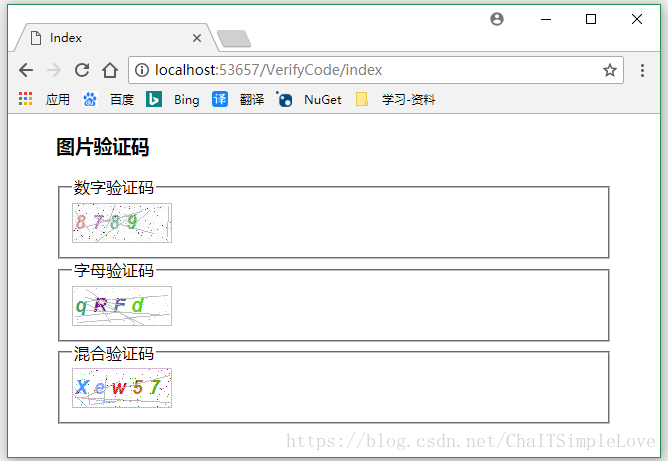

生成驗證碼如下所示：
總結
以上就是這篇文章的全部內容了，希望本文的內容對大家的學習或者工作具有一定的參考學習價值，如果有疑問大家可以留言交流，謝謝大家對服務器之家的支持。
