前言
本文主要介紹的是關于.NET Core單文件發布靜態編譯AOT CoreRT，將.NET Core應用打包成一個可執行文件并包含運行時。
支持Windows, MacOS and Linux x64 w/ RyuJIT codegen。
示例項目：
https://github.com/dotnet/corert/tree/master/samples/WebApi
下面來實際體驗。
首先確保安裝C++編譯環境，以及.NET Core 2.0 以上版本SDK。
新建WebAPI應用
打開命令提示符，輸入如下：
|
1
2
3
|
dotnet new webapi -o zeroapicd zeroapi |
新建WebAPI應用。
添加CoreRT到項目
目前CoreRT還是alpha版，在myget上有包。
首先添加一個nuget.config
|
1
|
dotnet new nuget |
然后在 <packageSources> 節點添加如下：
|
1
2
|
<add key="dotnet-core" value="https://dotnet.myget.org/F/dotnet-core/api/v3/index.json" /><add key="nuget.org" value="https://api.nuget.org/v3/index.json" protocolVersion="3" /> |
接著添加Microsoft.DotNet.ILCompiler包引用：
|
1
|
dotnet add package Microsoft.DotNet.ILCompiler -v 1.0.0-alpha-* |
替換默認services并處理反射
打開Startup.cs ,將 services.AddMvc(); 替換成 services.AddMvcCore().AddJsonFormatters();
接著創建一個rd.xml 配置文件，用于反射處理運行時，確保反射程序集編譯到程序中。
rd.xml配置文件如下：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
|
<Directives> <Application> <Assembly Name="zeroapi" Dynamic="Required All" /> <Assembly Name="Microsoft.AspNetCore.Server.Kestrel.Core"> <Type Name="Microsoft.AspNetCore.Server.Kestrel.Core.KestrelServer" Dynamic="Required All" /> <Type Name="Microsoft.AspNetCore.Server.Kestrel.Core.Internal.KestrelServerOptionsSetup" Dynamic="Required All" /> </Assembly> <Assembly Name="Microsoft.AspNetCore.Server.Kestrel" Dynamic="Required All"/> <Assembly Name="Microsoft.AspNetCore.Server.Kestrel.Transport.Libuv"> <Type Name="Microsoft.AspNetCore.Server.Kestrel.Transport.Libuv.LibuvTransportFactory" Dynamic="Required All" /> <Type Name="Microsoft.AspNetCore.Server.Kestrel.Transport.Libuv.LibuvTransportOptions" Dynamic="Required All" /> </Assembly> <Assembly Name="Microsoft.Extensions.DependencyInjection" Dynamic="Required All"> <Type Name="Microsoft.Extensions.DependencyInjection.DefaultServiceProviderFactory" Dynamic="Required All" /> <Type Name="Microsoft.Extensions.DependencyInjection.ServiceLookup.CallSiteExpressionBuilder" Dynamic="Required All" /> <Type Name="Microsoft.Extensions.DependencyInjection.ServiceLookup.CallSiteRuntimeResolver" Dynamic="Required All" /> <Type Name="Microsoft.Extensions.DependencyInjection.ServiceLookup.CallSiteValidator" Dynamic="Required All" /> </Assembly> <Assembly Name="Microsoft.Extensions.Options"> <Type Name="Microsoft.Extensions.Options.OptionsManager`1[[Microsoft.AspNetCore.Server.Kestrel.Core.KestrelServerOptions,Microsoft.AspNetCore.Server.Kestrel.Core]]" Dynamic="Required All" /> <Type Name="Microsoft.Extensions.Options.OptionsFactory`1[[Microsoft.AspNetCore.Server.Kestrel.Core.KestrelServerOptions,Microsoft.AspNetCore.Server.Kestrel.Core]]" Dynamic="Required All" /> <Type Name="Microsoft.Extensions.Options.OptionsMonitor`1[[Microsoft.Extensions.Logging.Console.ConsoleLoggerOptions,Microsoft.Extensions.Logging.Console]]" Dynamic="Required All" /> </Assembly> <Assembly Name="Microsoft.AspNetCore.Mvc.Core" Dynamic="Required All" /> <Assembly Name="Microsoft.AspNetCore.Routing"> <Type Name="Microsoft.AspNetCore.Routing.Internal.RoutingMarkerService" Dynamic="Required All" /> <Type Name="Microsoft.AspNetCore.Builder.RouterMiddleware" Dynamic="Required All" /> <Type Name="Microsoft.AspNetCore.Routing.Tree.TreeRouteBuilder" Dynamic="Required All" /> <Type Name="Microsoft.AspNetCore.Routing.DefaultInlineConstraintResolver" Dynamic="Required All" /> <Type Name="Microsoft.AspNetCore.Routing.RouteOptions" Dynamic="Required All" /> </Assembly> <Assembly Name="Microsoft.AspNetCore.Mvc.Formatters.Json"> <Type Name="Microsoft.AspNetCore.Mvc.Formatters.Json.Internal.MvcJsonMvcOptionsSetup" Dynamic="Required All" /> <Type Name="Microsoft.AspNetCore.Mvc.MvcJsonOptions" Dynamic="Required All" /> </Assembly> <Assembly Name="Microsoft.AspNetCore.Authorization"> <Type Name="Microsoft.AspNetCore.Authorization.DefaultAuthorizationPolicyProvider" Dynamic="Required All" /> <Type Name="Microsoft.AspNetCore.Authorization.AuthorizationOptions" Dynamic="Required All" /> </Assembly> <Assembly Name="Microsoft.AspNetCore.Http"> <Type Name="Microsoft.AspNetCore.Http.HttpContextFactory" Dynamic="Required All" /> </Assembly> <Assembly Name="Microsoft.AspNetCore.Hosting" Dynamic="Required All"> <Type Name="Microsoft.AspNetCore.Hosting.Internal.ApplicationLifetime" Dynamic="Required All" /> </Assembly> <Assembly Name="Microsoft.Extensions.Logging.Abstractions"> <Type Name="Microsoft.Extensions.Logging.Logger`1[[Microsoft.AspNetCore.Hosting.Internal.WebHost,Microsoft.AspNetCore.Hosting]]" Dynamic="Required All" /> </Assembly> <Assembly Name="Microsoft.Extensions.Logging"> <Type Name="Microsoft.Extensions.Logging.LoggerFactory" Dynamic="Required All" /> </Assembly> <Assembly Name="Microsoft.Extensions.Logging.Console"> <Type Name="Microsoft.Extensions.Logging.Console.ConsoleLoggerOptions" Dynamic="Required All" /> <Type Name="Microsoft.Extensions.Logging.Console.ConsoleLoggerProvider" Dynamic="Required All" /> </Assembly> <Assembly Name="Microsoft.Extensions.Logging.Debug"> <Type Name="Microsoft.Extensions.Logging.Debug.DebugLogger" Dynamic="Required All" /> <Type Name="Microsoft.Extensions.Logging.Debug.DebugLoggerProvider" Dynamic="Required All" /> </Assembly> <Assembly Name="System.Linq.Expressions"> <Type Name="System.Linq.Expressions.ExpressionCreator`1[[Newtonsoft.Json.Serialization.ObjectConstructor`1[[System.Object,System.Private.CoreLib]],Newtonsoft.Json]]" Dynamic="Required All" /> <Type Name="System.Linq.Expressions.ExpressionCreator`1[[System.Func`2[[System.Object,System.Private.CoreLib],[System.Object,System.Private.CoreLib]],System.Private.CoreLib]]" Dynamic="Required All" /> </Assembly> <Assembly Name="Microsoft.Extensions.ObjectPool"> <Type Name="Microsoft.Extensions.ObjectPool.DefaultObjectPoolProvider" Dynamic="Required All" /> </Assembly> <Assembly Name="Newtonsoft.Json"> <Type Name="Newtonsoft.Json.Serialization.ObjectConstructor`1[[System.Object,System.Private.CoreLib]]" Dynamic="Required All" /> </Assembly> <Assembly Name="System.ComponentModel.TypeConverter"> <Type Name="System.ComponentModel.TypeConverter" Dynamic="Required All" /> <Type Name="System.ComponentModel.StringConverter" Dynamic="Required All" /> <Type Name="System.ComponentModel.Int32Converter" Dynamic="Required All" /> </Assembly> <Assembly Name="Microsoft.Extensions.Configuration.Json"> <Type Name="Microsoft.Extensions.Configuration.Json.JsonConfigurationSource" Dynamic="Required All" /> </Assembly> </Application></Directives> |
其中如果你要替換成自己的程序，更改 <Assembly Name="zeroapi" Dynamic="Required All" /> 中的Name。
打開zeroapi.csproj
在<PropertyGroup>節點下將 <RdXmlFile>rd.xml</RdXmlFile> 加入。
接著將 <PackageReference Include="Microsoft.AspNetCore.All" Version="2.0.3" /> 替換成如下：
|
1
2
3
|
<PackageReference Include="Microsoft.AspNetCore" Version="2.0.1" /><PackageReference Include="Microsoft.AspNetCore.Mvc.Core" Version="2.0.1" /><PackageReference Include="Microsoft.AspNetCore.Mvc.Formatters.Json" Version="2.0.1" /> |
接著將 ValuesController 更改一下，確保功能正常，如下：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
|
public class ValuesController { [HttpGet("/")] public string Hello() => "Hello World! LineZero AOT"; // GET api/values [HttpGet("/api/values")] public IEnumerable<string> Get() { return new string[] { "AOT", "CoreRT" }; } // GET api/values/5 [HttpGet("/api/values/{id}")] public string Get(int id) { return "Your value is " + id; } } |
程序改造完成，接著最重要的發布。
還原并發布
發布之前，使用dotnet run 確保功能正常運行。
發布請打開 x64 Native Tools Command Prompt for VS 2017 ，注意一定在此命令行發布。在開始菜單找到 Visual Studio 2017，打開就能找到。
發布命令還是 dotnet publish -r <RID> -c <Configuration>
這里發布Windows 64位 dotnet publish -r win-x64 -c release，初次的話會默認還原對應的包，需要一些時間。
發布完成后，打開bin\x64\release\netcoreapp2.0\win-x64\publish 文件夾，里面zeroapi.exe即為最終文件，執行即可。
可以看到最終大小為21m左右。然后訪問http://localhost:5000/ 如圖：
控制臺Demo
新建一個控制臺應用，使用AOT發布。
單純控制臺，沒有反射的內容，無需要rd.xml 文件。
代碼如下：
|
1
2
3
4
5
6
7
8
9
|
class Program { static void Main(string[] args) { Console.WriteLine("Hello World!"); Console.WriteLine("LineZero AOT Demo！"); Console.ReadKey(); } } |

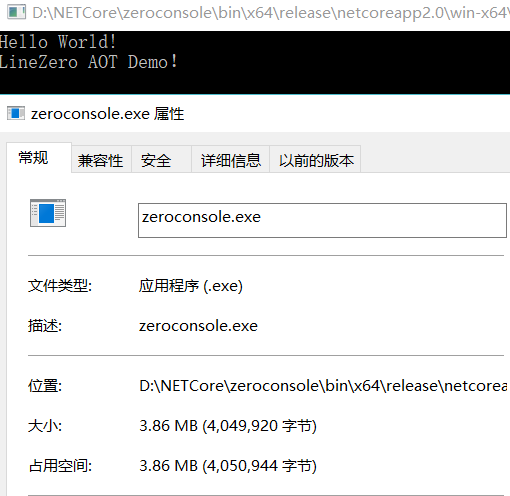

最終 dotnet publish -r win-x64 -c release 發布
最終單個文件大小不到4m！
目前該技術還是早期版本，期待微軟最終帶到正式版。
GitHub：https://github.com/dotnet/corert
