在公司實習。公司推崇Python和Django框架，所以也得跟著學點。
簡單瞅了下Tkinter，和Canvas配合在一起，還算是簡潔的界面開發API。threading.Thread創建新的線程，其多線程機制也算是方便。
只是canvas.create_rectangle居然不是繪制矩形，而是新建了矩形控件這點讓人大跌眼鏡。先開始，在線程里每次都重繪多個矩形（隨數組變化），其實是每次都新建了N個矩形，結果內存暴增。原來，對矩形進行變更時，只需用canvas.itemconfig即可。

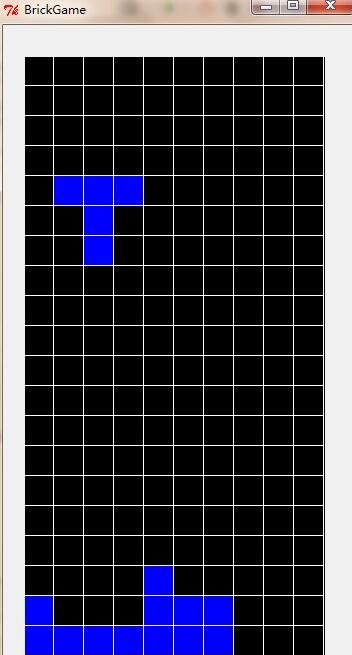

下面就是截圖（時間太晚，明日還得上班，做得非常粗糙...沒事時再慢慢修正）。
而代碼如下：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
|
#coding=utf-8 from Tkinter import *; from random import *; import thread; from tkMessageBox import showinfo; import threading; from time import sleep; class BrickGame(object): #是否開始 start = True; #是否到達底部 isDown = True; #窗體 window = None; #frame frame1 = None; #繪圖類 canvas = None; #標題 title = "BrickGame"; #寬和高 width = 350; height = 670; #行和列 rows = 20; cols = 10; #幾種方塊 brick = [ [ [ [1,1,1], [0,0,1], [0,0,0] ], [ [0,0,1], [0,0,1], [0,1,1] ], [ [0,0,0], [1,0,0], [1,1,1] ], [ [1,1,0], [1,0,0], [1,0,0] ] ], [ [ [0,0,0], [0,1,1], [0,1,1] ], [ [0,0,0], [0,1,1], [0,1,1] ], [ [0,0,0], [0,1,1], [0,1,1] ], [ [0,0,0], [0,1,1], [0,1,1] ] ], [ [ [1,1,1], [0,1,0], [0,1,0] ], [ [0,0,1], [1,1,1], [0,0,1] ], [ [0,1,0], [0,1,0], [1,1,1] ], [ [1,0,0], [1,1,1], [1,0,0] ] ], [ [ [0,1,0], [0,1,0], [0,1,0] ], [ [0,0,0], [1,1,1], [0,0,0] ], [ [0,1,0], [0,1,0], [0,1,0] ], [ [0,0,0], [1,1,1], [0,0,0] ] ] ]; #當前的方塊 curBrick = None; #當前方塊數組 arr = None; #當前方塊形狀 shape = -1; #當前方塊的行和列（最左上角） curRow = -10; curCol = -10; #背景 back = list(); #格子 gridBack = list(); #初始化 def init(self): for i in range(0,self.rows): self.back.insert(i,list()); self.gridBack.insert(i,list()); for i in range(0,self.rows): for j in range(0,self.cols): self.back[i].insert(j,0); self.gridBack[i].insert(j,self.canvas.create_rectangle(30*j,30*i,30*(j+1),30*(i+1),fill="black")); #繪制游戲的格子 def drawRect(self): for i in range(0,self.rows): for j in range(0,self.cols): if self.back[i][j]==1: self.canvas.itemconfig(self.gridBack[i][j],fill="blue",outline="white"); elif self.back[i][j]==0: self.canvas.itemconfig(self.gridBack[i][j],fill="black",outline="white"); #繪制當前正在運動的方塊 if self.curRow!=-10 and self.curCol!=-10: for i in range(0,len(self.arr)): for j in range(0,len(self.arr[i])): if self.arr[i][j]==1: self.canvas.itemconfig(self.gridBack[self.curRow+i][self.curCol+j],fill="blue",outline="white"); #判斷方塊是否已經運動到達底部 if self.isDown: for i in range(0,3): for j in range(0,3): if self.arr[i][j]!=0: self.back[self.curRow+i][self.curCol+j] = self.arr[i][j]; #判斷整行消除 self.removeRow(); #獲得下一個方塊 self.getCurBrick(); #判斷是否有整行需要消除 def removeRow(self): for i in range(0,self.rows): tag1 = True; for j in range(0,self.cols): if self.back[i][j]==0: tag1 = False; break; if tag1==True: #從上向下挪動 for m in xrange(i-1,0,-1): for n in range(0,self.cols): self.back[m+1][n] = self.back[m][n]; #獲得當前的方塊 def getCurBrick(self): self.curBrick = randint(0,len(self.brick)-1); self.shape = 0; #當前方塊數組 self.arr = self.brick[self.curBrick][self.shape]; self.curRow = 0; self.curCol = 1; #是否到底部為False self.isDown = False; #監聽鍵盤輸入 def onKeyboardEvent(self,event): #未開始，不必監聽鍵盤輸入 if self.start == False: return; #記錄原來的值 tempCurCol = self.curCol; tempCurRow = self.curRow; tempShape = self.shape; tempArr = self.arr; direction = -1; if event.keycode==37: #左移 self.curCol-=1; direction = 1; elif event.keycode==38: #變化方塊的形狀 self.shape+=1; direction = 2; if self.shape>=4: self.shape=0; self.arr = self.brick[self.curBrick][self.shape]; elif event.keycode==39: direction = 3; #右移 self.curCol+=1; elif event.keycode==40: direction = 4; #下移 self.curRow+=1; if self.isEdge(direction)==False: self.curCol = tempCurCol; self.curRow = tempCurRow; self.shape = tempShape; self.arr = tempArr; self.drawRect(); return True; #判斷當前方塊是否到達邊界 def isEdge(self,direction): tag = True; #向左，判斷邊界 if direction==1: for i in range(0,3): for j in range(0,3): if self.arr[j][i]!=0 and (self.curCol+i<0 or self.back[self.curRow+j][self.curCol+i]!=0): tag = False; break; #向右，判斷邊界 elif direction==3: for i in range(0,3): for j in range(0,3): if self.arr[j][i]!=0 and (self.curCol+i>=self.cols or self.back[self.curRow+j][self.curCol+i]!=0): tag = False; break; #向下，判斷底部 elif direction==4: for i in range(0,3): for j in range(0,3): if self.arr[i][j]!=0 and (self.curRow+i>=self.rows or self.back[self.curRow+i][self.curCol+j]!=0): tag = False; self.isDown = True; break; #進行變形，判斷邊界 elif direction==2: if self.curCol<0: self.curCol=0; if self.curCol+2>=self.cols: self.curCol = self.cols-3; if self.curRow+2>=self.rows: self.curRow = self.curRow-3; return tag; #方塊向下移動 def brickDown(self): while True: if self.start==False: print("exit thread"); break; tempRow = self.curRow; self.curRow+=1; if self.isEdge(4)==False: self.curRow = tempRow; self.drawRect(); #每一秒下降一格 sleep(1); #運行 def __init__(self): self.window = Tk(); self.window.title(self.title); self.window.minsize(self.width,self.height); self.window.maxsize(self.width,self.height); self.frame1 = Frame(self.window,width=300,height=600,bg="black"); self.frame1.place(x=20,y=30); self.canvas = Canvas(self.frame1,width=300,height=600,bg="black"); self.init(); #獲得當前的方塊 self.getCurBrick(); #按照數組，繪制格子 self.drawRect(); self.canvas.pack(); #監聽鍵盤事件 self.window.bind("<KeyPress>",self.onKeyboardEvent); #啟動方塊下落線程 downThread = threading.Thread(target=self.brickDown,args=()); downThread.start(); self.window.mainloop(); self.start=False; pass; if __name__=='__main__': brickGame = BrickGame(); |
估計用圖形界面會很少，因?yàn)楸救耸荳EB開發。不過，怎樣也抑制不住這顆喜歡寫游戲的心啊！
以上就是本文的全部?jī)?nèi)容，希望對大家的學習有所幫助，也希望大家多多支持服務器之家。
