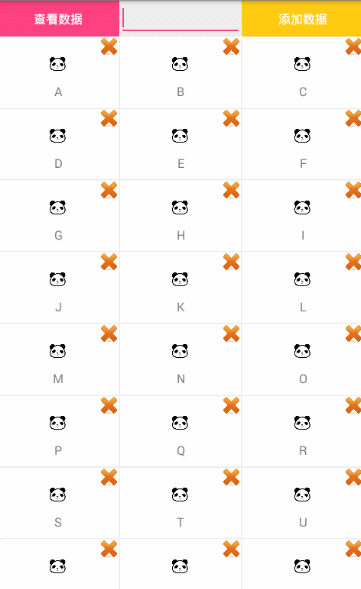

效果就是這樣，RecyclerView列表可拖拽排序，可刪除，可添加；
RecyclerView給我們提供了一個手勢器：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
|
ItemTouchHelper helper = new ItemTouchHelper(new ItemTouchHelper.Callback() { @Override public int getMovementFlags(RecyclerView recyclerView, RecyclerView.ViewHolder viewHolder) { int dragFrlg = 0; if (recyclerView.getLayoutManager() instanceof GridLayoutManager){ dragFrlg = ItemTouchHelper.UP|ItemTouchHelper.DOWN|ItemTouchHelper.LEFT|ItemTouchHelper.RIGHT; }else if(recyclerView.getLayoutManager() instanceof LinearLayoutManager){ dragFrlg = ItemTouchHelper.UP|ItemTouchHelper.DOWN; } return makeMovementFlags(dragFrlg,0); } @Override public boolean onMove(RecyclerView recyclerView, RecyclerView.ViewHolder viewHolder, RecyclerView.ViewHolder target) { //滑動事件 下面注釋的代碼，滑動后數據和條目錯亂，被舍棄 // Collections.swap(datas,viewHolder.getAdapterPosition(),target.getAdapterPosition()); // ap.notifyItemMoved(viewHolder.getAdapterPosition(),target.getAdapterPosition()); //得到當拖拽的viewHolder的Position int fromPosition = viewHolder.getAdapterPosition(); //拿到當前拖拽到的item的viewHolder int toPosition = target.getAdapterPosition(); if (fromPosition < toPosition) { for (int i = fromPosition; i < toPosition; i++) { Collections.swap(datas, i, i + 1); } } else { for (int i = fromPosition; i > toPosition; i--) { Collections.swap(datas, i, i - 1); } } ap.notifyItemMoved(fromPosition, toPosition); return true; } @Override public void onSwiped(RecyclerView.ViewHolder viewHolder, int direction) { //側滑刪除可以使用； } @Override public boolean isLongPressDragEnabled() { return true; } /** * 長按選中Item的時候開始調用 * 長按高亮 * @param viewHolder * @param actionState */ @Override public void onSelectedChanged(RecyclerView.ViewHolder viewHolder, int actionState) { if (actionState != ItemTouchHelper.ACTION_STATE_IDLE) { viewHolder.itemView.setBackgroundColor(Color.RED); //獲取系統震動服務//震動70毫秒 Vibrator vib = (Vibrator) getSystemService(Service.VIBRATOR_SERVICE); vib.vibrate(70); } super.onSelectedChanged(viewHolder, actionState); } /** * 手指松開的時候還原高亮 * @param recyclerView * @param viewHolder */ @Override public void clearView(RecyclerView recyclerView, RecyclerView.ViewHolder viewHolder) { super.clearView(recyclerView, viewHolder); viewHolder.itemView.setBackgroundColor(0); ap.notifyDataSetChanged(); //完成拖動后刷新適配器，這樣拖動后刪除就不會錯亂 } }); |
設置給RecyclerView即可：
|
1
|
helper.attachToRecyclerView(rv); |
下面是完整的代碼和Xml布局文件：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
|
public class MainActivity extends AppCompatActivity implements View.OnClickListener { private final String TAG = this.getClass().getSimpleName(); private List<String> d = Arrays.asList( "A","B","C","D","E","F","G" ,"H","I","J","K","L","M","N" ,"O","P","Q","R","S","T" ,"U","V","W","X","Y","Z"); private RecyclerView rv ; private Ap<String> ap; private List<String> datas; private EditText edAdd; @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); initData(); rv = findViewById(R.id.rv); edAdd =findViewById(R.id.et_add); rv.setLayoutManager(new GridLayoutManager(this,3)); // rv.setLayoutManager(new LinearLayoutManager(this)); ap = new Ap(this, datas); rv.setAdapter(ap); helper.attachToRecyclerView(rv); findViewById(R.id.tv).setOnClickListener(this); findViewById(R.id.tv_add).setOnClickListener(this); } private void initData() { datas = new ArrayList<>(); // 直接用d操作集合會崩潰，Arrays.asList集合不可增刪改；詳細可以看我的博客 for (int i = 0; i < d.size(); i++) { datas.add(d.get(i)); } } @Override public void onClick(View view) { switch (view.getId()){ case R.id.tv: for (int i = 0; i < datas.size(); i++) { Log.i(TAG, "onClick: ____"+datas.get(i)); } break; case R.id.tv_add: ap.add(edAdd.getText().toString().trim()); edAdd.setText(null); break; } } class Ap<T> extends RecyclerView.Adapter<Ap.Vh>{ private Context context; public List<T> stringList; public Ap(Context context, List<T> stringList) { this.context = context; this.stringList = stringList; } @Override public Ap.Vh onCreateViewHolder(ViewGroup parent, int viewType) { return new Vh(LayoutInflater.from(context).inflate(R.layout.item_rv,null)); } @Override public void onBindViewHolder(Ap.Vh holder, final int position) { holder.tv.setText(stringList.get(position).toString()); holder.iv.setOnClickListener(new View.OnClickListener() { @Override public void onClick(View view) { remove(position); } }); } @Override public int getItemCount() { return stringList.size(); } public void add(T item){ int position = stringList.size(); stringList.add(item); notifyItemInserted(position); } public void add(int position,T item){ stringList.add(position,item); notifyItemInserted(position); } // public void remove(T item) { // final int position = stringList.indexOf(item); // if (-1 == position) // return; // stringList.remove(item); // notifyItemRemoved(position); // } public void remove(int position) { stringList.remove(position); notifyItemRemoved(position); notifyItemRangeChanged(position,stringList.size()); } class Vh extends RecyclerView.ViewHolder { public Vh(View itemView) { super(itemView); tv = itemView.findViewById(R.id.tv); iv = itemView.findViewById(R.id.iv_delete); } public TextView tv; public ImageView iv; } } ItemTouchHelper helper = new ItemTouchHelper(new ItemTouchHelper.Callback() { @Override public int getMovementFlags(RecyclerView recyclerView, RecyclerView.ViewHolder viewHolder) { int dragFrlg = 0; if (recyclerView.getLayoutManager() instanceof GridLayoutManager){ dragFrlg = ItemTouchHelper.UP|ItemTouchHelper.DOWN|ItemTouchHelper.LEFT|ItemTouchHelper.RIGHT; }else if(recyclerView.getLayoutManager() instanceof LinearLayoutManager){ dragFrlg = ItemTouchHelper.UP|ItemTouchHelper.DOWN; } return makeMovementFlags(dragFrlg,0); } @Override public boolean onMove(RecyclerView recyclerView, RecyclerView.ViewHolder viewHolder, RecyclerView.ViewHolder target) { //滑動事件 下面注釋的代碼，滑動后數據和條目錯亂，被舍棄 // Collections.swap(datas,viewHolder.getAdapterPosition(),target.getAdapterPosition()); // ap.notifyItemMoved(viewHolder.getAdapterPosition(),target.getAdapterPosition()); //得到當拖拽的viewHolder的Position int fromPosition = viewHolder.getAdapterPosition(); //拿到當前拖拽到的item的viewHolder int toPosition = target.getAdapterPosition(); if (fromPosition < toPosition) { for (int i = fromPosition; i < toPosition; i++) { Collections.swap(datas, i, i + 1); } } else { for (int i = fromPosition; i > toPosition; i--) { Collections.swap(datas, i, i - 1); } } ap.notifyItemMoved(fromPosition, toPosition); return true; } @Override public void onSwiped(RecyclerView.ViewHolder viewHolder, int direction) { //側滑刪除可以使用； } @Override public boolean isLongPressDragEnabled() { return true; } /** * 長按選中Item的時候開始調用 * 長按高亮 * @param viewHolder * @param actionState */ @Override public void onSelectedChanged(RecyclerView.ViewHolder viewHolder, int actionState) { if (actionState != ItemTouchHelper.ACTION_STATE_IDLE) { viewHolder.itemView.setBackgroundColor(Color.RED); //獲取系統震動服務//震動70毫秒 Vibrator vib = (Vibrator) getSystemService(Service.VIBRATOR_SERVICE); vib.vibrate(70); } super.onSelectedChanged(viewHolder, actionState); } /** * 手指松開的時候還原高亮 * @param recyclerView * @param viewHolder */ @Override public void clearView(RecyclerView recyclerView, RecyclerView.ViewHolder viewHolder) { super.clearView(recyclerView, viewHolder); viewHolder.itemView.setBackgroundColor(0); ap.notifyDataSetChanged(); //完成拖動后刷新適配器，這樣拖動后刪除就不會錯亂 } }); } |
Xml布局文件：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
|
<?xml version="1.0" encoding="utf-8"?> <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:app="http://schemas.android.com/apk/res-auto" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" tools:context="com.ccb.pactera.dragrecyclerviewdemo.MainActivity"> <LinearLayout android:id="@+id/ll" android:background="#eeeeee" android:orientation="horizontal" android:layout_width="match_parent" android:layout_height="48dp"> <TextView android:layout_width="0dp" android:layout_weight="1" android:layout_height="48dp" android:id="@+id/tv" android:text="查看數據" android:textColor="#fff" android:textSize="16dp" android:gravity="center" android:background="@color/colorAccent" /> <EditText android:id="@+id/et_add" android:layout_width="0dp" android:layout_height="match_parent" android:layout_weight="1"/> <TextView android:layout_width="0dp" android:layout_weight="1" android:layout_height="48dp" android:id="@+id/tv_add" android:text="添加數據" android:textColor="#fff" android:textSize="16dp" android:gravity="center" android:background="#fc1" /> </LinearLayout> <android.support.v7.widget.RecyclerView android:id="@+id/rv" android:layout_below="@id/ll" android:layout_width="match_parent" android:layout_height="match_parent" /> </RelativeLayout> |
RecyclerView的Item：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
|
<?xml version="1.0" encoding="utf-8"?> <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent" android:background="#f1f1f1" android:layout_height="match_parent"> <RelativeLayout android:layout_width="match_parent" android:background="#fff" android:layout_margin="0.5dp" android:layout_height="match_parent"> <ImageView android:layout_width="match_parent" android:layout_height="50dp" android:src="@mipmap/icon" android:id="@+id/iv" android:layout_marginTop="10dp" /> <TextView android:id="@+id/tv" android:layout_width="match_parent" android:layout_height="wrap_content" android:textSize="16dp" android:layout_below="@id/iv" android:gravity="center_horizontal" android:layout_marginBottom="10dp" /> <ImageView android:layout_width="25dp" android:layout_height="25dp" android:layout_alignParentRight="true" android:src="@mipmap/detele" android:id="@+id/iv_delete" /> </RelativeLayout> </RelativeLayout> |
資源鏈接Github
