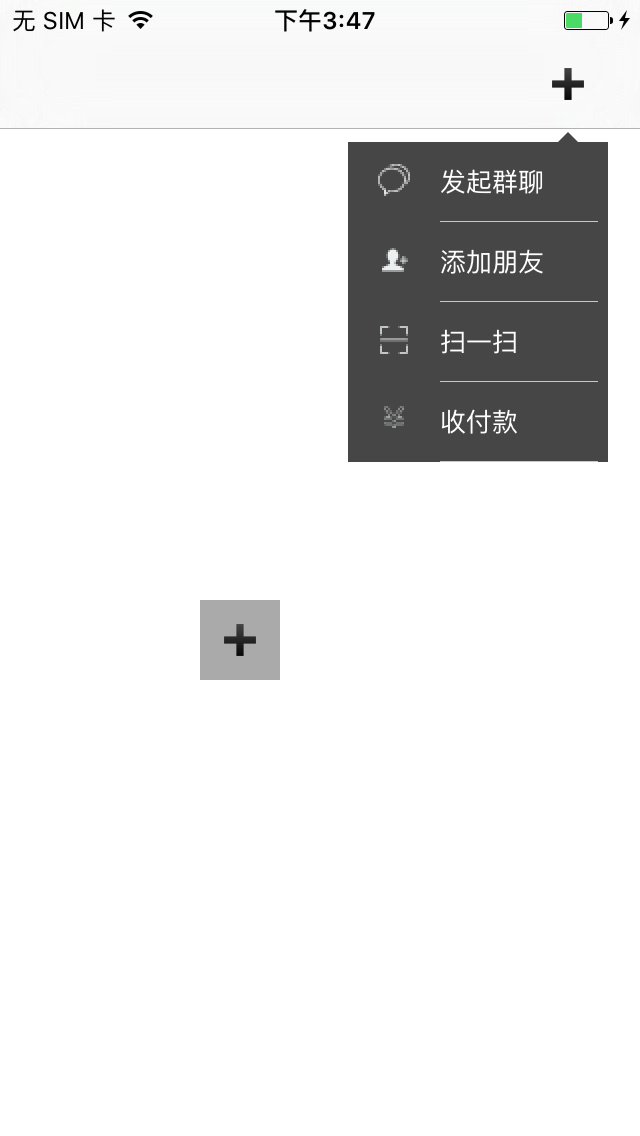

我使用DrawRect進行的View的拉伸(是這樣描述的吧??), 效果圖也實現了類似于微信的View效果, 你可以看一看.
創建繼承于UIView的視圖 .h文件
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
|
// backGoundView@property (nonatomic, strong) UIView * _Nonnull backGoundView;// titles@property (nonatomic, strong) NSArray * _Nonnull dataArray;// images@property (nonatomic, strong) NSArray * _Nonnull images;// height@property (nonatomic, assign) CGFloat row_height;// font@property (nonatomic, assign) CGFloat fontSize;// textColor@property (nonatomic, assign) UIColor * _Nonnull titleTextColor;// delegate@property (nonatomic, assign) id <selectIndexPathDelegate> _Nonnull delegate;// 初始化方法- (instancetype _Nonnull)initWithOrigin:(CGPoint) originWidth:(CGFloat) widthHeight:(CGFloat) heightType:(XTDirectionType)typeColor:( UIColor * _Nonnull ) color;- (void)popView;- (void)dismiss; |
##.m 實現部分
定義用到的宏
|
1
2
3
4
|
#define ScreenWidth [UIScreen mainScreen].bounds.size.width#define ScreenHeight [UIScreen mainScreen].bounds.size.height#define Length 5#define Length2 15 |
|
1
2
3
4
5
|
自定義初始化方法
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
|
- (instancetype)initWithOrigin:(CGPoint)origin Width:(CGFloat)width Height:(CGFloat)height Type:(XTDirectionType)type Color:(UIColor *)color{self = [super initWithFrame:CGRectMake(0, 0, ScreenWidth, ScreenHeight)];if (self) {self.backgroundColor = [UIColor clearColor];self.origin = origin;self.width = width;self.height = height;self.type = type;self.backGoundView = [[UIView alloc] initWithFrame:CGRectMake(origin.x, origin.y, width, height)];self.backGoundView.backgroundColor = color;[self addSubview:self.backGoundView];[self.backGoundView addSubview:self.tableView];}return self;} |
drawRect
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
|
#pragma mark - drawRect- (void)drawRect:(CGRect)rect {// Drawing codeCGContextRef context = UIGraphicsGetCurrentContext();switch (self.type) {case XTTypeOfUpLeft:case XTTypeOfUpCenter:case XTTypeOfUpRight:{{CGFloat startX = self.origin.x;CGFloat startY = self.origin.y;CGContextMoveToPoint(context, startX, startY);CGContextAddLineToPoint(context, startX + Length, startY + Length);CGContextAddLineToPoint(context, startX - Length, startY + Length);}break;}case XTTypeOfDownLeft:case XTTypeOfDownCenter:case XTTypeOfDownRight: {{CGFloat startX = self.origin.x;CGFloat startY = self.origin.y;CGContextMoveToPoint(context, startX, startY);CGContextAddLineToPoint(context, startX - Length, startY - Length);CGContextAddLineToPoint(context, startX + Length, startY - Length);}break;}case XTTypeOfLeftUp:case XTTypeOfLeftCenter:case XTTypeOfLeftDown: {{CGFloat startX = self.origin.x;CGFloat startY = self.origin.y;CGContextMoveToPoint(context, startX, startY);CGContextAddLineToPoint(context, startX + Length, startY - Length);CGContextAddLineToPoint(context, startX + Length, startY + Length);}break;}case XTTypeOfRightUp:case XTTypeOfRightCenter:case XTTypeOfRightDown: {{CGFloat startX = self.origin.x;CGFloat startY = self.origin.y;CGContextMoveToPoint(context, startX, startY);CGContextAddLineToPoint(context, startX - Length, startY - Length);CGContextAddLineToPoint(context, startX - Length, startY + Length);}break;}}CGContextClosePath(context);[self.backGoundView.backgroundColor setFill];[self.backgroundColor setStroke];CGContextDrawPath(context, kCGPathFillStroke);} |
彈出視圖
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
|
#pragma mark - popView- (void)popView{// 同步顯示 子控件和NSArray *results = [self.backGoundView subviews];for (UIView *view in results) {[view setHidden:YES];}UIWindow *windowView = [UIApplication sharedApplication].keyWindow;[windowView addSubview:self];switch (self.type) {case XTTypeOfUpLeft: {{self.backGoundView.frame = CGRectMake(self.origin.x, self.origin.y + Length, 0, 0);CGFloat origin_x = self.origin.x - Length2;CGFloat origin_y = self.origin.y + Length;CGFloat size_width = self.width;CGFloat size_height = self.height;[self startAnimateView_x:origin_x _y:origin_y origin_width:size_width origin_height:size_height];}break;}case XTTypeOfUpCenter: {{self.backGoundView.frame = CGRectMake(self.origin.x, self.origin.y + Length, 0, 0);CGFloat origin_x = self.origin.x - self.width / 2;CGFloat origin_y = self.origin.y + Length;CGFloat size_width = self.width;CGFloat size_height = self.height;[self startAnimateView_x:origin_x _y:origin_y origin_width:size_width origin_height:size_height];}break;}case XTTypeOfUpRight: {{self.backGoundView.frame = CGRectMake(self.origin.x, self.origin.y + Length, 0, 0);CGFloat origin_x = self.origin.x + Length2;CGFloat origin_y = self.origin.y + Length;CGFloat size_width = -self.width;CGFloat size_height = self.height;[self startAnimateView_x:origin_x _y:origin_y origin_width:size_width origin_height:size_height];}break;}case XTTypeOfDownLeft: {{self.backGoundView.frame = CGRectMake(self.origin.x, self.origin.y - Length, 0, 0);CGFloat origin_x = self.origin.x - Length2;CGFloat origin_y = self.origin.y - Length;CGFloat size_width = self.width;CGFloat size_height = -self.height;[self startAnimateView_x:origin_x _y:origin_y origin_width:size_width origin_height:size_height];}break;}case XTTypeOfDownCenter: {{self.backGoundView.frame = CGRectMake(self.origin.x, self.origin.y - Length, 0, 0);CGFloat origin_x = self.origin.x - self.width / 2;CGFloat origin_y = self.origin.y - Length;CGFloat size_width = self.width;CGFloat size_height = -self.height;[self startAnimateView_x:origin_x _y:origin_y origin_width:size_width origin_height:size_height];}break;}case XTTypeOfDownRight: {{self.backGoundView.frame = CGRectMake(self.origin.x, self.origin.y - Length, 0, 0);CGFloat origin_x = self.origin.x-self.width + Length2;CGFloat origin_y = self.origin.y - Length;CGFloat size_width = self.width;CGFloat size_height = -self.height;[self startAnimateView_x:origin_x _y:origin_y origin_width:size_width origin_height:size_height];}break;}case XTTypeOfLeftUp: {{self.backGoundView.frame = CGRectMake(self.origin.x + Length, self.origin.y, 0, 0);CGFloat origin_x = self.origin.x + Length;CGFloat origin_y = self.origin.y - Length2;CGFloat size_width = self.width;CGFloat size_height = self.height;[self startAnimateView_x:origin_x _y:origin_y origin_width:size_width origin_height:size_height];}break;}case XTTypeOfLeftCenter: {{self.backGoundView.frame = CGRectMake(self.origin.x + Length, self.origin.y, 0, 0);CGFloat origin_x = self.origin.x + Length;CGFloat origin_y = self.origin.y - self.height / 2;CGFloat size_width = self.width;CGFloat size_height = self.height;[self startAnimateView_x:origin_x _y:origin_y origin_width:size_width origin_height:size_height];}break;}case XTTypeOfLeftDown: {{self.backGoundView.frame = CGRectMake(self.origin.x + Length, self.origin.y, 0, 0);CGFloat origin_x = self.origin.x + Length;CGFloat origin_y = self.origin.y - self.height + Length2;CGFloat size_width = self.width;CGFloat size_height = self.height;[self startAnimateView_x:origin_x _y:origin_y origin_width:size_width origin_height:size_height];}break;}case XTTypeOfRightUp: {{self.backGoundView.frame = CGRectMake(self.origin.x - Length, self.origin.y, 0, 0);CGFloat origin_x = self.origin.x - Length;CGFloat origin_y = self.origin.y - Length2;CGFloat size_width = -self.width;CGFloat size_height = self.height;[self startAnimateView_x:origin_x _y:origin_y origin_width:size_width origin_height:size_height];}break;}case XTTypeOfRightCenter: {{self.backGoundView.frame = CGRectMake(self.origin.x - Length, self.origin.y, 0, 0);CGFloat origin_x = self.origin.x - Length;CGFloat origin_y = self.origin.y - self.height / 2;CGFloat size_width = -self.width;CGFloat size_height = self.height;[self startAnimateView_x:origin_x _y:origin_y origin_width:size_width origin_height:size_height];}break;}case XTTypeOfRightDown: {{self.backGoundView.frame = CGRectMake(self.origin.x - Length, self.origin.y, 0, 0);CGFloat origin_x = self.origin.x - Length;CGFloat origin_y = self.origin.y - self.height + Length2;CGFloat size_width = -self.width;CGFloat size_height = self.height;[self startAnimateView_x:origin_x _y:origin_y origin_width:size_width origin_height:size_height];}break;}}} |
#pragma mark -
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
|
- (void)startAnimateView_x:(CGFloat) x_y:(CGFloat) yorigin_width:(CGFloat) widthorigin_height:(CGFloat) height{[UIView animateWithDuration:0.25 animations:^{self.backGoundView.frame = CGRectMake(x, y, width, height);}completion:^(BOOL finished) {NSArray *results = [self.backGoundView subviews];for (UIView *view in results) {[view setHidden:NO];}}];} |
點擊空白處回收
|
1
2
3
4
5
6
7
|
#pragma mark -- (void)touchesBegan:(NSSet<UITouch *> *)touches withEvent:(UIEvent *)event{if (![[touches anyObject].view isEqual:self.backGoundView]) {[self dismiss];} } |
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
|
#pragma mark -- (void)dismiss{/*** 刪除 在backGroundView 上的子控件*/NSArray *results = [self.backGoundView subviews];for (UIView *view in results) {[view removeFromSuperview]; }[UIView animateWithDuration:0.25 animations:^{//self.backGoundView.frame = CGRectMake(self.origin.x, self.origin.y, 0, 0);} completion:^(BOOL finished) {//[self removeFromSuperview];}];} |
內部的tableview
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
|
#pragma mark -- (UITableView *)tableView{if (!_tableView) {_tableView = [[UITableView alloc] initWithFrame:CGRectMake(0, 0, self.backGoundView.frame.size.width - 5, self.backGoundView.frame.size.height) style:UITableViewStylePlain];_tableView.dataSource = self;_tableView.backgroundColor = [UIColor clearColor];_tableView.delegate = self;}return _tableView;}#pragma mark -- (NSInteger)tableView:(UITableView *)tableView numberOfRowsInSection:(NSInteger)section{return self.dataArray.count;}#pragma mark -- (CGFloat)tableView:(UITableView *)tableView heightForRowAtIndexPath:(NSIndexPath *)indexPath{if (self.row_height == 0) {return 44;}else{return self.row_height;}}#pragma mark -- (UITableViewCell *)tableView:(UITableView *)tableView cellForRowAtIndexPath:(NSIndexPath *)indexPath{static NSString *cellIdentifier = @"cellIdentifier2";UITableViewCell *cell = [tableView dequeueReusableCellWithIdentifier:cellIdentifier];if (!cell) {cell = [[UITableViewCell alloc] initWithStyle:UITableViewCellStyleSubtitle reuseIdentifier:cellIdentifier];}cell.backgroundColor = [UIColor clearColor];cell.imageView.image = [UIImage imageNamed:self.images[indexPath.row]];cell.textLabel.text = self.dataArray[indexPath.row];cell.textLabel.font = [UIFont systemFontOfSize:self.fontSize];cell.textLabel.textColor = self.titleTextColor;return cell;}// 想要實現點擊進行其他操作, 這里用到了協議- (void)tableView:(UITableView *)tableView didSelectRowAtIndexPath:(NSIndexPath *)indexPath{if (self.delegate && [self.delegate respondsToSelector:@selector(selectIndexPathRow:)]) {[self.delegate selectIndexPathRow:indexPath.row];}} |
##在.h文件還要聲明一份協議
|
1
2
3
|
@protocol selectIndexPathDelegate <NSObject>- (void)selectIndexPathRow:(NSInteger )index;@end |
使用
|
1
|
@interface ViewController ()<selectIndexPathDelegate> |
##你可以在btn的點擊方法里這樣寫
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
|
// 支持多種類型/**XTTypeOfUpLeft, // 上左XTTypeOfUpCenter, // 上中XTTypeOfUpRight, // 上右XTTypeOfDownLeft, // 下左XTTypeOfDownCenter, // 下中XTTypeOfDownRight, // 下右XTTypeOfLeftUp, // 左上XTTypeOfLeftCenter, // 左中XTTypeOfLeftDown, // 左下XTTypeOfRightUp, // 右上XTTypeOfRightCenter,// 右中XTTypeOfRightDown, // 右下*/CGPoint point = CGPointMake(_customBtn.center.x,_customBtn.frame.origin.y + 64);XTPopView *view1 = [[XTPopView alloc] initWithOrigin:point Width:130 Height:40 * 4 Type:XTTypeOfUpRight Color:[UIColor colorWithRed:0.2737 green:0.2737 blue:0.2737 alpha:1.0]];view1.dataArray = @[@"發起群聊",@"添加朋友", @"掃一掃", @"收付款"];view1.images = @[@"發起群聊",@"添加朋友", @"掃一掃", @"付款"];view1.fontSize = 13;view1.row_height = 40;view1.titleTextColor = [UIColor whiteColor];view1.delegate = self;[view1 popView]; |
##想要使用點擊方法 只要實現協議的方法就可以了
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
|
- (void)selectIndexPathRow:(NSInteger)index{switch (index) {case 0:{NSLog(@"Click 0 ......");}break;case 1:{NSLog(@"Clikc 1 ......");}break;case 2:{NSLog(@"Clikc 2 ......");}break;case 3:{NSLog(@"Clikc 3 ......");}break;default:break;}} |
總結
以上就是基于IOS實現帶箭頭的view的全部?jī)?nèi)容，希望對大家開發IOS能有所幫助。
