SpringBoot 使用的websocket 協議，不是標準的websocket協議，使用的是名稱叫做STOMP的協議。
1.1 STOMP協議說明
STOMP，Streaming Text Orientated Message Protocol，是流文本定向消息協議，是一種為MOM(Message Oriented Middleware，面向消息的中間件)設計的簡單文本協議。
它提供了一個可互操作的連接格式，允許STOMP客戶端與任意STOMP消息代理(Broker)進行交互，類似于OpenWire(一種二進制協議)。
由于其設計簡單，很容易開發客戶端，因此在多種語言和多種平臺上得到廣泛應用。其中最流行的STOMP消息代理是Apache ActiveMQ。
1.2 搭建
本人使用的是Inject idea 搭建的springBoot websocket，并未采用熟悉的gradle，而是采用了maven方式搭建。

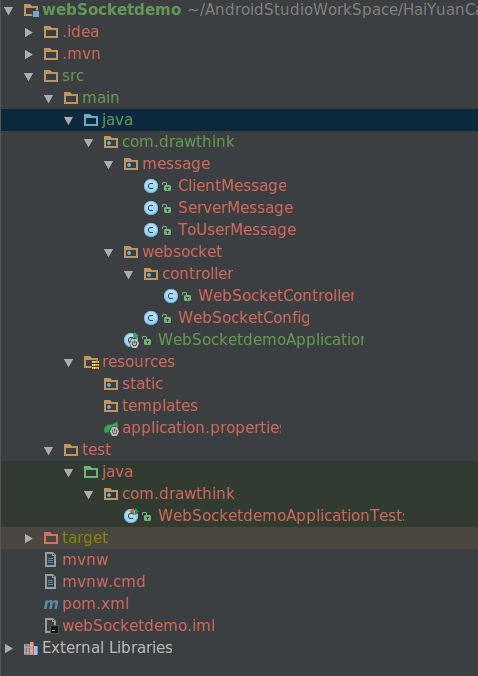

項目結構如下
pom.xml：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
|
<?xml version="1.0" encoding="UTF-8"?><project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <groupId>com.drawthink</groupId> <artifactId>websocketdemo</artifactId> <version>0.0.1-SNAPSHOT</version> <packaging>jar</packaging> <name>webSocketdemo</name> <description>webSocketDemo project for Spring Boot</description> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>1.3.6.RELEASE</version> <relativePath/> <!-- lookup parent from repository --> </parent> <properties> <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding> <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding> <java.version>1.8</java.version> </properties> <dependencies> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-thymeleaf</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-websocket</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> <scope>test</scope> </dependency> </dependencies> <build> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> </plugin> </plugins> </build></project> |
Application：
|
1
2
3
4
5
6
7
8
9
10
11
12
|
package com.drawthink;import org.springframework.boot.SpringApplication;import org.springframework.boot.autoconfigure.SpringBootApplication;@SpringBootApplicationpublic class WebSocketdemoApplication { public static void main(String[] args) { SpringApplication.run(WebSocketdemoApplication.class, args); }} |
WebSocketConfig
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
|
package com.drawthink.websocket;import org.springframework.context.annotation.Configuration;import org.springframework.messaging.simp.config.MessageBrokerRegistry;import org.springframework.web.socket.config.annotation.AbstractWebSocketMessageBrokerConfigurer;import org.springframework.web.socket.config.annotation.EnableWebSocketMessageBroker;import org.springframework.web.socket.config.annotation.StompEndpointRegistry;/** * Created by lincoln on 16-10-25 */@Configuration@EnableWebSocketMessageBrokerpublic class WebSocketConfig extends AbstractWebSocketMessageBrokerConfigurer { @Override public void registerStompEndpoints(StompEndpointRegistry stompEndpointRegistry) { //允許使用socketJs方式訪問，訪問點為hello，允許跨域 stompEndpointRegistry.addEndpoint("/hello").setAllowedOrigins("*").withSockJS(); } @Override public void configureMessageBroker(MessageBrokerRegistry registry) { //訂閱Broker名稱 registry.enableSimpleBroker("/topic","/user"); //全局使用的訂閱前綴（客戶端訂閱路徑上會體現出來） registry.setApplicationDestinationPrefixes("/app/"); //點對點使用的訂閱前綴（客戶端訂閱路徑上會體現出來），不設置的話，默認也是/user/ //registry.setUserDestinationPrefix("/user/"); }} |
WebSocketController
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
|
package com.drawthink.websocket.controller;import com.drawthink.message.ClientMessage;import com.drawthink.message.ServerMessage;import com.drawthink.message.ToUserMessage;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.messaging.handler.annotation.MessageMapping;import org.springframework.messaging.handler.annotation.SendTo;import org.springframework.messaging.simp.SimpMessagingTemplate;import org.springframework.stereotype.Controller;/** * Created by lincoln on 16-10-25 */@Controllerpublic class WebSocketController { @MessageMapping("/welcome") //SendTo 發送至 Broker 下的指定訂閱路徑 @SendTo("/topic/getResponse") public ServerMessage say(ClientMessage clientMessage){ //方法用于廣播測試 System.out.println("clientMessage.getName() = " + clientMessage.getName()); return new ServerMessage("Welcome , "+clientMessage.getName()+" !"); } //注入SimpMessagingTemplate 用于點對點消息發送 @Autowired private SimpMessagingTemplate messagingTemplate; @MessageMapping("/cheat") // 發送的訂閱路徑為/user/{userId}/message // /user/路徑是默認的一個，如果想要改變，必須在config 中setUserDestinationPrefix public void cheatTo(ToUserMessage toUserMessage){ //方法用于點對點測試 System.out.println("toUserMessage.getMessage() = " + toUserMessage.getMessage()); System.out.println("toUserMessage.getUserId() = " + toUserMessage.getUserId()); messagingTemplate.convertAndSendToUser(toUserMessage.getUserId(),"/message",toUserMessage.getMessage()); }} |
Vo
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
|
package com.drawthink.message;/** * Created by lincoln on 16-10-25 */public class ClientMessage { private String name; public String getName() { return name; } public void setName(String name) { this.name = name; }} |
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
|
package com.drawthink.message;/** * Created by lincoln on 16-10-25 */public class ServerMessage { private String responseMessage; public ServerMessage(String responseMessage) { this.responseMessage = responseMessage; } public String getResponseMessage() { return responseMessage; } public void setResponseMessage(String responseMessage) { this.responseMessage = responseMessage; }} |
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
|
package com.drawthink.message;/** * Created by lincoln on 16-10-25 */public class ToUserMessage { private String userId; private String message; public String getUserId() { return userId; } public void setUserId(String userId) { this.userId = userId; } public String getMessage() { return message; } public void setMessage(String message) { this.message = message; }} |
Android 客戶端
STOMP協議在Android系統中沒有默認實現，必須自行去實現。不過好消息是，開源大神們已經完成了Android上使用STOMP協議的實現，所以我們只需要使用就好了。
搭建
build.gradle(app)
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
|
apply plugin: 'com.android.application'android { compileSdkVersion 24 buildToolsVersion "24.0.3" defaultConfig { applicationId "com.drawthink.websocket" minSdkVersion 16 targetSdkVersion 24 versionCode 1 versionName "1.0" testInstrumentationRunner "android.support.test.runner.AndroidJUnitRunner" } buildTypes { release { minifyEnabled false proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro' } }}dependencies { compile fileTree(include: ['*.jar'], dir: 'libs') androidTestCompile('com.android.support.test.espresso:espresso-core:2.2.2', { exclude group: 'com.android.support', module: 'support-annotations' }) compile 'com.android.support:appcompat-v7:24.2.1' testCompile 'junit:junit:4.12' //依賴STOMP協議的Android實現 compile 'com.github.NaikSoftware:StompProtocolAndroid:1.1.1' //StompProtocolAndroid 依賴于webSocket的標準實現 compile 'org.java-websocket:Java-WebSocket:1.3.0'} |
接收廣播實例：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
|
package com.drawthink.websocket;import android.content.Intent;import android.os.Bundle;import android.support.v7.app.AppCompatActivity;import android.util.Log;import android.view.View;import android.widget.Button;import android.widget.EditText;import android.widget.TextView;import android.widget.Toast;import org.java_websocket.WebSocket;import rx.Subscriber;import rx.functions.Action1;import ua.naiksoftware.stomp.LifecycleEvent;import ua.naiksoftware.stomp.Stomp;import ua.naiksoftware.stomp.client.StompClient;import ua.naiksoftware.stomp.client.StompMessage;import static android.content.ContentValues.TAG;public class MainActivity extends AppCompatActivity { private TextView serverMessage; private Button start; private Button stop; private Button send; private EditText editText; private StompClient mStompClient; private Button cheat; @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); bindView(); start.setOnClickListener(new View.OnClickListener() { @Override public void onClick(View v) { //創建client 實例 createStompClient(); //訂閱消息 registerStompTopic(); } }); send.setOnClickListener(new View.OnClickListener() { @Override public void onClick(View v) { mStompClient.send("/app/welcome","{\"name\":\""+editText.getText()+"\"}") .subscribe(new Subscriber<Void>() { @Override public void onCompleted() { toast("發送成功"); } @Override public void onError(Throwable e) { e.printStackTrace(); toast("發送錯誤"); } @Override public void onNext(Void aVoid) { } }); } }); stop.setOnClickListener(new View.OnClickListener() { @Override public void onClick(View v) { mStompClient.disconnect(); } }); cheat.setOnClickListener(new View.OnClickListener() { @Override public void onClick(View v) { startActivity(new Intent(MainActivity.this,CheatActivity.class)); if(mStompClient != null) { mStompClient.disconnect(); } finish(); } }); } private void showMessage(final StompMessage stompMessage) { runOnUiThread(new Runnable() { @Override public void run() { serverMessage.setText("stomp command is --->"+stompMessage.getStompCommand() +" body is --->"+stompMessage.getPayload()); } }); } //創建client 實例 private void createStompClient() { mStompClient = Stomp.over(WebSocket.class, "ws://192.168.0.46:8080/hello/websocket"); mStompClient.connect(); Toast.makeText(MainActivity.this,"開始連接 192.168.0.46:8080",Toast.LENGTH_SHORT).show(); mStompClient.lifecycle().subscribe(new Action1<LifecycleEvent>() { @Override public void call(LifecycleEvent lifecycleEvent) { switch (lifecycleEvent.getType()) { case OPENED: Log.d(TAG, "Stomp connection opened"); toast("連接已開啟"); break; case ERROR: Log.e(TAG, "Stomp Error", lifecycleEvent.getException()); toast("連接出錯"); break; case CLOSED: Log.d(TAG, "Stomp connection closed"); toast("連接關閉"); break; } } }); } //訂閱消息 private void registerStompTopic() { mStompClient.topic("/topic/getResponse").subscribe(new Action1<StompMessage>() { @Override public void call(StompMessage stompMessage) { Log.e(TAG, "call: " +stompMessage.getPayload() ); showMessage(stompMessage); } }); } private void toast(final String message) { runOnUiThread(new Runnable() { @Override public void run() { Toast.makeText(MainActivity.this,message,Toast.LENGTH_SHORT).show(); } }); } private void bindView() { serverMessage = (TextView) findViewById(R.id.serverMessage); start = (Button) findViewById(R.id.start); stop = (Button) findViewById(R.id.stop); send = (Button) findViewById(R.id.send); editText = (EditText) findViewById(R.id.clientMessage); cheat = (Button) findViewById(R.id.cheat); }} |
點對點
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
|
package com.drawthink.websocket;import android.os.Bundle;import android.support.v7.app.AppCompatActivity;import android.util.Log;import android.view.View;import android.widget.Button;import android.widget.EditText;import android.widget.LinearLayout;import android.widget.TextView;import android.widget.Toast;import org.java_websocket.WebSocket;import rx.Subscriber;import rx.functions.Action1;import ua.naiksoftware.stomp.LifecycleEvent;import ua.naiksoftware.stomp.Stomp;import ua.naiksoftware.stomp.client.StompClient;import ua.naiksoftware.stomp.client.StompMessage;import static android.content.ContentValues.TAG;public class CheatActivity extends AppCompatActivity { private EditText cheat; private Button send; private LinearLayout message; private StompClient mStompClient; @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_cheat); bindView(); createStompClient(); registerStompTopic(); send.setOnClickListener(new View.OnClickListener() { @Override public void onClick(View v) { // 向/app/cheat發送Json數據 mStompClient.send("/app/cheat","{\"userId\":\"lincoln\",\"message\":\""+cheat.getText()+"\"}") .subscribe(new Subscriber<Void>() { @Override public void onCompleted() { toast("發送成功"); } @Override public void onError(Throwable e) { e.printStackTrace(); toast("發送錯誤"); } @Override public void onNext(Void aVoid) { } }); } }); } private void bindView() { cheat = (EditText) findViewById(R.id.cheat); send = (Button) findViewById(R.id.send); message = (LinearLayout) findViewById(R.id.message); } private void createStompClient() { mStompClient = Stomp.over(WebSocket.class, "ws://192.168.0.46:8080/hello/websocket"); mStompClient.connect(); Toast.makeText(CheatActivity.this,"開始連接 192.168.0.46:8080",Toast.LENGTH_SHORT).show(); mStompClient.lifecycle().subscribe(new Action1<LifecycleEvent>() { @Override public void call(LifecycleEvent lifecycleEvent) { switch (lifecycleEvent.getType()) { case OPENED: Log.d(TAG, "Stomp connection opened"); toast("連接已開啟"); break; case ERROR: Log.e(TAG, "Stomp Error", lifecycleEvent.getException()); toast("連接出錯"); break; case CLOSED: Log.d(TAG, "Stomp connection closed"); toast("連接關閉"); break; } } }); } // 接收/user/xiaoli/message路徑發布的消息 private void registerStompTopic() { mStompClient.topic("/user/xiaoli/message").subscribe(new Action1<StompMessage>() { @Override public void call(StompMessage stompMessage) { Log.e(TAG, "call: " +stompMessage.getPayload() ); showMessage(stompMessage); } }); } private void showMessage(final StompMessage stompMessage) { runOnUiThread(new Runnable() { @Override public void run() { TextView text = new TextView(CheatActivity.this); text.setLayoutParams(new LinearLayout.LayoutParams(LinearLayout.LayoutParams.MATCH_PARENT, LinearLayout.LayoutParams.WRAP_CONTENT)); text.setText(System.currentTimeMillis() +" body is --->"+stompMessage.getPayload()); message.addView(text); } }); } private void toast(final String message) { runOnUiThread(new Runnable() { @Override public void run() { Toast.makeText(CheatActivity.this,message,Toast.LENGTH_SHORT).show(); } }); }} |
代碼比較亂，說明一下。
1、STOMP 使用的時候，關鍵是發布訂閱的關系，使用過消息隊列，例如rabbitMQ的應該很容易理解。
服務器端 WebSocketConfig.Java文件控制的就是訂閱發布的路徑關系。
2、websocket的路徑說明，本例中連接的是ws://192.168.0.46:8080/hello/websocket路徑，/hello是在WebSocketConfig的stompEndpointRegistry.addEndpoint(“/hello”).setAllowedOrigins(““).withSockJS();*確定的， 如果有多個endpoint，這個地方的路徑也會隨之變化。
3、發布路徑
發布信息的路徑是由WebSocketConfig中的 setApplicationDestinationPrefixes(“/app/”); 和 Controller 中@MessageMapping(“/welcome”) 組合確定的。
例如發廣播消息，路徑為/app/welcome
例如發點對點消息，路徑為/app/cheat
4、消息訂閱路徑
訂閱broker源自WebSocketConfig中的registry.enableSimpleBroker(“/topic”,”/user”);此處開放了兩個broker，具體的訂閱服務路徑給基于Controller中的 @SendTo(“/topic/getResponse”)或SimpMessagingTemplate中給定。（注：此處，服務器和客戶端須約定訂閱路徑）
5、關于心跳
訂閱發布模型的心跳很簡單，客戶端向一個指定的心跳路徑發送心跳，服務器處理，服務器使用指定的訂閱路徑向客戶端發心跳，即可。因為沒有Socket，只需要記錄是否聯通的狀態即可，重連客戶端做一下就好了。
本人菜鳥，肯定有些地方?jīng)]有搞清楚，如果有誤，請大神斧正。
代碼下載地址：blogRepository.rar
以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持服務器之家。
原文鏈接：http://blog.csdn.net/soslinken/article/details/53021510
