我以為動態停啟定時任務一般用quartz，沒想到還可以通過ScheduledTaskRegistrar來拓展。但是分布式場景，建議還是用quartz吧！
在 spring boot 項目中，可以通過 @EnableScheduling 注解和 @Scheduled 注解實現定時任務，也可以通過 SchedulingConfigurer 接口來實現定時任務。但是這兩種方式不能動態添加、刪除、啟動、停止任務。要實現動態增刪啟停定時任務功能，比較廣泛的做法是集成 Quartz 框架。
但是本人的開發原則是：在滿足項目需求的情況下，盡量少的依賴其它框架，避免項目過于臃腫和復雜。查看 spring-context 這個 jar 包中 org.springframework.scheduling.ScheduledTaskRegistrar 這個類的源代碼，發現可以通過改造這個類就能實現動態增刪啟停定時任務功能。

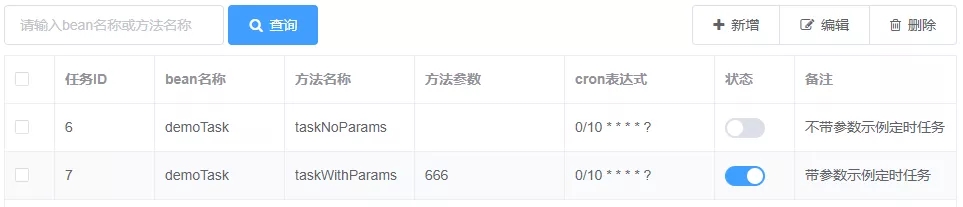

定時任務列表頁

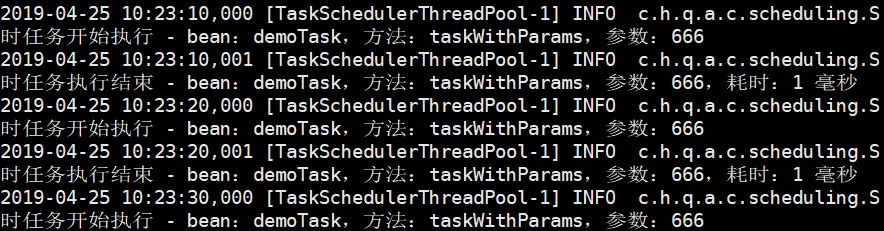

定時任務執行日志
添加執行定時任務的線程池配置類
|
1
2
3
4
5
6
7
8
9
10
11
12
|
@Configurationpublic class SchedulingConfig { @Bean public TaskScheduler taskScheduler() { ThreadPoolTaskScheduler taskScheduler = new ThreadPoolTaskScheduler(); taskScheduler.setPoolSize(4); taskScheduler.setRemoveOnCancelPolicy(true); taskScheduler.setThreadNamePrefix("TaskSchedulerThreadPool-"); return taskScheduler; }} |
添加 ScheduledFuture 的包裝類。ScheduledFuture 是 ScheduledExecutorService 定時任務線程池的執行結果。
|
1
2
3
4
5
6
7
8
9
10
11
12
|
public final class ScheduledTask { volatile ScheduledFuture<?> future; public void cancel() { ScheduledFuture<?> future = this.future; if (future != null) { future.cancel(true); } }} |
添加 Runnable 接口實現類，被定時任務線程池調用，用來執行指定 bean 里面的方法。
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
|
public class SchedulingRunnable implements Runnable { private static final Logger logger = LoggerFactory.getLogger(SchedulingRunnable.class); private String beanName; private String methodName; private String params; public SchedulingRunnable(String beanName, String methodName) { this(beanName, methodName, null); } public SchedulingRunnable(String beanName, String methodName, String params) { this.beanName = beanName; this.methodName = methodName; this.params = params; } @Override public void run() { logger.info("定時任務開始執行 - bean：{}，方法：{}，參數：{}", beanName, methodName, params); long startTime = System.currentTimeMillis(); try { Object target = SpringContextUtils.getBean(beanName); Method method = null; if (StringUtils.isNotEmpty(params)) { method = target.getClass().getDeclaredMethod(methodName, String.class); } else { method = target.getClass().getDeclaredMethod(methodName); } ReflectionUtils.makeAccessible(method); if (StringUtils.isNotEmpty(params)) { method.invoke(target, params); } else { method.invoke(target); } } catch (Exception ex) { logger.error(String.format("定時任務執行異常 - bean：%s，方法：%s，參數：%s ", beanName, methodName, params), ex); } long times = System.currentTimeMillis() - startTime; logger.info("定時任務執行結束 - bean：{}，方法：{}，參數：{}，耗時：{} 毫秒", beanName, methodName, params, times); } @Override public boolean equals(Object o) { if (this == o) return true; if (o == null || getClass() != o.getClass()) return false; SchedulingRunnable that = (SchedulingRunnable) o; if (params == null) { return beanName.equals(that.beanName) && methodName.equals(that.methodName) && that.params == null; } return beanName.equals(that.beanName) && methodName.equals(that.methodName) && params.equals(that.params); } @Override public int hashCode() { if (params == null) { return Objects.hash(beanName, methodName); } return Objects.hash(beanName, methodName, params); }} |
添加定時任務注冊類，用來增加、刪除定時任務。
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
|
@Componentpublic class CronTaskRegistrar implements DisposableBean { private final Map<Runnable, ScheduledTask> scheduledTasks = new ConcurrentHashMap<>(16); @Autowired private TaskScheduler taskScheduler; public TaskScheduler getScheduler() { return this.taskScheduler; } public void addCronTask(Runnable task, String cronExpression) { addCronTask(new CronTask(task, cronExpression)); } public void addCronTask(CronTask cronTask) { if (cronTask != null) { Runnable task = cronTask.getRunnable(); if (this.scheduledTasks.containsKey(task)) { removeCronTask(task); } this.scheduledTasks.put(task, scheduleCronTask(cronTask)); } } public void removeCronTask(Runnable task) { ScheduledTask scheduledTask = this.scheduledTasks.remove(task); if (scheduledTask != null) scheduledTask.cancel(); } public ScheduledTask scheduleCronTask(CronTask cronTask) { ScheduledTask scheduledTask = new ScheduledTask(); scheduledTask.future = this.taskScheduler.schedule(cronTask.getRunnable(), cronTask.getTrigger()); return scheduledTask; } @Override public void destroy() { for (ScheduledTask task : this.scheduledTasks.values()) { task.cancel(); } this.scheduledTasks.clear(); }} |
添加定時任務示例類
|
1
2
3
4
5
6
7
8
9
10
|
@Component("demoTask")public class DemoTask { public void taskWithParams(String params) { System.out.println("執行有參示例任務：" + params); } public void taskNoParams() { System.out.println("執行無參示例任務"); }} |

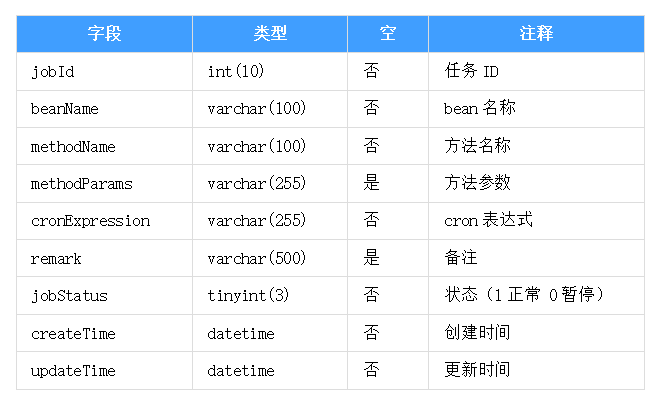

定時任務數據庫表設計
定時任務數據庫表設計
添加定時任務實體類
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
|
public class SysJobPO { private Integer jobId; private String beanName; private String methodName; private String methodParams; private String cronExpression; private Integer jobStatus; private String remark; private Date createTime; private Date updateTime; public Integer getJobId() { return jobId; } public void setJobId(Integer jobId) { this.jobId = jobId; } public String getBeanName() { return beanName; } public void setBeanName(String beanName) { this.beanName = beanName; } public String getMethodName() { return methodName; } public void setMethodName(String methodName) { this.methodName = methodName; } public String getMethodParams() { return methodParams; } public void setMethodParams(String methodParams) { this.methodParams = methodParams; } public String getCronExpression() { return cronExpression; } public void setCronExpression(String cronExpression) { this.cronExpression = cronExpression; } public Integer getJobStatus() { return jobStatus; } public void setJobStatus(Integer jobStatus) { this.jobStatus = jobStatus; } public String getRemark() { return remark; } public void setRemark(String remark) { this.remark = remark; } public Date getCreateTime() { return createTime; } public void setCreateTime(Date createTime) { this.createTime = createTime; } public Date getUpdateTime() { return updateTime; } public void setUpdateTime(Date updateTime) { this.updateTime = updateTime; }} |

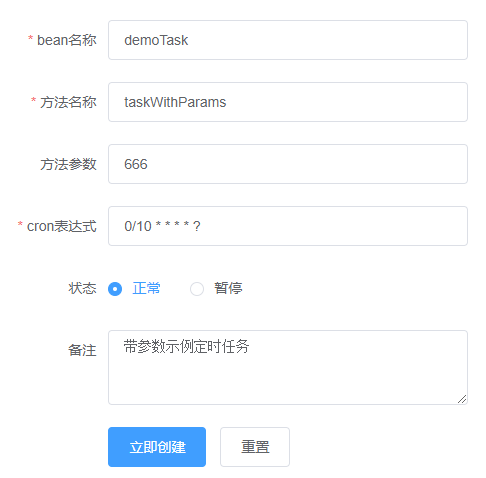

新增定時任務
新增定時任務
|
1
2
3
4
5
6
7
8
9
10
11
|
boolean success = sysJobRepository.addSysJob(sysJob);if (!success) return OperationResUtils.fail("新增失敗");else { if (sysJob.getJobStatus().equals(SysJobStatus.NORMAL.ordinal())) { SchedulingRunnable task = new SchedulingRunnable(sysJob.getBeanName(), sysJob.getMethodName(), sysJob.getMethodParams()); cronTaskRegistrar.addCronTask(task, sysJob.getCronExpression()); }}return OperationResUtils.success(); |
修改定時任務，先移除原來的任務，再啟動新任務
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
|
boolean success = sysJobRepository.editSysJob(sysJob);if (!success) return OperationResUtils.fail("編輯失敗");else { if (existedSysJob.getJobStatus().equals(SysJobStatus.NORMAL.ordinal())) { SchedulingRunnable task = new SchedulingRunnable(existedSysJob.getBeanName(), existedSysJob.getMethodName(), existedSysJob.getMethodParams()); cronTaskRegistrar.removeCronTask(task); } if (sysJob.getJobStatus().equals(SysJobStatus.NORMAL.ordinal())) { SchedulingRunnable task = new SchedulingRunnable(sysJob.getBeanName(), sysJob.getMethodName(), sysJob.getMethodParams()); cronTaskRegistrar.addCronTask(task, sysJob.getCronExpression()); }}return OperationResUtils.success(); |
刪除定時任務
|
1
2
3
4
5
6
7
8
9
10
11
|
boolean success = sysJobRepository.deleteSysJobById(req.getJobId());if (!success) return OperationResUtils.fail("刪除失敗");else{ if (existedSysJob.getJobStatus().equals(SysJobStatus.NORMAL.ordinal())) { SchedulingRunnable task = new SchedulingRunnable(existedSysJob.getBeanName(), existedSysJob.getMethodName(), existedSysJob.getMethodParams()); cronTaskRegistrar.removeCronTask(task); }}return OperationResUtils.success(); |
定時任務啟動 / 停止狀態切換
|
1
2
3
4
5
6
7
|
if (existedSysJob.getJobStatus().equals(SysJobStatus.NORMAL.ordinal())) { SchedulingRunnable task = new SchedulingRunnable(existedSysJob.getBeanName(), existedSysJob.getMethodName(), existedSysJob.getMethodParams()); cronTaskRegistrar.addCronTask(task, existedSysJob.getCronExpression());} else { SchedulingRunnable task = new SchedulingRunnable(existedSysJob.getBeanName(), existedSysJob.getMethodName(), existedSysJob.getMethodParams()); cronTaskRegistrar.removeCronTask(task);} |
添加實現了 CommandLineRunner 接口的 SysJobRunner 類，當 spring boot 項目啟動完成后，加載數據庫里狀態為正常的定時任務。
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
|
@Servicepublic class SysJobRunner implements CommandLineRunner { private static final Logger logger = LoggerFactory.getLogger(SysJobRunner.class); @Autowired private ISysJobRepository sysJobRepository; @Autowired private CronTaskRegistrar cronTaskRegistrar; @Override public void run(String... args) { List<SysJobPO> jobList = sysJobRepository.getSysJobListByStatus(SysJobStatus.NORMAL.ordinal()); if (CollectionUtils.isNotEmpty(jobList)) { for (SysJobPO job : jobList) { SchedulingRunnable task = new SchedulingRunnable(job.getBeanName(), job.getMethodName(), job.getMethodParams()); cronTaskRegistrar.addCronTask(task, job.getCronExpression()); } logger.info("定時任務已加載完畢..."); } }} |
工具類 SpringContextUtils，用來從 spring 容器里獲取 bean
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
|
@Componentpublic class SpringContextUtils implements ApplicationContextAware { private static ApplicationContext applicationContext; @Override public void setApplicationContext(ApplicationContext applicationContext) throws BeansException { SpringContextUtils.applicationContext = applicationContext; } public static Object getBean(String name) { return applicationContext.getBean(name); } public static <T> T getBean(Class<T> requiredType) { return applicationContext.getBean(requiredType); } public static <T> T getBean(String name, Class<T> requiredType) { return applicationContext.getBean(name, requiredType); } public static boolean containsBean(String name) { return applicationContext.containsBean(name); } public static boolean isSingleton(String name) { return applicationContext.isSingleton(name); } public static Class<? extends Object> getType(String name) { return applicationContext.getType(name); }} |
總結
到此這篇關于Spring Boot如何實現定時任務的動態增刪啟停的文章就介紹到這了,更多相關SpringBoot定時任務的動態增刪啟停內容請搜索服務器之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持服務器之家！
