一、寫在前面
最近需要把阿里云上的四臺服務器的項目遷移到客戶提供的新的項目中，原來的四臺服務器中用到了一級域名和二級域名。比如aaa.abc.com 和bbb.abc.com 和ccc.abc.com。其中aaa.abc.com登錄，通過把cookie中的信息setDomain給.abc.com。其他系統可以共享這個cookie。但是新的四臺服務器中并沒有申請域名，只有四個ip:
192.168.0.1 單點登錄服務器
192.168.0.2
192.168.0.3
192.168.0.4
因?yàn)槊颗_(tái)服務器有兩個項目，都用到單點登錄，所以通過修改新的共享登錄方式花費時間太多，于是在網上搜cookie的跨域登錄，嘗試了下，在192.168.0.1 單點登錄服務器中多次setDomain分別給2、3、4服務器，結果不理想，因?yàn)闉g覽器不允許。后來無意中看到nginx可以通過欺騙的方式共享cookie。于是想到原來公司部署nginx還有這層用法。
二、原來的nginx配置
先說下nginx的安裝，這個網上都有很多教程，不在贅述，我是參照于在Linux里安裝、啟動nginx。需要注意的是./configure后面的各種with，我在配置啟動過程遇到了一些問題:
|
1
|
nginx: [emerg] unknown directive "aio" in |
加上--with-file-aio
復制代碼 代碼如下:
Starting nginx: nginx: [emerg] the INET6 sockets are not supported on this platform in “[::]:80” of the
在后面加上--with-ipv6好使。
安裝完成后。主要是nginx.conf的配置
原來服務器的配置nginx.conf：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
|
# For more information on configuration, see:# * Official English Documentation: http://nginx.org/en/docs/# * Official Russian Documentation: http://nginx.org/ru/docs/user root;worker_processes 2;worker_cpu_affinity 1000 0100;error_log logs/error.log;pid logs/nginx.pid;events { worker_connections 2048;}http { log_format main '$remote_addr - $remote_user [$time_local] "$request" ' '$status $body_bytes_sent "$http_referer" ' '"$http_user_agent" "$http_x_forwarded_for"'; access_log logs/access.log main; gzip on; gzip_min_length 1000; gzip_buffers 4 8k; gzip_types text/plain application/javascript application/x-javascript text/css application/xml; client_max_body_size 8M; client_body_buffer_size 128k; sendfile on; tcp_nopush on; tcp_nodelay on; keepalive_timeout 65; types_hash_max_size 2048; include mime.types; default_type application/octet-stream; connection_pool_size 512; aio on; open_file_cache max=1000 inactive=20s; # Load modular configuration files from the /etc/nginx/conf.d directory. # See http://nginx.org/en/docs/ngx_core_module.html#include # for more information. # 主要配置在這里，nginx.conf配置都是一樣 include /usr/local/nginx/conf/conf.d/*.conf; server { listen 80 default_server; listen [::]:80 ipv6only=on default_server; server_name _; root html; # Load configuration files for the default server block. include /usr/local/nginx/conf/default.d/*.conf; location / { } error_page 404 /404.html; location = /40x.html { } error_page 500 502 503 504 /50x.html; location = /50x.html { } }} |
原來服務器的
conf.d/*.conf的配置是reverse-proxy.conf
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
|
server{ listen 80; server_name m.abc.com.cn; location / { root /usr/share/nginx/html/; index index.html index.htm; } location ~ .(jsp|do)?$ { proxy_redirect off; proxy_set_header Host $host; proxy_set_header X-Real-IP $remote_addr; proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; proxy_pass http://localhost:8084; } if ($http_user_agent ~* "qihoobot|Baiduspider|Googlebot|Googlebot-Mobile|Googlebot-Image|Mediapartners-Google|Adsbot-Google|Feedfetcher-Google|Yahoo! Slurp|Yahoo! Slurp China|YoudaoBot|Sosospider|Sogou spider|Sogou web spider|MSNBot|ia_archiver|Tomato Bot") { return 403; } access_log /home/logs/nginx/m.abc.com.cn_access.log;} server{ listen 80; server_name store.abc.com.cn *.store.abc.com.cn; location / { proxy_redirect off; proxy_set_header Host $host; proxy_set_header X-Real-IP $remote_addr; proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; proxy_pass http://localhost:8081; } access_log /home/logs/nginx/store.abc.com.cn_access.log;}server{ listen 80; server_name shopcenter.abc.com.cn; location / { proxy_redirect off; proxy_set_header Host $host; proxy_set_header X-Real-IP $remote_addr; proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; proxy_pass http://10.45.100.222:8082; } access_log /home/logs/nginx/shopcenter.abc.com.cn_access.log;} server{ listen 80; server_name search.abc.com.cn; location / { proxy_redirect off; proxy_set_header Host $host; proxy_set_header X-Real-IP $remote_addr; proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; proxy_pass http://10.45.100.68:8083; } access_log /home/logs/nginx/search.abc.com.cn_access.log;} |
以上配置后，nginx啟動后，通過訪問不同的域名來訪問不同服務器。而因?yàn)槎加卸?jí)域名.abc.com.cn。所以可以共享cookie。

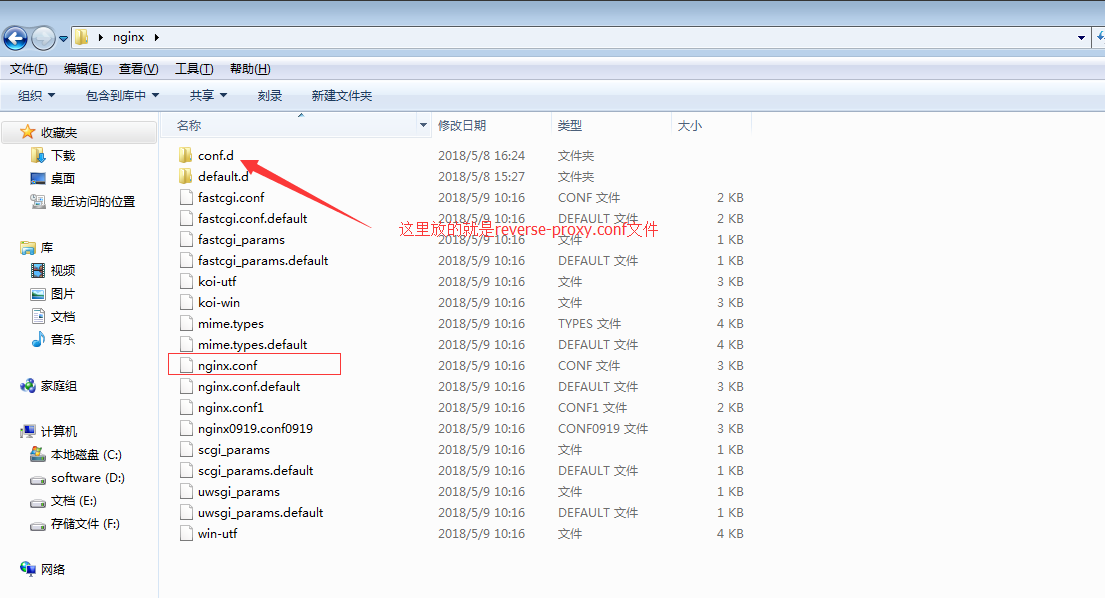

nginx的文件結構為：
三、修改后的nginx配置
主要是reverse-proxy.conf 不同
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
|
server{ listen 9998; server_name 192.168.0.1:9998; location /servlets/ { proxy_redirect off; proxy_set_header Host $host; proxy_set_header X-Real-IP $remote_addr; proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; proxy_pass http://192.168.0.1:8088; } location / { root /usr/local/nginx/html/web/; index index.html index.htm; } location ~ .(jsp|do)?$ { proxy_redirect off; proxy_set_header Host $host; proxy_set_header X-Real-IP $remote_addr; proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; proxy_pass http://192.168.0.1:8088; proxy_http_version 1.1; proxy_set_header Upgrade $http_upgrade; proxy_set_header Connection "upgrade"; proxy_read_timeout 700s; } if ($http_user_agent ~* "qihoobot|Baiduspider|Googlebot|Googlebot-Mobile|Googlebot-Image|Mediapartners-Google|Adsbot-Google|Feedfetcher-Google|Yahoo! Slurp|Yahoo! Slurp China|YoudaoBot|Sosospider|Sogou spider|Sogou web spider|MSNBot|ia_archiver|Tomato Bot") { return 403; } access_log /usr/local/nginx/logs/www.abc.com.cn_access.log;}server{ listen 9994; server_name 192.168.0.1:9994; location / { proxy_redirect off; root /usr/local/nginx/html/weixin/; index index.html index.htm; } location ~ .(jsp|do)?$ { proxy_redirect off; proxy_set_header Host $host; proxy_set_header X-Real-IP $remote_addr; proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; proxy_pass http://localhost:8084; } if ($http_user_agent ~* "qihoobot|Baiduspider|Googlebot|Googlebot-Mobile|Googlebot-Image|Mediapartners-Google|Adsbot-Google|Feedfetcher-Google|Yahoo! Slurp|Yahoo! Slurp China|YoudaoBot|Sosospider|Sogou spider|Sogou web spider|MSNBot|ia_archiver|Tomato Bot") { return 403; } access_log /usr/local/nginx/logs/m.abc.com.cn_access.log;} server{ listen 9990; server_name store.abc.com.cn *.store.abc.com.cn; location / { proxy_redirect off; proxy_set_header Host $host; proxy_set_header X-Real-IP $remote_addr; proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; proxy_pass http://localhost:8081; } access_log /usr/local/nginx/logs/store.abc.com.cn_access.log;}server{ listen 9992; server_name 192.168.0.1:9992; location / { proxy_redirect off; proxy_set_header Host $host; proxy_set_header X-Real-IP $remote_addr; proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; proxy_pass http://192.168.0.2:8082; } access_log /usr/local/nginx/logs/shopcenter.abc.com.cn_access.log;} server{ listen 9993; server_name 192.168.0.1:9993; location / { proxy_redirect off; proxy_set_header Host $host; proxy_set_header X-Real-IP $remote_addr; proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; proxy_pass http://192.168.0.3:8083; } access_log /usr/local/nginx/logs/search.abc.com.cn_access.log;} |
這樣就可以把192.168.0.1:9998 當做單點服務器，登錄后的domain都為192.168.0.1 。其他的0.2、0.3都可以通過192.168.0.1nginx和單點服務器的不同端口訪問，那么就可以共享這個0.1的域名了。
四、最后
好吧，可能描述的不是那么清楚，有點亂。我所做的工作就是把原來的nginx配置中的端口和域名改成新服務器中的唯一一個ip把這個ip當做那個域名，不同端口對應不同二級域名。
