Oracle數據泵(Data Dump)使用過程當中經常會遇到一些奇奇怪怪的錯誤案例，下面總結一些自己使用數據泵(Data Dump)過程當中遇到的問題以及解決方法。都是在使用過程中遇到的問題，以后陸續遇到數據泵(Data Dump)的錯誤案例，都會補充在此篇。
錯誤案例1：
ORA-39065： DISPATCH 中出現意外的主進程異常錯誤；ORA-44002: 對象名無效

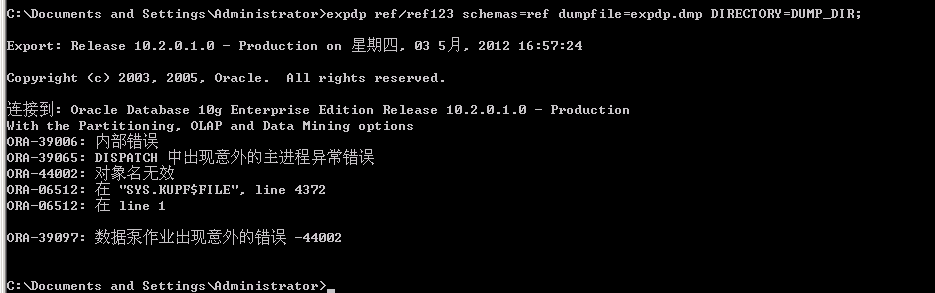

Windows 平臺錯誤提示：

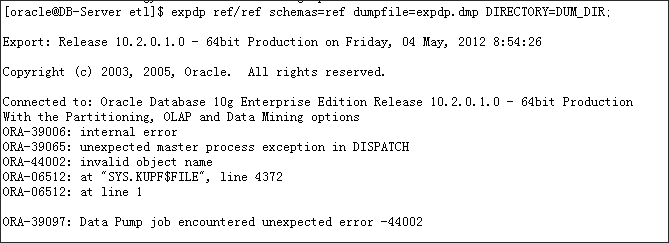

Linux平臺錯誤提示
解決方法：
|
1
2
3
4
5
6
7
8
9
10
11
|
[oracle@DB-Server admin]$ oerr ora 3906539065, 00000, "unexpected master process exception in %s"// *Cause: An unhandled exception was detected internally within the master// control process for the Data Pump job. This is an internal error.// messages will detail the problems.// *Action: If problem persists, contact Oracle Customer Support.[oracle@DB-Server admin]$ oerr ora 3909739097, 00000, "Data Pump job encountered unexpected error %s"// *Cause: An unexpected, potentially non-fatal error occurred while// processing a Data Pump job.// *Action: Contact Oracle Customer Support. |
執行$ORACLE_HOME/rdbms/admin目錄下面的catmet2.sql，utlrp.sql 兩個SQL文件即可解決這個問題。
|
1
2
3
4
5
6
7
8
9
10
11
12
13
|
[oracle@DB-Server ~]$ cd $ORACLE_HOME/rdbms/admin [oracle@DB-Server admin]$ sqlplus / as sysdba SQL*Plus: Release 10.2.0.1.0 - Production on Sun Sep 7 08:24:23 2014 Copyright (c) 1982, 2005, Oracle. All rights reserved. Connected to an idle instance. SQL> @catmet2.sql SQL> @utlrp.sql |
錯誤案例2：
使用expdp/impdp時遭遇ORA-39006: internal error;ORA-39213: Metadata processing is notavailable錯誤
|
1
2
3
4
5
6
7
8
9
10
|
[oracle@DB-Server backup]$ impdp frnt/frnt directory=dum_dir dumpfile=20120420.FRNT_02.dmp tablespaces=TBS_TR_DATA;Import: Release 10.2.0.1.0 - 64bit Production on Wednesday, 25 April, 2012 14:41:48Copyright (c) 2003, 2005, Oracle. All rights reserved.Connected to: Oracle Database 10g Enterprise Edition Release 10.2.0.1.0 - 64bit ProductionWith the Partitioning, OLAP and Data Mining optionsORA-39006: internal errorORA-39213: Metadata processing is not available |
解決方法：
錯誤原因如下所示，因為Data Pump不能使用Metadata API， 這個是因為XSL stylesheets 沒有正確設置緣故。需要以SYSDBA執行dbms_metadata_util.load_stylesheets
|
1
2
3
4
5
6
7
8
9
10
11
|
[oracle@DB-Server admin]$ oerr ora 39213 39213, 00000, "Metadata processing is not available" // *Cause: The Data Pump could not use the Metadata API. Typically, // this is caused by the XSL stylesheets not being set up properly. // *Action: Connect AS SYSDBA and execute dbms_metadata_util.load_stylesheets // to reload the stylesheets. |
SQL>exec dbms_metadata_util.load_stylesheets
錯誤案例3：
錯誤如下所示：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
|
etl@NMS_ODS_NDB1[/jkfile/klbtmp]#expdp userid=username/password@tnsname dumpfile=ref.dmp directory=DUMP_TEST schemas=ref content=all logfile=ref.log Export: Release 10.2.0.3.0 - 64bit Production on Saturday, 02 March, 2013 10:28:25 Copyright (c) 2003, 2005, Oracle. All rights reserved. Connected to: Oracle Database 10g Enterprise Edition Release 10.2.0.3.0 - 64bit Production With the Partitioning, Real Application Clusters, OLAP and Data Mining options ORA-39002: invalid operation ORA-39070: Unable to open the log file. ORA-29283: invalid file operation ORA-06512: at "SYS.UTL_FILE", line 475 ORA-29283: invalid file operation |
解決方法：
出現這個錯誤，需要檢查DIRECTORY目錄,創建DIRECTORY時，ORACLE并不檢查操作系統目錄是否已經存在
首先檢查DIRECTORY目錄DUMP_TEST對應的DIRECTORY_PATH，然后檢查操作系統下，驗證該目錄是否存在。
|
1
2
3
4
5
6
7
8
9
|
SQL> SELECT * FROM DBA_DIRECTORIES WHERE DIRECTORY_NAME='DUMP_TEST'; OWNER DIRECTORY_NAME DIRECTORY_PATH ------------------------ ------------------------------ ----------------- SYS DUMP_TEST /jkfile/klbtmp/ SQL> |
結果檢查發現該目錄被刪除了，創建該目錄即可解決問題。
另外一種情況，如果創建DIRECTORY目錄時，出現了換行，也會出現上面錯誤信息,這種錯誤玩玩很難發現，非常折騰人。所以需要非常細心。
SQL> create directory DUMP_TEST as '/jkfile/klbtmp/
';
錯誤案例4：
如下所示：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
|
etl@NMS_ODS_NDB1[/jkfile/work/klb]#expdp userid=etl/sunrise@wgods1 dumpfile=ref.dmp directory=DUMP_DIR schemas=ref content=all logfile=ref.log Export: Release 10.2.0.3.0 - 64bit Production on Saturday, 02 March, 2013 10:50:25 Copyright (c) 2003, 2005, Oracle. All rights reserved. Connected to: Oracle Database 10g Enterprise Edition Release 10.2.0.3.0 - 64bit Production With the Partitioning, Real Application Clusters, OLAP and Data Mining options ORA-31631: privileges are required ORA-39109: Unprivileged users may not operate upon other users' schemas |
解決方法：
主要是etl賬號缺少exp_full_database 權限，給etl賬號授予exp_full_database 權限后，上述問題解決。
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
|
# su - oracle $ sqlplus / as sysdba SQL*Plus: Release 10.2.0.3.0 - Production on Sat Mar 2 10:58:37 2013 Copyright (c) 1982, 2006, Oracle. All Rights Reserved. Connected to: Oracle Database 10g Enterprise Edition Release 10.2.0.3.0 - 64bit Production With the Partitioning, Real Application Clusters, OLAP and Data Mining options SQL> grant exp_full_database to etl; Grant succeeded. |
錯誤案例5：
|
1
2
3
|
etl@NMS_ODS_NDB1[/etl1_cx/etl]expdp etl/sunrise@wgods1 dumpfile=DM.TM_ALARM_LOG.dmp directory=DUMP_DIR tables=DM.TM_ALARM_LOG query='DATE_CD >=20121201 AND DATE_CD <=20130131'; LRM-00101: unknown parameter name '>' |
解決方法：
|
1
|
etl@NMS_ODS_NDB1[/etl1_cx/etl]expdp etl/sunrise@wgods1 dumpfile=DM.TM_ALARM_LOG.dmp directory=DUMP_DIR tables=DM.TM_ALARM_LOG query="DATE_CD \>\=20121201 AND DATE_CD \<\=20130131"; |
錯誤案例6：
LRM-00121: 'DATA_ONLY' is not an allowable value for 'compression'。如下所示：
|
1
2
3
|
etl@NMS_ODS_NDB1[/etl1_cx/etl]#expdp etl/sunrise@wgods1 dumpfile=ref.dmp directory=DUMP_DIR dumpfile=DM.TM_ALARM_LOG201212.dmp tables=DM.TM_ALARM_LOG COMPRESSION=DATA_ONLY query='DATE_CD >=20121201 AND DATE_CD <=20130131'; LRM-00121: 'DATA_ONLY' is not an allowable value for 'compression' |
解決方法：
首先查看EXPDP工具的版本，如下所示：
|
1
2
3
4
5
6
7
|
etl@NMS_ODS_NDB1[/etl1_cx/etl]#expdp version Export: Release 10.2.0.3.0 - 64bit Production on Monday, 04 March, 2013 14:46:47 Copyright (c) 2003, 2005, Oracle. All rights reserved. Password: |
請注意，在ORACLE 10g下 COMPRESSION只有METADATA_ONLY和NONE兩個選項，ORACLE 11g下才有DATA_ONLY選項。所以報如上錯誤。所以在使用前，請注意一下EXPDP工具的版本。
錯誤案例7：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
|
[oracle@DB-Server]$ expdp system/***** TABLES=INVENRTY.INV_STK_HD dumpfile=INV_STK_HD.dmp logfile=1.log DIRECTORY=CUR_DUMP_DIR Export: Release 10.2.0.4.0 - Production on Sunday, 14 July, 2013 8:27:16 Copyright (c) 2003, 2007, Oracle. All rights reserved. Connected to: Oracle Database 10g Release 10.2.0.4.0 - Production ORA-31626: job does not exist ORA-31637: cannot create job SYS_EXPORT_TABLE_01 for user SYSTEM ORA-06512: at "SYS.DBMS_SYS_ERROR", line 95 ORA-06512: at "SYS.KUPV$FT_INT", line 600 ORA-39080: failed to create queues "KUPC$C_1_20130714082716" and "KUPC$S_1_20130714082716" for Data Pump job ORA-06512: at "SYS.DBMS_SYS_ERROR", line 95 ORA-06512: at "SYS.KUPC$QUE_INT", line 1606 ORA-00832: no streams pool created and cannot automatically create one |
解決方法：
這個案例我以前已經介紹過，具體參考我的博客 Expdp 導數錯誤 ORA-00832
錯誤案例8：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
|
[oracle@testlnx01 u03]$ cd tmp/ [oracle@testlnx01 tmp]$ expdp system/***** directory=DUMPDIR dumpfile=ESCMUSER.dmp schemas=ESCMUSER logfile=ESCMUSER.log Export: Release 10.2.0.4.0 - 64bit Production on Wednesday, 27 August, 2014 16:30:46 Copyright (c) 2003, 2007, Oracle. All rights reserved. Connected to: Oracle Database 10g Release 10.2.0.4.0 - 64bit Production ORA-31626: job does not exist ORA-31633: unable to create master table "SYSTEM.SYS_EXPORT_SCHEMA_05" ORA-06512: at "SYS.DBMS_SYS_ERROR", line 95 ORA-06512: at "SYS.KUPV$FT", line 871 ORA-00959: tablespace 'TOOLS' does not exist |
解決方法：
這個案例有點特別，剛遇到的時候，確實有點莫名其妙，經過苦苦求索、求證后才發現，本來有一個TOOLS的表空間，不知道是哪位頭腦發熱的人，居然指定SYSTEM用戶的默認表空間為TOOLS，但是這個表空間又被人刪除了。于是便有了這樣一個案例。
|
1
2
3
|
SQL> ALTER USER SYSTEM DEFAULT TABLESPACE SYSTEM; User altered. |
修改用戶SYSTEM的默認表空間后，問題解決。
