手寫一個通用加載中、顯示數據、加載失敗、空數據的LoadingView框架。
定義3個布局：加載中，加載失敗，空數據
加載中:
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
|
<?xml version="1.0" encoding="utf-8"?><FrameLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent" android:layout_height="match_parent" android:background="#ffffff" android:clickable="true"> <ProgressBar android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_gravity="center" android:indeterminate="true" /></FrameLayout> |
加載失敗:
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
|
<?xml version="1.0" encoding="utf-8"?><FrameLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent" android:layout_height="match_parent" android:background="#ffffff" android:clickable="true" android:orientation="vertical"> <ImageView android:id="@+id/error_retry" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_gravity="center" android:gravity="center" android:src="@drawable/loading_retry" /></FrameLayout> |
空數據:
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
|
<?xml version="1.0" encoding="utf-8"?><FrameLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent" android:layout_height="match_parent" android:background="#ffffff" android:clickable="true" android:orientation="vertical"> <ImageView android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_gravity="center" android:src="@drawable/loading_empty" /></FrameLayout> |
自定義一個LoadingView:
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
|
package com.sample.loadingview.widget;import android.content.Context;import android.content.res.TypedArray;import android.support.annotation.AttrRes;import android.support.annotation.NonNull;import android.support.annotation.Nullable;import android.util.AttributeSet;import android.util.SparseArray;import android.view.LayoutInflater;import android.view.View;import android.widget.FrameLayout;import android.widget.ImageView;import com.sample.loadingview.R;public class LoadingView extends FrameLayout { private int emptyLayoutId, errorLayoutId, loadingLayoutId; private View contentView, emptyView, errorView, loadingView; private LayoutInflater mInflater; private SparseArray<View> views = new SparseArray<>(); public LoadingView(@NonNull Context context) { this(context, null); } public LoadingView(@NonNull Context context, @Nullable AttributeSet attrs) { this(context, attrs, 0); } public LoadingView(@NonNull Context context, @Nullable AttributeSet attrs, @AttrRes int defStyleAttr) { super(context, attrs, defStyleAttr); TypedArray a = context.obtainStyledAttributes(attrs, R.styleable.LoadLayout); emptyLayoutId = a.getResourceId(R.styleable.LoadLayout_emptyView, R.layout.loading_empty); errorLayoutId = a.getResourceId(R.styleable.LoadLayout_errorView, R.layout.loading_error); loadingLayoutId = a.getResourceId(R.styleable.LoadLayout_loadingView, R.layout.loading_load); mInflater = LayoutInflater.from(getContext()); a.recycle(); loadingView = mInflater.inflate(loadingLayoutId, null); } @Override protected void onFinishInflate() { super.onFinishInflate(); if (getChildCount() < 1) { throw new RuntimeException("content view can not be null"); } contentView = getChildAt(0); if (loadingView.getVisibility() != GONE) loadingView.setVisibility(GONE); addView(loadingView); views.put(loadingLayoutId, loadingView); } public void showError() { errorView = views.get(errorLayoutId); if (errorView == null) { errorView = mInflater.inflate(errorLayoutId, null); addView(errorView); views.put(errorLayoutId, errorView); final ImageView errorRetry = (ImageView) errorView.findViewById(R.id.error_retry); errorRetry.setOnClickListener(new OnClickListener() { @Override public void onClick(View v) { if (mOnRetryClickListener != null) mOnRetryClickListener.onClick(errorRetry); } }); } if (errorView.getVisibility() != VISIBLE) errorView.setVisibility(VISIBLE); for (int i = 0, len = views.size(); i < len; i++) { int key = views.keyAt(i); if (key != errorLayoutId) { View view = views.valueAt(i); if (view != null) if (view.getVisibility() != GONE) view.setVisibility(GONE); } } } public void showEmpty() { emptyView = views.get(emptyLayoutId); if (emptyView == null) { emptyView = mInflater.inflate(emptyLayoutId, null); addView(emptyView); views.put(emptyLayoutId, emptyView); } if (emptyView.getVisibility() != VISIBLE) emptyView.setVisibility(VISIBLE); for (int i = 0, len = views.size(); i < len; i++) { int key = views.keyAt(i); if (key != emptyLayoutId) { View view = views.valueAt(i); if (view != null) if (view.getVisibility() != GONE) view.setVisibility(GONE); } } } public void showLoading() { loadingView = views.get(loadingLayoutId); if (loadingView.getVisibility() != VISIBLE) loadingView.setVisibility(VISIBLE); for (int i = 0, len = views.size(); i < len; i++) { int key = views.keyAt(i); if (key != loadingLayoutId) { View view = views.valueAt(i); if (view != null) if (view.getVisibility() != GONE) view.setVisibility(GONE); } } } public void showContent() { for (int i = 0, len = views.size(); i < len; i++) { View view = views.valueAt(i); if (view != null) if (view.getVisibility() != GONE) view.setVisibility(GONE); } } private OnClickListener mOnRetryClickListener; public void setOnRetryClickListener(OnClickListener onRetryClickListener) { this.mOnRetryClickListener = onRetryClickListener; }} |
定義attrs.xml
|
1
2
3
4
5
6
7
8
9
|
<?xml version="1.0" encoding="utf-8"?><resources> <declare-styleable name="LoadLayout"> <attr name="loadingView" format="reference" /> <attr name="errorView" format="reference" /> <attr name="retryView" format="reference" /> <attr name="emptyView" format="reference" /> </declare-styleable></resources> |

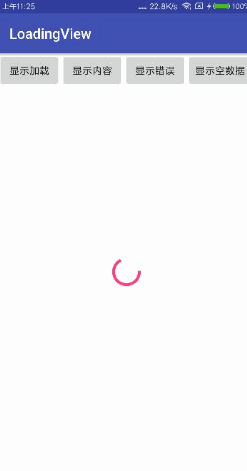

以上就這么些代碼，接下來我們測試一下
Activity
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
|
package com.sample.loadingview;import android.os.Bundle;import android.support.v7.app.AppCompatActivity;import android.view.View;import android.widget.Button;import android.widget.Toast;import com.sample.loadingview.widget.LoadingView;public class MainActivity extends AppCompatActivity implements View.OnClickListener { private LoadingView loading_view; private Button btn_loading; private Button btn_content; private Button btn_error; private Button btn_empty; @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); loading_view = (LoadingView) findViewById(R.id.loading_view); btn_loading = (Button) findViewById(R.id.btn_loading); btn_content = (Button) findViewById(R.id.btn_content); btn_error = (Button) findViewById(R.id.btn_error); btn_empty = (Button) findViewById(R.id.btn_empty); //設置加載錯誤的點擊事件 loading_view.setOnRetryClickListener(new View.OnClickListener() { @Override public void onClick(View v) { Toast.makeText(MainActivity.this, "重新加載", Toast.LENGTH_SHORT).show(); loading_view.showLoading(); } }); btn_loading.setOnClickListener(this); btn_content.setOnClickListener(this); btn_error.setOnClickListener(this); btn_empty.setOnClickListener(this); } @Override public void onClick(View v) { switch (v.getId()) { case R.id.btn_loading: loading_view.showLoading();//顯示加載界面 break; case R.id.btn_content: loading_view.showContent();//顯示內容界面 break; case R.id.btn_error: loading_view.showError();//顯示錯誤界面 break; case R.id.btn_empty: loading_view.showEmpty();//顯示空數據界面 break; } }} |
源碼：下載地址
以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持服務器之家。
原文鏈接：https://blog.csdn.net/qq_14876133/article/details/80924356
