最近剛入職新公司，項目是從零開始搭建的項目。我覺得是時候考驗是驢還是千里馬的時候。都是淚就不多說了。
附上一篇Mybatis常用的分頁案例。這次要做的是最常見的分頁效果，也是基礎功能。但是很多人都做不好的。這次采用Mybatis分頁插件PageHelper。
僅獻給伸手黨的大爺們。大爺們好！拿代碼記得扣666！！小的在這給感謝了！！

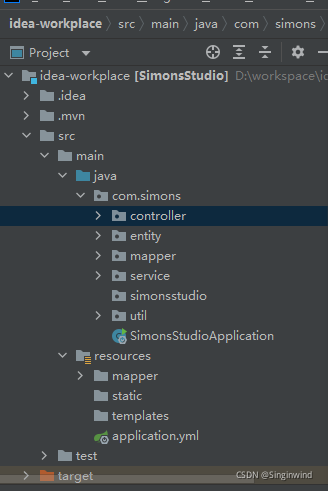

一、項目結構
按照controller,service,mapper(也叫dao)來建立項目，utils里面是兩個自己寫的分頁工具類。看前
端需要什么分頁參數，你方便添加。并能返回給他
二、插件引入
1.pom.xml。引入PageHelper插件
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
|
<?xml version="1.0" encoding="UTF-8"?><project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>2.5.6</version> <relativePath/> <!-- lookup parent from repository --> </parent> <groupId>com.simons</groupId> <artifactId>SimonsStudio</artifactId> <version>0.0.1-SNAPSHOT</version> <name>SimonsStudio</name> <description>SimonsStudio</description> <properties> <java.version>1.8</java.version> </properties> <dependencies> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <!--Mybatis框架--> <dependency> <groupId>org.mybatis.spring.boot</groupId> <artifactId>mybatis-spring-boot-starter</artifactId> <version>2.2.0</version> </dependency> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> <scope>runtime</scope> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> <scope>test</scope> </dependency> <!--pageHelper分頁插件--> <dependency> <groupId>com.github.pagehelper</groupId> <artifactId>pagehelper-spring-boot-starter</artifactId> <version>1.2.3</version> </dependency> </dependencies> <build> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> </plugin> </plugins> </build> </project> |
2.application.xml配置。我的*maper.xml都是放在resource文件夾里面的。這里有個 mapper-locations一定要配你項目的，不懂的看我的項目結構。PageHelper照著配置就行了。
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
|
server: port: 8080 spring: datasource: name: test url: jdbc:mysql://127.0.0.1:3306/simonsdb username: root password: root driver-class-name: com.mysql.jdbc.Driver mybatis: mapper-locations: classpath:mapper/*.xml #注意了！這個是mapper.xml的路徑。要按照目錄文件夾來命名。 type-aliases-package: com.smions.entity #實體類的文件夾pagehelper: # helperDialect: mysql reasonable: true supportMethodsArguments: true params: count=countSql |
三、代碼
1.mapper。習慣上從dao層寫起來。@Mapper@Component兩個注解要寫上，不然后面springboot啟動的時候掃描不到。在Mybatis中。mapper相當于dao層。只有接口。selectPage這個是我們要做的分頁，這個名字和Maper.xml里面的id對應。要寫對了。
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
|
package com.simons.mapper; import com.simons.entity.Student;import org.apache.ibatis.annotations.Mapper;import org.springframework.stereotype.Component;import java.util.List;import java.util.Map; @Mapper@Componentpublic interface StudentMapper { /** * 查詢全部用戶 * @return */ List<Map<String,Object>> selectAll(); /** * 分頁查詢用戶 * @return */ List<Student> selectPage();} |
2.*mapper.xml。namespace對應Java中的mapper類。id = "Base_Column_List"，是你要查詢的表里面的所有字段。記得username不要寫成name.這個我踩過好多坑。運行的時候一直報mapper找不到對應的方法。原因是name會被識別為關鍵字！！不要取名sql或者java的關鍵字，不然你會哭的！！
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
|
<?xml version="1.0" encoding="UTF-8" ?><!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" ><mapper namespace="com.simons.mapper.StudentMapper" > <sql id="Base_Column_List" > id, username, password </sql> <select id="selectAll" resultType="map"> SELECT <include refid="Base_Column_List" /> FROM student </select> <select id="selectPage" resultType="map"> SELECT <include refid="Base_Column_List" /> FROM student </select> </mapper> |
3.service.java。getPageInfo方法是重點。PageHelper的核心代碼就只有一句:
PageHelper.startPage(pageNum,pageSize);//開始分頁
List<Student> students = studentMapper.selectPage();//查詢數據庫返回數據
PageInfo<Student> pageInfo = new PageInfo<>(students);//得到數據，里面還帶有分頁的各個參數
很簡單是不是。接下來介紹一下pageInfo自帶的分頁參數:
pageNum=5, //查詢的頁數(第5頁)
pageSize=3, //每頁的大小
size=3,
startRow=13,
endRow=15,
total=22,//總數
pages=8, //總頁數：22/3=8
list=Page{count=true, pageNum=5, pageSize=3, startRow=12, endRow=15, total=22, pages=8, reasonable=true, pageSizeZero=false},
prePage=4, //前一頁
nextPage=6, //后一頁
isFirstPage=false, //是否是第一頁
isLastPage=false, //是否是最后一頁
hasPreviousPage=true, //是否有上一頁
hasNextPage=true, //是否有下一頁
navigatePages=8, //導航總頁數
navigateFirstPage=1, //導航第一頁
navigateLastPage=8, //導航最后一頁
navigatepageNums=[1, 2, 3, 4, 5, 6, 7, 8]//頁數碼
看完后，是不是一個很完美的插件(狗頭)。相關的分頁參數都是很齊全的。
service代碼。這里我先用getInfo拿到PageInfo。再把相關的參數和list數據拿出來。返回給controller即可。
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
|
package com.simons.service; import com.github.pagehelper.PageHelper;import com.github.pagehelper.PageInfo;import com.simons.entity.Student;import com.simons.mapper.StudentMapper;import com.simons.util.PageRequest;import com.simons.util.PageResult;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.stereotype.Service; import java.util.List;import java.util.Map; @Servicepublic class StudentService{ @Autowired private StudentMapper studentMapper; public List<Map<String,Object>> findAll() {// List<Student> students = List<Map<String,Object>> map = studentMapper.selectAll(); return map; } public PageResult findPage(PageRequest pageRequest) { PageInfo<Student> pageInfo = getPageInfo(pageRequest); PageResult pageResult = new PageResult(); pageResult.setPageNum(pageInfo.getPageNum()); pageResult.setPageSize(pageInfo.getPageSize()); pageResult.setTotalPages(pageInfo.getPages()); pageResult.setContent(pageInfo.getList()); return pageResult; } /** * 調用分頁插件完成分頁 * */ public PageInfo<Student> getPageInfo(PageRequest pageRequest) { int pageNum = pageRequest.getPageNum(); int pageSize = pageRequest.getPageSize(); PageHelper.startPage(pageNum,pageSize);//核心代碼:pageHelper查詢分頁 List<Student> students = studentMapper.selectPage(); PageInfo<Student> pageInfo = new PageInfo<>(students); return pageInfo; }} |
4.controller層。findpage方法。查找分頁的方案。因為分頁往往帶有查詢參數。這邊沒寫。
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
|
package com.simons.controller; import com.simons.service.StudentService;import com.simons.util.PageRequest;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.stereotype.Controller;import org.springframework.web.bind.annotation.*; import java.util.List;import java.util.Map; //@RestController//@RequestMapping("/student") @Controller@RequestMapping(value = {"/student"})public class StudentController { @Autowired private StudentService studentService; @ResponseBody @RequestMapping(value="/findAll") public List<Map<String,Object>> findAll() { return studentService.findAll(); } @ResponseBody @RequestMapping(value = {"/findPage"}) public Object findPage(@RequestParam(name = "pageNum")String pageNum , @RequestParam(name = "pageSize") String pageSize) { PageRequest pageQuery = new PageRequest(); pageQuery.setPageNum(Integer.parseInt(pageNum)); pageQuery.setPageSize(Integer.parseInt(pageSize)); return studentService.findPage(pageQuery); }// @PostMapping(value="/findPage")// public Object findPage(@RequestBody PageRequest pageQuery) {// return studentService.findPage(pageQuery);// }} |
5.utils類。一個是pageRequest請求分頁，一個是pageResult返回分頁的實體類
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
|
package com.simons.util; import java.util.List;/** * 分頁返回結果 */public class PageResult { /** * 當前頁碼 */ private int pageNum; /** * 每頁數量 */ private int pageSize; /** * 記錄總數 */ private long totalSize; /** * 頁碼總數 */ private int totalPages; /** * 數據模型 */ private List<?> content; public int getPageNum() { return pageNum; } public void setPageNum(int pageNum) { this.pageNum = pageNum; } public int getPageSize() { return pageSize; } public void setPageSize(int pageSize) { this.pageSize = pageSize; } public long getTotalSize() { return totalSize; } public void setTotalSize(long totalSize) { this.totalSize = totalSize; } public int getTotalPages() { return totalPages; } public void setTotalPages(int totalPages) { this.totalPages = totalPages; } public List<?> getContent() { return content; } public void setContent(List<?> content) { this.content = content; }} |
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
|
package com.simons.util; public class PageRequest { /** * 當前頁碼 */ private int pageNum; /** * 每頁數量 */ private int pageSize; public int getPageNum() { return pageNum; } public void setPageNum(int pageNum) { this.pageNum = pageNum; } public int getPageSize() { return pageSize; } public void setPageSize(int pageSize) { this.pageSize = pageSize; }} |
6.spring項目啟動 application.java
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
|
package com.simons; import org.mybatis.spring.annotation.MapperScan;import org.springframework.boot.SpringApplication;import org.springframework.boot.autoconfigure.SpringBootApplication;import org.springframework.context.annotation.ComponentScan; @SpringBootApplication@MapperScan("com.simons.mapper")//@ComponentScan(basePackages={"com.simons.*"})public class SimonsStudioApplication { public static void main(String[] args) { SpringApplication.run(SimonsStudioApplication.class, args); } } |
四、測試:
啟動spring。輸入測試地址:
http://localhost:8080/student/findPage?pageNum=5&pageSize=3
