因為項目需要，頁面上需要樹形結構的數據進行展示（類似下圖這樣），因此需要后端返回相應格式的數據。
不說廢話，直接開干！！！
我這里用的是springboot+mybatis-plus+mysql，示例的接口是查詢一級權限以及二級權限、三級權限整個權限樹…
下面是導入的maven依賴
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
|
<dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency><!--數據庫連接--> <dependency> <groupId>com.alibaba</groupId> <artifactId>druid-spring-boot-starter</artifactId> <version>1.1.21</version> </dependency> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> </dependency> <!--mybatis增強工具--> <dependency> <groupId>com.baomidou</groupId> <artifactId>mybatis-plus-boot-starter</artifactId> <version>3.4.0</version> </dependency> <dependency> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> <optional>true</optional> </dependency> <dependency> <groupId>cn.hutool</groupId> <artifactId>hutool-all</artifactId> <version>5.0.6</version> </dependency> |
下面是實體類Permission
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
|
@Datapublic class Permission implements Serializable { @TableId private String permissionId; @NotNull(message = "權限名稱不能為空") private String permissionName; /** * 權限標識 */ @NotNull(message = "權限標識不能為空") private String permissionCode; /** * 父菜單ID，如果是-1就表示是一級權限菜單。 */ @NotBlank(message = "父菜單ID不能為空") private String parentId; /** * 前端URL訪問接口路徑 */ private String path; /** * 排序值 */ private Integer sort; /** * 創建時間 */ private LocalDateTime createTime; /** * 更新時間 */ private LocalDateTime updateTime; /** * 0--正常 1--刪除 */ private String delFlag; public Permission() { this.permissionId = IdUtil.simpleUUID(); } |
樹形結點類
|
1
2
3
4
5
6
7
8
9
10
11
|
@Datapublic class TreeNode { protected String id; protected String parentId; protected List<TreeNode> children = new ArrayList<TreeNode>(); protected boolean hasChildren; public void addTreeNode(TreeNode node){ children.add(node); }} |
樹形結點詳細信息類
|
1
2
3
4
5
6
7
8
9
10
11
12
|
@Data@EqualsAndHashCode(callSuper = true)public class PermissionTree extends TreeNode implements Serializable { private String permissionName; private String permissionCode; private String path; private Integer sort; private String label; private boolean hasChildren; public PermissionTree() { }} |
構建樹形結點工具類（關鍵），在這里我用@UtilityClass注解就表示這個類中的方法都是靜態方法：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
|
@UtilityClasspublic class TreeUtil { public <T extends TreeNode> List<T> build(List<T> treeNodes, String root) { List<T> trees = new ArrayList<>(); for (T treeNode : treeNodes) { if (root.equals(treeNode.getParentId())) { trees.add(treeNode); } for (T node : treeNodes) { if (node.getParentId().equals(treeNode.getId())) { treeNode.addTreeNode(node); treeNode.setHasChildren(true); } } } return trees; } /** * 通過permission創建樹形節點 * * @param permissionList * @param root * @return */ public List<PermissionTree> buildTree(List<Permission> permissionList, String root) { System.out.println(Arrays.toString(permissionList.toArray())); List<PermissionTree> treeNodeList = new ArrayList<>(); PermissionTree treeNode = null; for (Permission permission : permissionList) { treeNode = new PermissionTree(); treeNode.setId(permission.getPermissionId()); treeNode.setPermissionName(permission.getPermissionName()); treeNode.setPath(permission.getPath()); treeNode.setSort(permission.getSort()); treeNode.setParentId(permission.getParentId()); treeNode.setLabel(permission.getPermissionName()); treeNode.setHasChildren(false); treeNodeList.add(treeNode); } return TreeUtil.build(treeNodeList, root); } } |
響應消息主體類
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
|
/** * 響應信息主體 * * @param <T> */@ToString@NoArgsConstructor@AllArgsConstructor@Accessors(chain = true)public class R<T> implements Serializable { private static final long serialVersionUID = 1L; private int code; private String msg; private T data; public int getCode() { return code; } public void setCode(int code) { this.code = code; } public String getMsg() { return msg; } public void setMsg(String msg) { this.msg = msg; } public T getData() { return data; } public void setData(T data) { this.data = data; } public static <T> R<T> ok() { return restResult(null, CommonConstants.SUCCESS, CommonConstants.MSG_SUCCESS); } public static <T> R<T> ok(T data) { return restResult(data, CommonConstants.SUCCESS, CommonConstants.MSG_SUCCESS); } public static <T> R<T> ok(T data, String msg) { return restResult(data, CommonConstants.SUCCESS, msg); } public static <T> R<T> failed() { return restResult(null, CommonConstants.FAIL, null); } public static <T> R<T> failed(String msg) { return restResult(null, CommonConstants.FAIL, msg); } public static <T> R<T> failed(T data) { return restResult(data, CommonConstants.FAIL, null); } public static <T> R<T> failed(T data, String msg) { return restResult(data, CommonConstants.FAIL, msg); } private static <T> R<T> restResult(T data, int code, String msg) { R<T> apiResult = new R<>(); apiResult.setCode(code); apiResult.setData(data); apiResult.setMsg(msg); return apiResult; }} |
數據查詢接口mapper類
|
1
2
3
4
|
@Mapperpublic interface PermissionMapper extends BaseMapper<Permission>{ } |
數據邏輯處理業務接口
|
1
2
3
4
5
6
7
8
9
10
11
12
|
public interface PermissionService extends IService<Permission> { /** * 構建權限樹 * * @param lazy * @param parentId * @return */ List<PermissionTree> treePermission(boolean lazy, String parentId);} |
數據邏輯處理業務接口實現類
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
|
@Servicepublic class PermissionServiceImpl extends ServiceImpl<PermissionMapper, Permission> implements PermissionService {/** * 構建權限樹：1、不是懶加載情況，查詢?nèi)?/code> * 2、是懶加載，根據parentId查詢 * * @param lazy * @param parentId * @return */ @Override public List<PermissionTree> treePermission(boolean lazy, String parentId) { if (!lazy) { return TreeUtil.buildTree( baseMapper.selectList(Wrappers.<Permission>lambdaQuery().orderByAsc(Permission::getSort)), CommonConstants.PERMISSION_ROOT_ID); } String parent = parentId == null ? CommonConstants.PERMISSION_ROOT_ID : parentId; return TreeUtil.buildTree( baseMapper.selectList(Wrappers.<Permission>lambdaQuery().eq(Permission::getParentId, parent).orderByAsc(Permission::getSort)), parent ); }} |
查詢權限樹請求接口類
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
|
@RestController@RequestMapping("/permission")public class PermissionController { @Autowire private PermissionService permissionService; /** * 查詢權限列表，并以樹狀結構顯示 * * @param lazy 懶加載: false時, parentId這個參數失效, 加載所有的權限; true時, 根據parentId加載 * @param parentId * @return */ @RequestMapping(value = "/getTree", method = RequestMethod.GET) public R getTree(boolean lazy, String parentId) { return R.ok(permissionService.treePermission(lazy, parentId)); } } |
表中測試數據如下（注意它的parent_id）
測試一：不是懶加載，查詢整個權限樹。 結果如下。
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
|
{ "code": 0, "msg": "SUCCESS", "data": [ { "id": "1", "parentId": "-1", "children": [ { "id": "2", "parentId": "1", "children": [ { "id": "3", "parentId": "2", "children": [], "hasChildren": false, "permissionName": "update", "permissionCode": null, "path": null, "sort": 3, "label": "update", "owned": false }, { "id": "4", "parentId": "2", "children": [], "hasChildren": false, "permissionName": "insert_role", "permissionCode": null, "path": null, "sort": 4, "label": "insert_role", "owned": false } ], "hasChildren": true, "permissionName": "delete", "permissionCode": null, "path": null, "sort": 2, "label": "delete", "owned": false } ], "hasChildren": true, "permissionName": "add", "permissionCode": null, "path": null, "sort": 1, "label": "add", "owned": false }, { "id": "5", "parentId": "-1", "children": [], "hasChildren": false, "permissionName": "role:saveRole", "permissionCode": null, "path": "/role/saveRole", "sort": 5, "label": "role:saveRole", "owned": false } ]} |

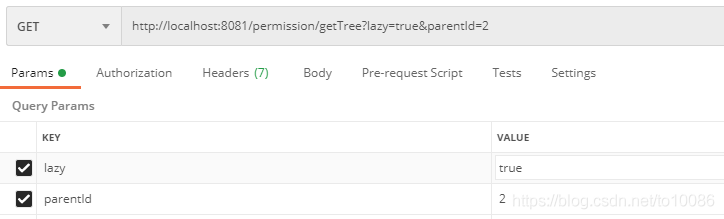

測試二：是懶加載，根據parent_id查詢當前分支。 結果如下。
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
|
{ "code": 0, "msg": "SUCCESS", "data": [ { "id": "3", "parentId": "2", "children": [], "hasChildren": false, "permissionName": "update", "permissionCode": null, "path": null, "sort": 3, "label": "update", "owned": false }, { "id": "4", "parentId": "2", "children": [], "hasChildren": false, "permissionName": "insert_role", "permissionCode": null, "path": null, "sort": 4, "label": "insert_role", "owned": false } ]} |
到此這篇關于springboot構造樹形結構數據并查詢的方法的文章就介紹到這了,更多相關springboot 樹形結構并查詢內容請搜索服務器之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持服務器之家！
