一、新建一個Qt項目
新建Qt Widgets Application，項目名稱為HappySnake，基類選擇QWidget，類名默認
二、添加要用到的頭文件
|
1
2
3
4
5
6
7
8
|
#include <QKeyEvent>#include <QRectF>#include <QPainter>#include <QPen>#include <QBrush>#include <QDebug>#include <QTimer>#include <QTime> |
三、寫類聲明信息
- 貪吃蛇的本體使用小方框來代替
- 使用QList類來保存貪吃蛇的本體
- 使用定時器來設定刷新的時間
- 使用隨機函數生成獎勵的節點
- 使用paintEvent來進行繪圖
- keyPressEvent來監測按鍵的按下，控制貪吃蛇的移動
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
|
class Widget : public QWidget{ Q_OBJECT public: explicit Widget(QWidget *parent = 0); ~Widget();protected: void paintEvent(QPaintEvent *); void keyPressEvent(QKeyEvent *); private: void addTopRectF(); void addDownRectF(); void addLeftRectF(); void addRightRectF(); void deleteLastRectF(); bool snakeStrike(); enum Move{Left,Right,Up,Down};protected slots: void timeOut(); void rewardTimeOut(); private: Ui::Widget *ui; QList<QRectF> snake;//貪吃蛇本體 int snakeNodeWidth = 10; int snakeNodeHeight = 10; QTimer *timer; QTimer *rewardTimer; int time = 100; int moveFlage = Up; bool gameOver = false; bool gameStart = false; QList<QRectF> rewardNode;//獎勵節點 }; |
四、對類函數的實現
構造函數
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
|
Widget::Widget(QWidget *parent) : QWidget(parent), ui(new Ui::Widget){ ui->setupUi(this); resize(480,500); //設置窗體背景色為黑色 setStyleSheet("QWidget{background:black}"); setWindowOpacity(0.8);//設置窗口的透明度 snake.append(QRectF(200,500,snakeNodeWidth,snakeNodeHeight)); addTopRectF(); addTopRectF(); //首先生成一個獎勵節點 rewardNode.append(QRectF(100,100,snakeNodeWidth,snakeNodeWidth)); timer = new QTimer; connect(timer, SIGNAL(timeout()),this,SLOT(timeOut())); //timer->start(time); rewardTimer = new QTimer; connect(rewardTimer,SIGNAL(timeout()),this,SLOT(rewardTimeOut())); //rewardTimer->start(time*30);} Widget::~Widget(){ delete ui;} |
界面刷新
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
|
void Widget::timeOut(){ int flage = 1; for(int i=0; i<rewardNode.length(); i++){ if(rewardNode.at(i).contains(snake.at(0).topLeft()+QPointF(snakeNodeWidth/2,snakeNodeHeight/2))){ //if(snake.at(0).contains(rewardNode.at(i).x()+rewardNode.at(i).width()/2,rewardNode.at(i).y()+rewardNode.at(i).height()/2)){ if(rewardNode.at(i).width()>snakeNodeWidth){//額外獎勵 flage += 2; } flage++;//正常獎勵 rewardNode.removeAt(i); break; } } while(flage--){ switch (moveFlage) { case Up: addTopRectF(); break; case Down: addDownRectF(); break; case Right: addRightRectF(); break; case Left: addLeftRectF(); break; default: break; } } deleteLastRectF(); update();} |
隨機獎勵的生成
|
1
2
3
4
5
6
7
8
9
10
11
12
|
//隨機獎勵void Widget::rewardTimeOut(){ qsrand(QTime(0,0,0).secsTo(QTime::currentTime())); if(rewardNode.length() > 5){ rewardNode.removeAt(qrand()%5); } rewardNode.append(QRectF(qrand()%(this->width()/20)*20,qrand()%(this->height()/20)*20,snakeNodeWidth,snakeNodeWidth)); if(qrand()%5 == 3){ rewardNode.append(QRectF(qrand()%(this->width()/20)*20-5,qrand()%(this->height()/20)*20-5,snakeNodeWidth*2,snakeNodeWidth*2)); }} |
移動
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
|
//向上移動void Widget::addTopRectF(){ if(snake.at(0).y()-snakeNodeHeight < 0){ snake.insert(0,QRectF(QPointF(snake.at(0).x(),this->height()-snakeNodeHeight), QPointF(snake.at(0).x()+snakeNodeWidth,this->height()))); }else{ snake.insert(0,QRectF(snake.at(0).topLeft()+QPointF(0,-snakeNodeHeight),snake.at(0).topRight())); }}//向下移動void Widget::addDownRectF(){ if(snake.at(0).y()+snakeNodeHeight*2 > this->height()){ snake.insert(0,QRectF(QPointF(snake.at(0).x(),snakeNodeHeight), QPointF(snake.at(0).x()+snakeNodeWidth,0))); }else{ snake.insert(0,QRectF(snake.at(0).bottomLeft(),snake.at(0).bottomRight()+QPointF(0,snakeNodeHeight))); }}//向左移動void Widget::addLeftRectF(){ if(snake.at(0).x()-snakeNodeWidth < 0){ snake.insert(0,QRectF(QPointF(this->width()-snakeNodeWidth,snake.at(0).y()), QPointF(this->width(),snake.at(0).y()+snakeNodeHeight))); }else{ snake.insert(0,QRectF(snake.at(0).topLeft()+QPointF(-snakeNodeWidth,0),snake.at(0).bottomLeft())); }}//向右移動void Widget::addRightRectF(){ if(snake.at(0).x()+snakeNodeWidth*2 > this->width()){ snake.insert(0,QRectF(QPointF(0,snake.at(0).y()), QPointF(snakeNodeWidth,snake.at(0).y()+snakeNodeHeight))); }else{ snake.insert(0,QRectF(snake.at(0).topRight(),snake.at(0).bottomRight()+QPointF(snakeNodeWidth,0))); }}//刪除結尾數據void Widget::deleteLastRectF(){ snake.removeLast();} |
繪圖
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
|
//繪圖void Widget::paintEvent(QPaintEvent *event){ QPainter painter(this); QPen pen; QBrush brush; QFont font("方正舒體",12,QFont::ExtraLight,false); //反鋸齒 painter.setRenderHint(QPainter::Antialiasing); pen.setColor(Qt::black); brush.setColor(Qt::green); brush.setStyle(Qt::SolidPattern); painter.setPen(pen); painter.setBrush(brush); for(int i=0; i<snake.length(); i++){ painter.drawRect(snake.at(i)); } brush.setColor(Qt::red); painter.setBrush(brush); for(int i=0; i<rewardNode.length(); i++){ painter.drawEllipse(rewardNode.at(i)); } pen.setColor(Qt::white); painter.setPen(pen); painter.setFont(font); painter.drawText(20,20,QString("當前得分：")+QString("%1").arg(snake.length())); if(snakeStrike()){ QFont font("方正舒體",30,QFont::ExtraLight,false); painter.setFont(font); painter.drawText((this->width()-300)/2,(this->height()-30)/2,QString("GAME OVER!")); timer->stop(); rewardTimer->stop(); gameOver = true; } QWidget::paintEvent(event);} |
按鍵事件
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
|
void Widget::keyPressEvent(QKeyEvent *event){ switch(event->key()){ case Qt::Key_Up: if(moveFlage != Down){ moveFlage = Up; } break; case Qt::Key_Down: if(moveFlage != Up){ moveFlage = Down; } break; case Qt::Key_Right: if(moveFlage != Left){ moveFlage = Right; } break; case Qt::Key_Left: if(moveFlage != Right){ moveFlage = Left; } break; case Qt::Key_Enter: case Qt::Key_Return: if(gameOver){ snake.clear(); rewardNode.clear(); moveFlage = Up; snake.append(QRectF(200,500,snakeNodeWidth,snakeNodeHeight)); addTopRectF(); addTopRectF(); //首先生成一個獎勵節點 rewardNode.append(QRectF(100,100,snakeNodeWidth,snakeNodeWidth)); timer->start(time); rewardTimer->start(time*30); gameOver = false; } break; case Qt::Key_Space: if(gameStart && !gameOver){ timer->start(time); rewardTimer->start(time*30); gameStart = false; }else if(!gameStart && !gameOver){ timer->stop(); rewardTimer->stop(); gameStart = true; } break; default: break; }} |
判斷蛇身是否相撞
|
1
2
3
4
5
6
7
8
9
10
11
12
13
|
//判斷蛇頭是否和蛇身相撞bool Widget::snakeStrike(){ for(int i=0; i<snake.length(); i++){ for(int j=i+1; j<snake.length(); j++){ if(snake.at(i) == snake.at(j)){ return true; } } } return false; } |
五、結束

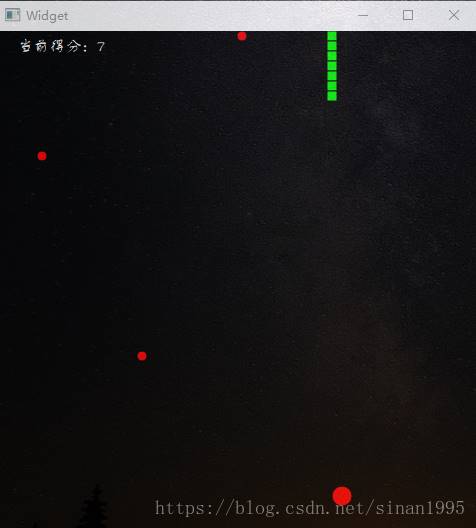

實現的效果：
總結：
只是簡單的使用了paintevent進行繪圖，基本都是簡單的對Qt的一些常用類的使用，對面向對象的編程應用的不是很好，更偏向于面向過程，所以完全可以改成C語言在Linux下實現，思路都是相同的。
