1.單點登錄系統介紹

多點登陸系統。應用起來相對繁瑣（每次訪問資源服務都需要重新登陸認證和授權）。與此同時，系統代碼的重復也比較高。所以單點登錄系統,倍受歡迎!

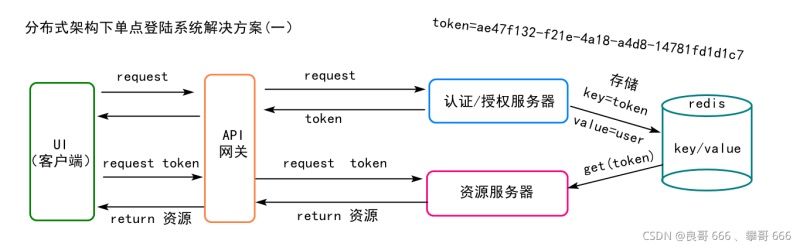

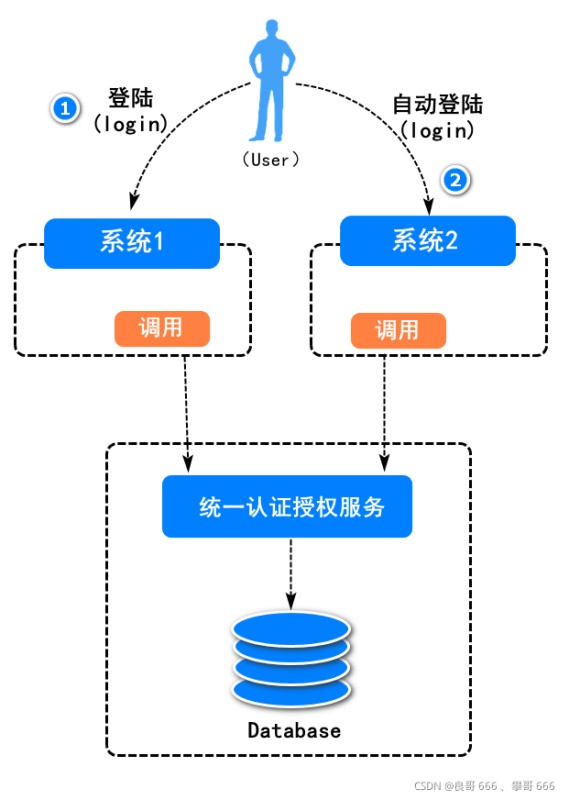

單點登錄系統,即多個站點共用一臺認證授權服務器，用戶在其中任何一個站點登錄后，可以免登錄訪問其他所有站點。而且，各站點間可以通過該登錄狀態直接交互。

Java spring單點登錄系統

2.簡單業務實現

在文件上傳的項目添加認證授權服務,義登錄頁面(login.html),然后在頁面中輸入自己的登陸賬號，登陸密碼,將請求提交給網關,然后網關將請求轉發到auth工程,登陸成功和失敗要返回json數據,按照如下結構實現

Java spring單點登錄系統

在02-sca工程創建 sca-auth子module,作為認證授權服務

Java spring單點登錄系統

2.1添加依賴

      <dependency>
          <groupId>org.springframework.boot</groupId>
          <artifactId>spring-boot-starter-web</artifactId>
      </dependency>
      <dependency>
          <groupId>com.alibaba.cloud</groupId>
          <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
      </dependency>
      <dependency>
          <groupId>com.alibaba.cloud</groupId>
          <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
      </dependency>
      <dependency>
          <groupId>org.springframework.cloud</groupId>
          <artifactId>spring-cloud-starter-oauth2</artifactId>
      </dependency>
      <dependency>
          <groupId>org.projectlombok</groupId>
          <artifactId>lombok</artifactId>
      </dependency>

2.2 項目配置文件

在sca-auth工程中創建bootstrap.yml文件

server:
port: 8071
spring:
application:
  name: sca-auth
cloud:
  nacos:
    discovery:
      server-addr: localhost:8848
    config:
      server-addr: localhost:8848

2.3添加項目啟動類

package com.jt;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class ResourceAuthApplication {
  public static void main(String[] args) {
      SpringApplication.run(ResourceAuthApplication.class, args);
  }
}

2.4 啟動并訪問項目

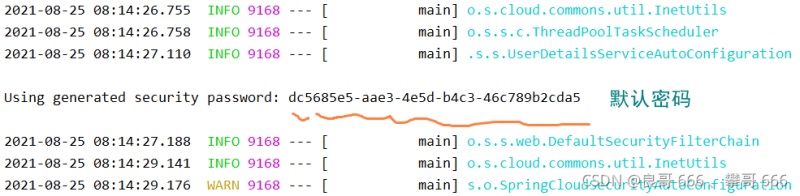

項目啟動時，系統會默認生成一個登陸密碼

Java spring單點登錄系統

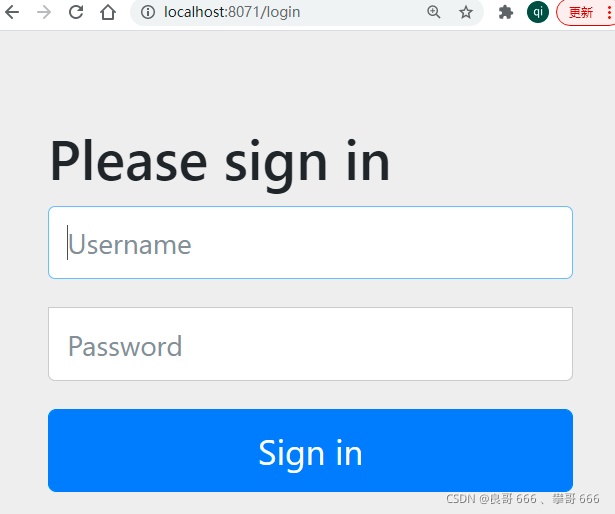

打開瀏覽器輸入http://localhost:8071呈現登陸頁面

Java spring單點登錄系統

默認用戶名為user，密碼為系統啟動時，在控制臺呈現的密碼。執行登陸測試,登陸成功進入如下界面（因?yàn)闆](méi)有定義登陸頁面，所以會出現404）

3. 優化進一步設計

3.1 定義安全配置類 SecurityConfig

修改SecurityConfig配置類,添加登錄成功或失敗的處理邏輯

package com.jt.auth.config;

import com.fasterxml.jackson.databind.ObjectMapper;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.web.authentication.AuthenticationFailureHandler;
import org.springframework.security.web.authentication.AuthenticationSuccessHandler;

import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.io.PrintWriter;
import java.util.HashMap;
import java.util.Map;

@Configuration//配置對象--系統啟動時底層會產生代理對象,來初始化一些對象
public class SecurityConfig extends WebSecurityConfigurerAdapter {
//WebSecurityConfigurerAdapter 類是個適配器, 在配置的時候,需要我們自己寫個配置類去繼承他,然后編寫自己所特殊需要的配置
  //BCryptPasswordEncoder密碼加密對象比MD5安全性更高,MD5暴力反射可以破解過
  @Bean
  public BCryptPasswordEncoder passwordEncoder(){
      return new BCryptPasswordEncoder();
  }

  /**
   * 配置認證管理器(負責對客戶輸入的用戶信息進行認證),在其他配置類中會用到這個對象
   * @return
   * @throws Exception
   */
  @Bean
  public AuthenticationManager authenticationManagerBean()
          throws Exception {
      return super.authenticationManagerBean();
  }

  /**在這個方法中定義登錄規則
   * 1)對所有請求放行(當前工程只做認證)
   * 2)登錄成功信息的返回
   * 3)登錄失敗信息的返回
   * */
  @Override
  protected void configure(HttpSecurity http) throws Exception {
      //禁用跨域
      http.csrf().disable();
      //放行所有請求
      http.authorizeRequests().anyRequest().permitAll();
      //登錄成功與失敗的處理
      http.formLogin()
              .successHandler(successHandler()) // .successHandler(AuthenticationSuccessHandler對象)
              .failureHandler(failureHandler());
  }

  @Bean
  //構建successHandler()方法來創建AuthenticationSuccessHandler對象
  public AuthenticationSuccessHandler successHandler(){
//        return new AuthenticationSuccessHandler() {
//            @Override
//            public void onAuthenticationSuccess(HttpServletRequest httpServletRequest, HttpServletResponse httpServletResponse, Authentication authentication) throws IOException, ServletException {
//
//            }
//        }
      return (request,response,authentication) ->{
          //1.構建map對象,封裝響應數據
          Map<String,Object> map=new HashMap<>();
          map.put("state",200);
          map.put("message","login ok"); //登錄成功返回的響應信息
          //2.將map對象寫到客戶端
          writeJsonToClient(response,map);
      };
  }
  @Bean
  //failureHandler();方法來創建AuthenticationSuccessHandler對象
  public AuthenticationFailureHandler failureHandler(){
      return (request,response, e)-> {
          //1.構建map對象,封裝響應數據
          Map<String,Object> map=new HashMap<>();
          map.put("state",500);
          map.put("message","login failure");//登錄失敗返回的響應信息
          //2.將map對象寫到客戶端
          writeJsonToClient(response,map);
      };
  }
  //提取公共代碼,將對象轉為Json傳給客戶端, 構建writeJsonToClient();
  private void writeJsonToClient(HttpServletResponse response,
                                 Object object) throws IOException { // Object 類型,不只是Map類型,說不準
      //2.將對象轉換為json
      //Gson-->toJson  (需要自己找依賴)
      //fastjson-->JSON (spring-cloud-starter-alibaba-sentinel)
      //jackson-->writeValueAsString (spring-boot-starter-web)
      String jsonStr=new ObjectMapper().writeValueAsString(object);
      //3.將json字符串寫到客戶端
      PrintWriter writer = response.getWriter();
      writer.println(jsonStr);
      writer.flush();
  }
}

3.2定義用戶信息處理對象

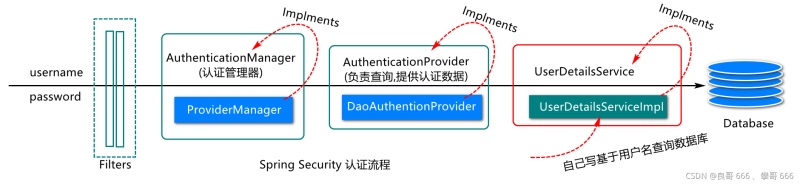

正常來說,用來與數據庫中的用戶信息作對比,認證是否正確,可否授權

Java spring單點登錄系統

package com.jt.auth.service;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.authority.AuthorityUtils;
import org.springframework.security.core.userdetails.User;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.stereotype.Service;

import java.util.List;

/**
* 登錄時用戶信息的獲取和封裝會在此對象進行實現,
* 在頁面上點擊登錄按鈕時,會調用這個對象的loadUserByUsername方法,
* 頁面上輸入的用戶名會傳給這個方法的參數
*
*/
@Service
public class UserDetailsServiceImpl implements UserDetailsService {//獲取用戶詳細信息的接口
  @Autowired
  //BCryptPasswordEncoder密碼加密對象
  private BCryptPasswordEncoder passwordEncoder;
  //UserDetails用戶封裝用戶信息(認證和權限信息)
  @Override
  //重寫UserDetailsService 接口中的 loadUserByUsername();方法,定義用來核對數據庫數據和授于相應的權限
  public UserDetails loadUserByUsername(String username)
          throws UsernameNotFoundException {
      //1.基于用戶名查詢用戶信息(用戶名,用戶狀態,密碼,....)
      //Userinfo userinfo=userMapper.selectUserByUsername(username);數據庫用戶信息查詢操作簡寫了
      String encodedPassword=passwordEncoder.encode("123456");
      //2.查詢用戶權限信息(后面訪問數據庫)
      //這里先給幾個假數據
      List<GrantedAuthority> authorities =
              AuthorityUtils.createAuthorityList(//這里的權限信息先這么寫,后面講
                      "sys:res:create", "sys:res:retrieve");
      //3.對用戶信息進行封裝
      return new User(username,encodedPassword,authorities);
  }
}

3.3 網關中登陸路由配置

在網關配置文件中添加如下配置

server:
port: 9001
spring:
application:
  name: sca-resource-gateway
cloud:
  sentinel: #限流設計
    transport:
      dashboard: localhost:8180
    eager: true
  nacos:
    discovery:
      server-addr: localhost:8848
    config:
      server-addr: localhost:8848
      file-extension: yml
  gateway:
    discovery:
      locator:
        enabled: true
    routes:
      - id: router02
        uri: lb://sca-auth  #lb表示負載均衡,底層默認使用ribbon實現
        predicates: #定義請求規則(請求需要按照此規則設計)
          - Path=/auth/login/** #請求路徑設計,單體架構
        filters:
          - StripPrefix=1 #轉發之前去掉path中第一層路徑

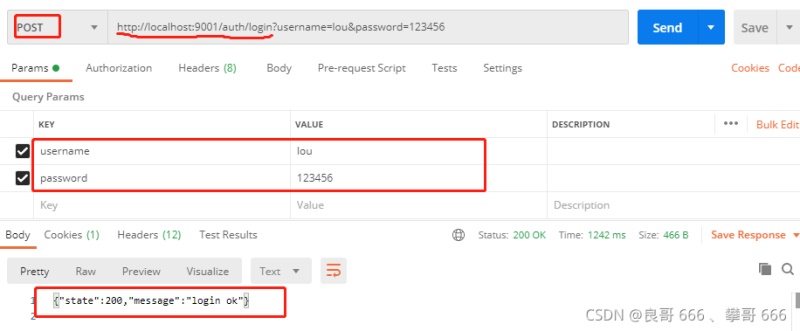

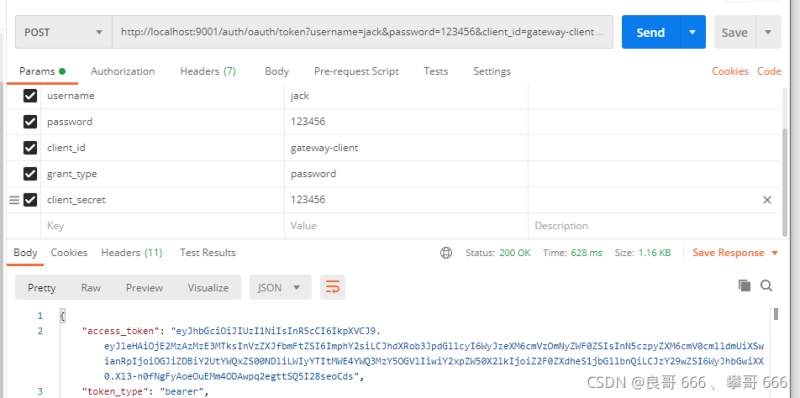

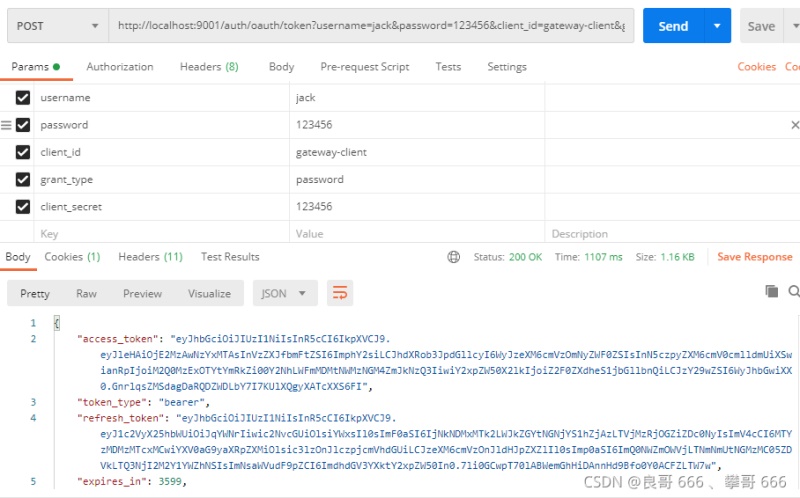

3.4基于Postman進行訪問測試

啟動sca-gateway，sca-auth服務，然后基于postman進行訪問測試

Java spring單點登錄系統

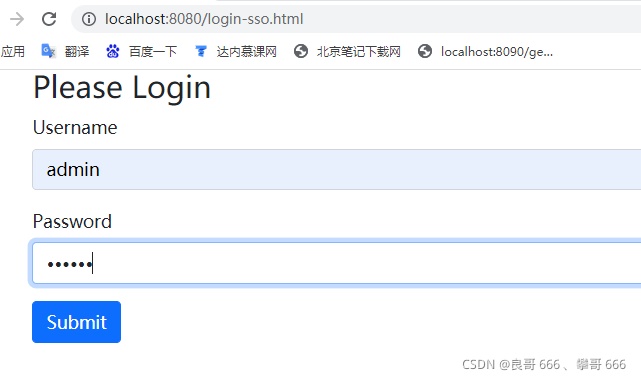

3.5 定義登陸頁面

在sca-resource-ui工程的static目錄中定義login-sso.html 登陸頁面

<!doctype html>
<html lang="en">
<head>
  <!-- Required meta tags -->
  <meta charset="utf-8">
  <meta name="viewport" content="width=device-width, initial-scale=1">
  <!-- Bootstrap CSS -->
  <link href="https://cdn.jsdelivr.net/npm/bootstrap@5.0.2/dist/css/bootstrap.min.css" rel="external nofollow"  rel="stylesheet" integrity="sha384-EVSTQN3/azprG1Anm3QDgpJLIm9Nao0Yz1ztcQTwFspd3yD65VohhpuuCOmLASjC" crossorigin="anonymous">
  <title>login</title>
</head>
<body>
<div class="container"id="app">
  <h3>Please Login</h3>
  <form>
      <div class="mb-3">
          <label for="usernameId" class="form-label">Username</label>
          <input type="text" v-model="username" class="form-control" id="usernameId" aria-describedby="emailHelp">
      </div>
      <div class="mb-3">
          <label for="passwordId" class="form-label">Password</label>
          <input type="password" v-model="password" class="form-control" id="passwordId">
      </div>
      <button type="button" @click="doLogin()" class="btn btn-primary">Submit</button>
  </form>
</div>
<script src="https://cdn.jsdelivr.net/npm/bootstrap@5.0.2/dist/js/bootstrap.bundle.min.js" integrity="sha384-MrcW6ZMFYlzcLA8Nl+NtUVF0sA7MsXsP1UyJoMp4YLEuNSfAP+JcXn/tWtIaxVXM" crossorigin="anonymous"></script>
<script src="https://cdn.jsdelivr.net/npm/vue/dist/vue.js"></script>
<script src="https://unpkg.com/axios/dist/axios.min.js"></script>
<script>
  var vm=new Vue({
      el:"#app",//定義監控點，vue底層會基于此監控點在內存中構建dom樹
      data:{ //此對象中定義頁面上要操作的數據
          username:"",
          password:""
      },
      methods: {//此位置定義所有業務事件處理函數
          doLogin() {
              //1.定義url
              let url = "http://localhost:9001/auth/oauth/token"
              //2.定義參數

              let params = new URLSearchParams()
              params.append('username',this.username);
              params.append('password',this.password);
              params.append("client_id","gateway-client");
              params.append("grant_type","password");
              params.append("client_secret","123456");

              //3.發送異步請求
              axios.post(url, params).then((response) => {
                  debugger
                  console.log(response.data);
                  let result=response.data;
                  //
                  localStorage.setItem("accessToken",result.access_token);
                  location.href="/fileupload.html" rel="external nofollow"

              })
          }
      }
  });
</script>
</body>
</html>

3.6 構建令牌配置對象

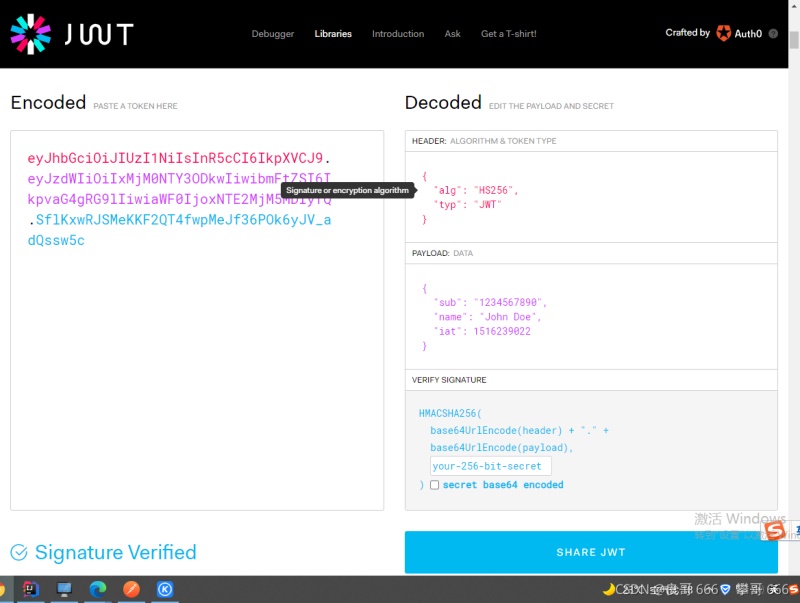

借助JWT(Json Web Token-是一種json格式）方式將用戶信息轉換為json格式,然后進行加密,保存用戶信息到客戶端，然后發送在客戶端客戶端接收到這個JWT之后,保存在客戶端,之后帶著JWT訪問其它模塊時,資源服務器解析獲得用戶信息,進行訪問,達到解放內存的目的
config 目錄下 TokenConfig類

package com.jt.auth.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.oauth2.provider.token.TokenStore;
import org.springframework.security.oauth2.provider.token.store.JwtAccessTokenConverter;
import org.springframework.security.oauth2.provider.token.store.JwtTokenStore;
/*
*創建jwt類型令牌
*構建令牌的構成有三部分:
* header(頭部信息:令牌類型)/
* payload(數據信息-用戶信息,權限信息)/
* SIGNATURE(簽名信息-對header和payload部分加密)
* */
@Configuration //配置對象--系統啟動時底層會產生代理對象,來初始化一些對象
public class TokenConfig {
  //定義令牌簽發口令(暗號,規則),解密口令
  //當客戶端在執行登錄時,加入有攜帶這個信息,認證服務器可以簽發令牌

  private String SIGNING_KEY = "auth"; 在對header和payload簽名時,需要的一個口令
  //構建令牌生成器對象()
  @Bean
  public TokenStore tokenStore(){
      return new JwtTokenStore(jwtAccessTokenConverter());//令牌生成器(jwt轉換器)
  }

  @Bean
   //Jwt轉換器,將任何數據轉換為jwt字符串
  public JwtAccessTokenConverter jwtAccessTokenConverter(){
      JwtAccessTokenConverter converter=new JwtAccessTokenConverter();
      //設置加密/解密口令
      converter.setSigningKey(SIGNING_KEY);
      return converter;
  }

}

Java spring單點登錄系統

創建認證管理器對象

在SecurityConfig中添加如下方法（后面授權服務器會用到）：

  /**
   * 配置認證管理器(負責對客戶輸入的用戶信息進行認證),在其他配置類中會用到這個對象
   * @return
   * @throws Exception
   */
  @Bean
  public AuthenticationManager authenticationManagerBean()
          throws Exception {
      return super.authenticationManagerBean();
  }

3.7 定義認證授權核心配置

授權服務器的核心配置

package com.jt.auth.config;

import lombok.AllArgsConstructor;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.HttpMethod;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.security.oauth2.config.annotation.configurers.ClientDetailsServiceConfigurer;
import org.springframework.security.oauth2.config.annotation.web.configuration.AuthorizationServerConfigurerAdapter;
import org.springframework.security.oauth2.config.annotation.web.configuration.EnableAuthorizationServer;
import org.springframework.security.oauth2.config.annotation.web.configurers.AuthorizationServerEndpointsConfigurer;
import org.springframework.security.oauth2.config.annotation.web.configurers.AuthorizationServerSecurityConfigurer;
import org.springframework.security.oauth2.provider.token.AuthorizationServerTokenServices;
import org.springframework.security.oauth2.provider.token.DefaultTokenServices;
import org.springframework.security.oauth2.provider.token.TokenEnhancerChain;
import org.springframework.security.oauth2.provider.token.TokenStore;
import org.springframework.security.oauth2.provider.token.store.JwtAccessTokenConverter;

import java.util.Arrays;

/**
* 完成所有配置的組裝,在這個配置類中完成認證授權,JWT令牌簽發等配置操作
* 1)SpringSecurity (安全認證和授權)
* 2)TokenConfig
* 3)Oauth2(暫時不說)
*/

@AllArgsConstructor
@Configuration
@EnableAuthorizationServer //開啟認證和授權服務
public class Oauth2Config extends AuthorizationServerConfigurerAdapter {
  //此對象負責完成認證管理
  private AuthenticationManager authenticationManager;
  //TokenStore負責完成令牌創建,信息讀取
  private TokenStore tokenStore;
  //負責獲取用戶詳情信息(username,password,client_id,grant_type,client_secret)
  //private ClientDetailsService clientDetailsService;
  //JWT令牌轉換器(基于用戶信息構建令牌,解析令牌)
  private JwtAccessTokenConverter jwtAccessTokenConverter;
  //密碼加密匹配器對象
  private PasswordEncoder passwordEncoder;
  //負責獲取用戶信息信息
  private UserDetailsService userDetailsService;

  //設置認證端點的配置(/oauth/token),客戶端通過這個路徑獲取JWT令牌
  @Override
  public void configure(AuthorizationServerEndpointsConfigurer endpoints) throws Exception {
      endpoints
      //配置認證管理器
      .authenticationManager(authenticationManager)
      //驗證用戶的方法獲得用戶詳情
      .userDetailsService(userDetailsService)
      //要求提交認證使用post請求方式,提高安全性
      .allowedTokenEndpointRequestMethods(HttpMethod.POST,HttpMethod.GET)
      //要配置令牌的生成,由于令牌生成比較復雜,下面有方法實現
      .tokenServices(tokenService());//這個不配置,默認令牌為UUID.randomUUID().toString()
  }

  //定義令牌生成策略
  @Bean
  public AuthorizationServerTokenServices tokenService(){
      //這個方法的目標就是獲得一個令牌生成器
      DefaultTokenServices services=new DefaultTokenServices();
      //支持令牌刷新策略(令牌有過期時間)
      services.setSupportRefreshToken(true);
      //設置令牌生成策略(tokenStore在TokenConfig配置了,本次我們應用JWT-定義了一種令牌格式)
      services.setTokenStore(tokenStore);
      //設置令牌增強(固定用法-令牌Payload部分允許添加擴展數據,例如用戶權限信息)
      TokenEnhancerChain chain=new TokenEnhancerChain();
      chain.setTokenEnhancers(
              Arrays.asList(jwtAccessTokenConverter));
      //令牌增強對象設置到令牌生成
      services.setTokenEnhancer(chain);
      //設置令牌有效期
      services.setAccessTokenValiditySeconds(3600);//1小時
      //刷新令牌應用場景：一般在用戶登錄系統后，令牌快過期時，系統自動幫助用戶刷新令牌，提高用戶的體驗感
      services.setRefreshTokenValiditySeconds(3600*72);//3天
      //配置客戶端詳情
      //services.setClientDetailsService(clientDetailsService);
      return services;
  }

  //設置客戶端詳情類似于用戶詳情
  @Override
  public void configure(ClientDetailsServiceConfigurer clients) throws Exception {
      clients.inMemory()
      //客戶端id
      .withClient("gateway-client")
      //客戶端秘鑰
      .secret(passwordEncoder.encode("123456"))
      //設置權限
      .scopes("all")//all只是個名字而已和寫abc效果相同
      //允許客戶端進行的操作  里面的字符串千萬不能寫錯
      .authorizedGrantTypes("password","refresh_token");
  }
  // 認證成功后的安全約束配置
  @Override
  public void configure(AuthorizationServerSecurityConfigurer security) throws Exception {
      //認證通過后,允許客戶端進行哪些操作
      security
      //公開oauth/token_key端點
      .tokenKeyAccess("permitAll()")
      //公開oauth/check_token端點
      .checkTokenAccess("permitAll()")
      //允許提交請求進行認證(申請令牌)
      .allowFormAuthenticationForClients();
  }
}

Postman訪問測試

第一步：?jiǎn)?dòng)服務
依次啟動sca-auth服務，sca-resource-gateway，sca-resource-ui服務。

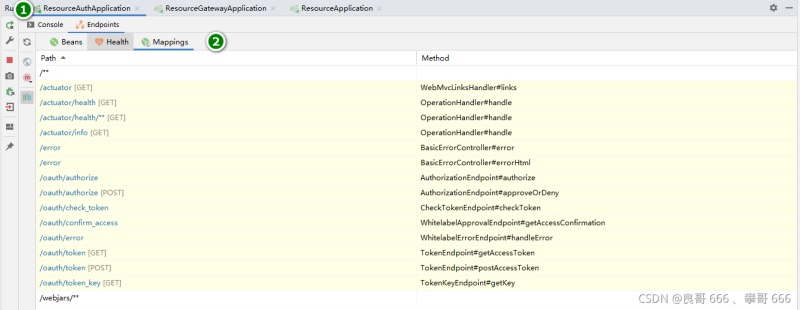

第二步：檢測sca-auth服務控制臺的Endpoints信息，例如:

Java spring單點登錄系統

打開postman進行登陸訪問測試

Java spring單點登錄系統

{
  "access_token": "eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJleHAiOjE2MzAwNzYxMTAsInVzZXJfbmFtZSI6ImphY2siLCJhdXRob3JpdGllcyI6WyJzeXM6cmVzOmNyZWF0ZSIsInN5czpyZXM6cmV0cmlldmUiXSwianRpIjoiM2Q0MzExOTYtYmRkZi00Y2NhLWFmMDMtNWMzNGM4ZmJkNzQ3IiwiY2xpZW50X2lkIjoiZ2F0ZXdheS1jbGllbnQiLCJzY29wZSI6WyJhbGwiXX0.GnrlqsZMSdagDaRQDZWDLbY7I7KUlXQgyXATcXXS6FI",
  "token_type": "bearer",

4 資源服務器配置Csca-resource

Java spring單點登錄系統

4.1 構建令牌配置對象

package com.jt.resource.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.method.configuration.EnableGlobalMethodSecurity;
import org.springframework.security.oauth2.config.annotation.web.configuration.EnableResourceServer;
import org.springframework.security.oauth2.provider.token.TokenStore;
import org.springframework.security.oauth2.provider.token.store.JwtAccessTokenConverter;
import org.springframework.security.oauth2.provider.token.store.JwtTokenStore;

/*
*創建jwt類型令牌
*構建令牌的構成有三部分:
* header(頭部信息:令牌類型)/
* payload(數據信息-用戶信息,權限信息)/
* SIGNATURE(簽名信息-對header和payload部分加密)
* */
@Configuration //配置對象--系統啟動時底層會產生代理對象,來初始化一些對象
public class TokenConfig {
  //定義令牌簽發口令(暗號,規則),解密口令
  //當客戶端在執行登錄時,加入有攜帶這個信息,認證服務器可以簽發令牌
  //在對header和payload簽名時
  private String SIGNING_KEY = "auth";
  //構建令牌生成器對象()
  @Bean
  public TokenStore tokenStore(){
      return new JwtTokenStore(jwtAccessTokenConverter());//令牌生成器(轉換器)
  }
  //Jwt轉換器,將任何數據轉換為jwt字符串
  @Bean
  public JwtAccessTokenConverter jwtAccessTokenConverter(){
      JwtAccessTokenConverter converter=new JwtAccessTokenConverter();
      //設置加密/解密口令
      converter.setSigningKey(SIGNING_KEY);
      return converter;
  }
}

4.2 資源服務令牌解析配置

2.將對象轉換為json
      //Gson-->toJson  (需要自己找依賴)
      //fastjson-->JSON (spring-cloud-starter-alibaba-sentinel)
      //jackson-->writeValueAsString (spring-boot-starter-web)

package com.jt.resource.config;

import com.alibaba.fastjson.JSON;
import com.google.gson.Gson;
import com.fasterxml.jackson.databind.ObjectMapper;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.method.configuration.EnableGlobalMethodSecurity;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.oauth2.config.annotation.web.configuration.EnableResourceServer;
import org.springframework.security.oauth2.config.annotation.web.configuration.ResourceServerConfigurerAdapter;
import org.springframework.security.oauth2.config.annotation.web.configurers.ResourceServerSecurityConfigurer;
import org.springframework.security.oauth2.provider.token.TokenStore;
import org.springframework.security.web.AuthenticationEntryPoint;
import org.springframework.security.web.access.AccessDeniedHandler;

import javax.servlet.http.HttpServletResponse;
import java.io.PrintWriter;
import java.util.HashMap;
import java.util.Map;

/**
* 資源服務器的配置,在這個對象
* 1)JWT 令牌解析配置(客戶端帶著令牌訪問資源時，要對令牌進行解析)
* 2) 啟動資源訪問的授權配置(不是所有登陸用戶可以訪問所有資源)
*/
@Configuration
@EnableResourceServer 此注解會啟動資源服務器的默認配置
@EnableGlobalMethodSecurity(prePostEnabled = true) //執行方法之前啟動權限檢查
public class ResourceServerConfig extends ResourceServerConfigurerAdapter {

  @Autowired
  private TokenStore tokenStore;
  /**
   * token服務配置
   */
  @Override
  public void configure(ResourceServerSecurityConfigurer resources) throws Exception {
      //super.configure(resources);
      //定義令牌生成策略，這里不是要?jiǎng)?chuàng)建令牌，是要解析令牌
      resources.tokenStore(tokenStore);
  }
  /**
   * 路由安全認證配置
   */
  @Override
  public void configure(HttpSecurity http) throws Exception {
      //super.configure(http);
      http.csrf().disable();//關閉跨域攻擊
      //放行所有的資源訪問(對資源的方問不做認證)
      http.authorizeRequests().anyRequest().permitAll();
      //http.authorizeRequests().mvcMatchers("/resource/**")
      //        .authenticated(); //假如沒有認證就訪問會報401異常
      //處理異常
      http.exceptionHandling()
              .accessDeniedHandler(accessDeniedHandler()); //403的異常處理  .拒絕訪問的處理(AccessDeniedHandler類型對象)

  }


  @Bean
  public AccessDeniedHandler accessDeniedHandler() { //返回  AccessDeniedHandler對象
      return (request,response, exception)->{

          Map<String,Object> map = new HashMap<>();
          map.put("state", HttpServletResponse.SC_FORBIDDEN);//403
          map.put("message", "抱歉，沒有這個資源");
          //1設置響應數據的編碼
          response.setCharacterEncoding("utf-8");
          //2告訴瀏覽器響應數據的內容類型以及編碼
          response.setContentType("application/json;charset=utf-8");
          //2.將對象轉換為json

          //1.fastjson-->JSON (spring-cloud-starter-alibaba-sentinel)
          //String jsonStr= JSON.toJSONString(map);//fastjson
          //2.Gson-->toJson  (需要自己找依賴)
          Gson gson = new Gson();
          String jsonStr = gson.toJson(map);
          //jackson-->writeValueAsString (spring-boot-starter-web)
          //String jsonStr = new ObjectMapper().writeValueAsString(map);
          PrintWriter writer = response.getWriter();
          writer.println(jsonStr);
          writer.flush();
      };
  }

}

4.3 設置資源訪問的權限

在ResourceController的上傳方法上添加 @PreAuthorize(“hasAuthority(‘sys:res:create')”)注解，用于告訴底層框架方法此方法需要具備的權限，

@PreAuthorize("hasAuthority('sys:res:create')")
@PostMapping("/upload/")
 public String uploadFile(MultipartFile uploadFile) throws IOException {
     ...
 }

不加權限,會報403異常,并且展示我們修改403異常的信息返回在控制臺上

4.4 啟動服務訪問測試

4.4.1 訪問auth認證授權服務獲取token

啟動服務（sca-auth,sca-resource-gateway,sca-resource)
執行POSTMAN ,訪問 auth認證授權服務 http://localhost:9001/auth/oauth/token, 獲取token

Java spring單點登錄系統

4.4.2 攜帶TOKEN訪問資源服務器

復制access_token ,請求地址: http://localhost:9001/sca/resource/upload/

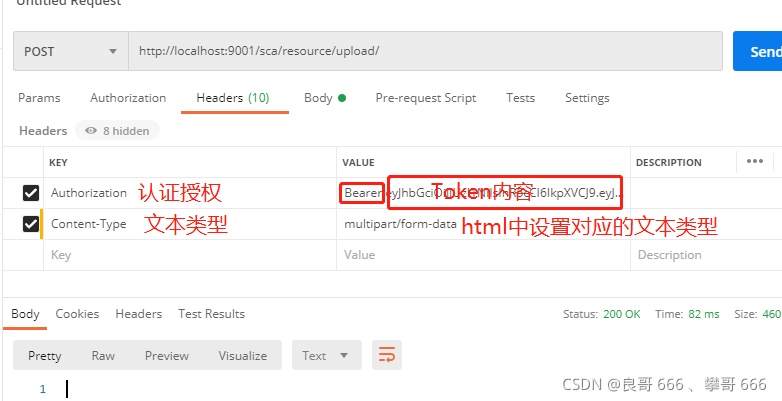

1.設置請求頭，要攜帶令牌并指定請求的內容類型

Java spring單點登錄系統

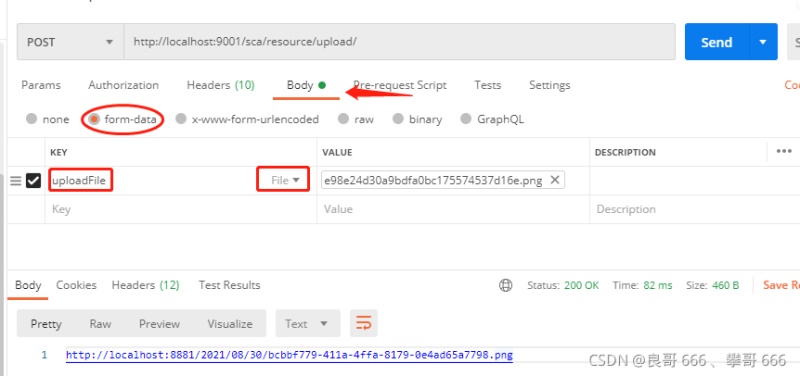

2. 設置請求體，設置form-data，key要求為file類型，參數名與你服務端controller文件上傳方法的參數名相同，值為你選擇的文件

Java spring單點登錄系統

4.4.3 對403異常前端頁面顯示

function upload(file){
      //定義一個表單
      let form=new FormData();
      //將圖片添加到表單中
      form.append("uploadFile",file);
      let url="http://localhost:9000/sca/resource/upload/";
      //異步提交方式1
      axios.post(url,form,{headers:{"Authorization":"Bearer "+localStorage.getItem("accessToken")}})
           .then(function (response){
               let result=response.data;
               if(result.state==403){
                   alert(result.message);
                   return;
               }
               alert("upload ok");
           })
  }

1.啟動服務（sca-auth,sca-resource-gateway,sca-resource)
2.執行登陸 localhost:8080/login-sso.html 獲取access_token令牌

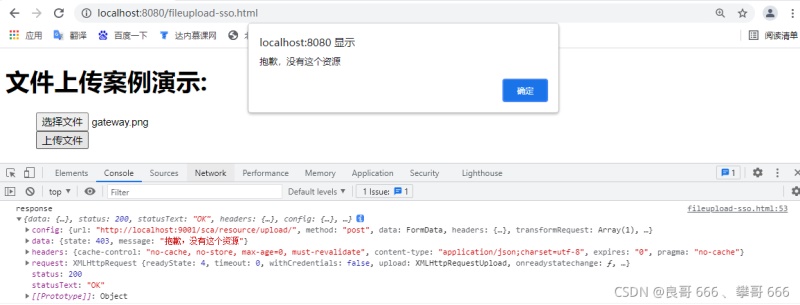

3.攜帶令牌訪問資源(url中的前綴"sca"是在資源服務器中自己指定的,你的網關怎么配置的,你就怎么寫)

Java spring單點登錄系統

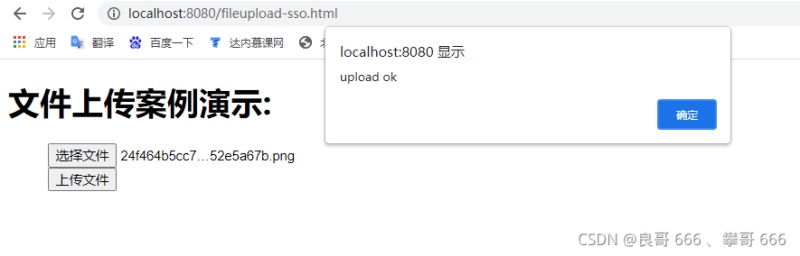

成功:

Java spring單點登錄系統

403異常,沒有訪問權限

Java spring單點登錄系統

4.5 Oauth2規范

oauth2定義了一種認證授權協議，一種規范，此規范中定義了四種類型的角色：
1)資源有者(User)
2)認證授權服務器(jt-auth)
3)資源服務器(jt-resource)
4)客戶端應用(jt-ui)
同時，在這種協議中規定了認證授權時的幾種模式：
1)密碼模式 (基于用戶名和密碼進行認證)
2)授權碼模式(就是我們說的三方認證：QQ，微信，微博，。。。。)
3)…

4.6 面試問題點

單點登陸系統的設計架構（微服務架構）
服務的設計及劃分(資源服務器，認證服務器，網關服務器，客戶端服務）
認證及資源訪問的流程(資源訪問時要先認證再訪問)
認證和授權時的一些關鍵技術(Spring Security,Jwt,Oauth2)
FAQ 分析
為什么要單點登陸（分布式系統，再訪問不同服務資源時，不要總是要登陸，進而改善用戶體驗）
單點登陸解決方案？(市場常用兩種: spring security+jwt+oauth2,spring securit+redis+oauth2)
Spring Security 是什么？（spring框架中的一個安全默認，實現了認證和授權操作）
JWT是什么？（一種令牌格式，一種令牌規范，通過對JSON數據采用一定的編碼，加密進行令牌設計）
OAuth2是什么？（一種認證和授權規范，定義了單點登陸中服務的劃分方式，認證的相關類型）
…

5 Bug 分析

401 : 訪問資源時沒有認證。
403 : 訪問資源時沒有權限。
404：訪問的資源找不到（一定要檢查你訪問資源的url）
405: 請求方式不匹配（客戶端請求方式是GET，服務端處理請求是Post就是這個問題）
500: 不看后臺無法解決？（error,warn）
…

到此這篇關于Java spring單點登錄系統的文章就介紹到這了,更多相關Java單點登錄內容請搜索服務器之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持服務器之家！

原文鏈接：https://blog.csdn.net/weixin_58678891/article/details/119959552
