本文實例為大家分享了OpenCV實現直線檢測并消除的具體代碼，供大家參考，具體內容如下
很簡單，代碼如下
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
|
#include<iostream>#include<opencv.hpp> using namespace cv;using namespace std; int main(){ Mat img, dst, img_gary, img_bin, temp, r_line, c_line, kernel; char INPUT[] = "input"; char OUTPUT[] = "output"; char GRAY_IMG[] = "gary image"; char BIN_IMG[] = "binary image"; char DST_IMG[] = "final image"; img = imread("D:\\OpenCV\\images\\demo_test_2.jpg"); if (img.empty()) { cout << "image loading failed..." << endl; return -1; } namedWindow(INPUT, WINDOW_AUTOSIZE); imshow(INPUT, img); cvtColor(img, img_gary, COLOR_BGR2GRAY); imshow(GRAY_IMG, img_gary); adaptiveThreshold(~img_gary, img_bin, 255, ADAPTIVE_THRESH_MEAN_C, THRESH_BINARY, 15, -2); imshow(BIN_IMG, img_bin); //水平結構元素 r_line = getStructuringElement(MORPH_RECT, Size(img.cols / 16, 1), Point(-1, -1)); //垂直結構元素 c_line = getStructuringElement(MORPH_RECT, Size(1, img.rows / 16), Point(-1, -1)); kernel = getStructuringElement(MORPH_RECT, Size(4, 4), Point(-1, -1)); erode(img_bin, temp, kernel); dilate(temp, dst, kernel); //erode(img_bin, temp, r_line); //dilate(temp, dst, r_line); //morphologyEx(img_bin, dst, MORPH_OPEN, c_line); bitwise_not(dst, dst); //blur(dst, dst, Size(3, 3), Point(-1, -1)); imshow(DST_IMG, dst); waitKey(0); return 0;} |
放幾張效果圖

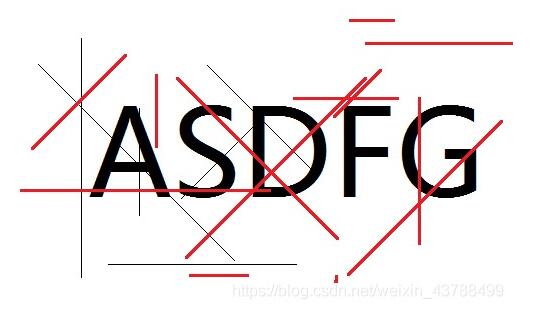

原圖
處理結果
以上就是本文的全部?jī)?nèi)容，希望對大家的學習有所幫助，也希望大家多多支持服務器之家。
