最近要做動態數據的提交處理，即需要分析提交數據字段定義信息后才能明確對應的具體字段類型，進而做數據類型轉換和字段有效性校驗，然后做業務處理后提交數據庫，自己開發一套校驗邏輯的話周期太長，因此分析了spring validation的實現原理，復用了其底層花樣繁多的validator，在此將分析spring validation原理的過程記錄下，不深入細節
如何使用spring validation
spring bean初始化時校驗bean是否符合jsr-303規范
1、手動添加beanvalidationpostprocessor bean
2、在model類中定義校驗規則，如@max、@min、@notempty
3、聲明bean，綜合代碼如下：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
|
@beanpublic beanpostprocessor beanvalidationpostprocessor() { return new beanvalidationpostprocessor();}@beanpublic usermodel getusermodel() { usermodel usermodel = new usermodel(); usermodel.setusername(null); usermodel.setpassword("123"); return usermodel;}@dataclass usermodel { @notnull(message = "username can not be null") @pattern(regexp = "[a-za-z0-9_]{5,10}", message = "username is illegal") private string username; @size(min = 5, max = 10, message = "password's length is illegal") private string password;} |
4、beanvalidationpostprocessor bean內部有個boolean類型的屬性afterinitialization，默認是false，如果是false，在postprocessbeforeinitialization過程中對bean進行驗證，否則在postprocessafterinitialization過程對bean進行驗證
5、此種校驗使用了spring的beanpostprocessor邏輯
6、校驗底層調用了dovalidate方法，進一步調用validator.validate，默認validator為hibernatevalidator，validation-api包為java規范，spring默認的規范實現為hibernate-validator包，此hibernate非orm框架hibernate
|
1
2
3
|
protected void dovalidate(object bean) { assert.state(this.validator != null, "no validator set"); set<constraintviolation<object>> result = this.validator.validate(bean); |
7、hibernatevalidator默認調用validatorfactoryimpl來生成validator，后面展開將validatorfactoryimpl
支持方法級別的jsr-303規范
1、手動添加methodvalidationpostprocessor bean
2、類上加上@validated注解（也支持自定義注解，創建methodvalidationpostprocessor bean時傳入）
3、在方法的參數中加上驗證注解，比如@max、@min、@notempty、@notnull等，如
|
1
2
3
4
5
6
7
|
@component@validatedpublic class beanformethodvalidation { public void validate(@notempty string name, @min(10) int age) { system.out.println("validate, name: " + name + ", age: " + age); }} |
4、methodvalidationpostprocessor內部使用aop完成對方法的調用
|
1
2
3
4
5
6
7
|
public void afterpropertiesset() { pointcut pointcut = new `annotationmatchingpointcut`(this.validatedannotationtype, true); this.advisor = new `defaultpointcutadvisor`(pointcut, createmethodvalidationadvice(this.validator));}protected advice createmethodvalidationadvice(@nullable validator validator) { return (validator != null ? new `methodvalidationinterceptor`(validator) : new methodvalidationinterceptor());} |
5、底層同樣默認調用validatorfactoryimpl來生成validator，由validator完成校驗
直接編碼調用校驗邏輯，如
|
1
2
3
4
5
6
7
8
9
10
11
12
|
public class person {@notnull(message = "性別不能為空")private gender gender;@min(10)private integer age;...}validatorfactory validatorfactory = validation.builddefaultvalidatorfactory();validator validator = validatorfactory.getvalidator();person person = new person();person.setgender(gender.man);validator.validate(person); |
同上，默認調用validatorfactoryimpl來生成validator，由validator完成具體校驗
在spring controller方法參數中使用valid或validated注解標注待校驗參數

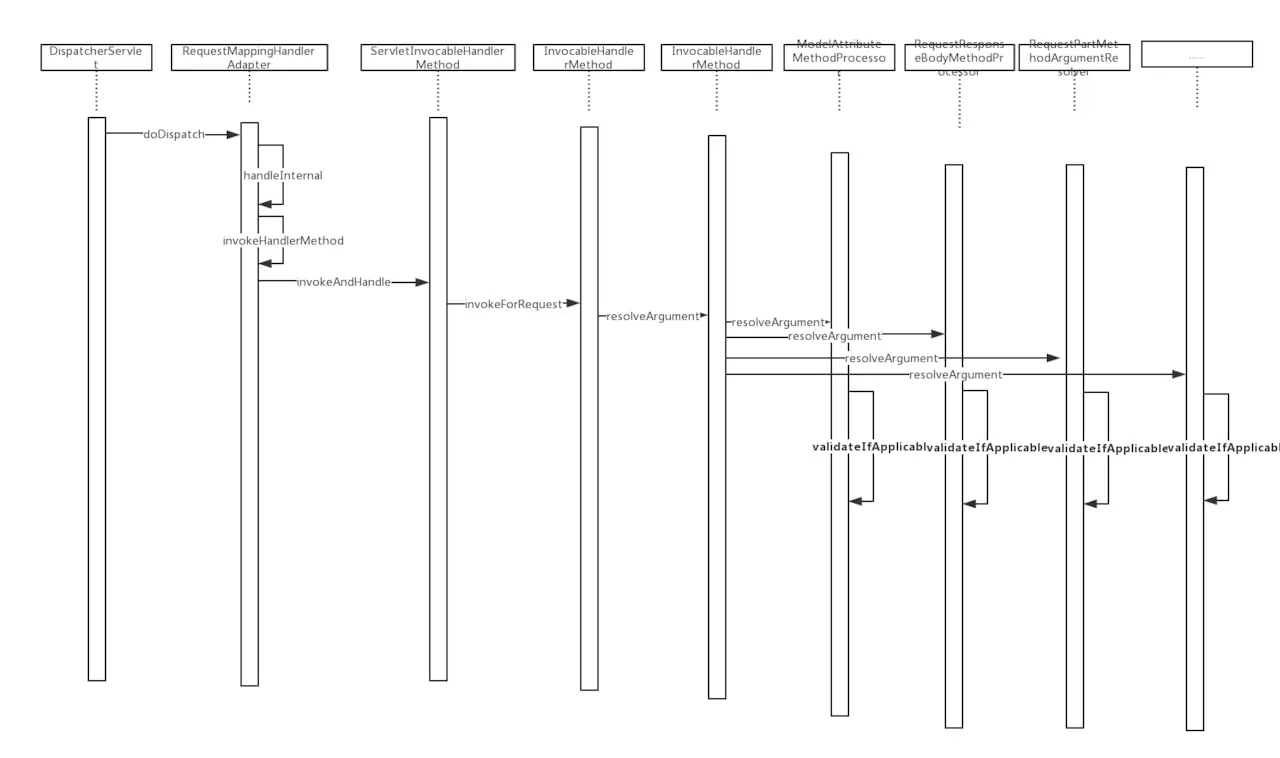

1、先熟悉下spring的請求調用流程
2、可以看到在各種resolver處理請求參數的過程中做了參數校驗
3、底層統一調用了databinder的validate方法
4、databinder的作用：binder that allows for setting property values onto a target object, including support for validation and binding result analysis，也就是binder處理了request提交的字符串形式的參數，將其轉換成服務端真正需要的類型，binder提供了對validation的支持，可以存放校驗結果
5、databinder的validator默認在configurablewebbindinginitializer中初始化，默認使用optionalvalidatorfactorybean，該bean繼承了localvalidatorfactorybean，localvalidatorfactorybean組合了validatorfactory、自定義校驗屬性等各種校驗會用到的信息，默認使用validatorfactoryimpl來獲取validator
至此，所有的線索都指向了validatorfactoryimpl，下面分析下該類
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
|
public validator `getvalidator`() { return `createvalidator`( constraintvalidatormanager.getdefaultconstraintvalidatorfactory(), valueextractormanager, validatorfactoryscopedcontext, methodvalidationconfiguration );}validator `createvalidator`(constraintvalidatorfactory constraintvalidatorfactory, valueextractormanager valueextractormanager, validatorfactoryscopedcontext validatorfactoryscopedcontext, methodvalidationconfiguration methodvalidationconfiguration) { beanmetadatamanager beanmetadatamanager = beanmetadatamanagers.computeifabsent( new beanmetadatamanagerkey( validatorfactoryscopedcontext.getparameternameprovider(), valueextractormanager, methodvalidationconfiguration ), key -> new beanmetadatamanager( `constrainthelper`, executablehelper, typeresolutionhelper, validatorfactoryscopedcontext.getparameternameprovider(), valueextractormanager, validationordergenerator, builddataproviders(), methodvalidationconfiguration ) ); return `new validatorimpl`( constraintvalidatorfactory, beanmetadatamanager, valueextractormanager, constraintvalidatormanager, validationordergenerator, validatorfactoryscopedcontext );}public final <t> set<constraintviolation<t>> validate(t object, class<?>... groups) { contracts.assertnotnull( object, messages.validatedobjectmustnotbenull() ); sanitycheckgroups( groups ); validationcontext<t> validationcontext = `getvalidationcontextbuilder().forvalidate( object )`; if ( !validationcontext.getrootbeanmetadata().hasconstraints() ) { return collections.emptyset(); } validationorder validationorder = determinegroupvalidationorder( groups ); valuecontext<?, object> valuecontext = `valuecontext.getlocalexecutioncontext`( validatorscopedcontext.getparameternameprovider(), object, validationcontext.getrootbeanmetadata(), pathimpl.createrootpath() ); return validateincontext( validationcontext, valuecontext, validationorder );} |
1、getvalidator->createvalidator->validatorimpl->validate
在執行過程中封裝了beanmetadatamanager、validationcontext、valuecontext等內容，都是校驗時會用到的上下文信息，如待校驗bean的所有校驗項（含父類和接口）、property、method parameter的校驗信息，從validatorfactoryscopedcontext繼承過來的validator通用的各種工具類（如message、script等的處理）等，內容比較復雜
2、分組校驗忽略，來到默認分組處理validateconstraintsfordefaultgroup->validateconstraintsforsingledefaultgroupelement->validatemetaconstraint(注：metaconstraints維護了該bean類型及其父類、接口的所有校驗，需要遍歷調用validatemetaconstraint)
3、繼續調用metaconstraint的dovalidateconstraint方法，根據不同的annotation type走不同的constrainttree
|
1
2
3
4
5
6
7
8
|
public static <u extends annotation> constrainttree<u> of(constraintdescriptorimpl<u> composingdescriptor, type validatedvaluetype) { if ( composingdescriptor.getcomposingconstraintimpls().isempty() ) { return new simpleconstrainttree<>( composingdescriptor, validatedvaluetype ); } else { return new composingconstrainttree<>( composingdescriptor, validatedvaluetype ); }} |
4、具體哪些走simple，哪些走composing暫且不管，因?yàn)槎叨颊{(diào)用了constrainttree的'getinitializedconstraintvalidator'方法，該步用來獲取校驗annotation（如decimalmax、notempty等）對應的validator并初始化validator
5、 constrainthelper 類維護了所有builtin的validator，并根據校驗annotation（如decimalmax）分類，validator的描述類中維護了該validator的泛型模板（如bigdecimal），如下：
|
1
2
3
4
5
6
7
8
9
10
|
putconstraints( tmpconstraints, decimalmax.class, arrays.aslist( decimalmaxvalidatorforbigdecimal.class, decimalmaxvalidatorforbiginteger.class, decimalmaxvalidatorfordouble.class, decimalmaxvalidatorforfloat.class, decimalmaxvalidatorforlong.class, decimalmaxvalidatorfornumber.class, decimalmaxvalidatorforcharsequence.class, decimalmaxvalidatorformonetaryamount.class) ); |
在獲取具體bean類的validator時，先根據annotation獲取所有的validator，對應方法是constraintmanager.findmatchingvalidatordescriptor，然后根據被校驗對象的類型獲取唯一的validator
6、然后根據上下文信息initializevalidator，進而調用validator的isvalid方法校驗
以上就是本文的全部?jī)?nèi)容，希望對大家的學習有所幫助，也希望大家多多支持服務器之家。
