elasticsearch從6.8開始， 允許免費用戶使用x-pack的安全功能， 以前安裝es都是裸奔。接下來記錄配置安全認證的方法。
為了簡化物理安裝過程，我們將使用docker安裝我們的服務。
一些基礎配置
es需要修改linux的一些參數。
設置vm.max_map_count=262144
|
1
2
|
sudo vim /etc/sysctl.confvm.max_map_count=262144 |
不重啟， 直接生效當前的命令
|
1
|
sysctl -w vm.max_map_count=262144 |
es的data和logs目錄需要給1000的用戶授權， 我們假設安裝3個實力的es集群，先創建對應的數據存儲文件
|
1
2
3
4
5
6
7
8
9
|
mkdir -p es01/datamkdir -p es01/logsmkdir -p es02/datamkdir -p es02/logsmkdir -p es03/datamkdir -p es03/logs## es的用戶id為1000，這里暫且授權給所有人好了sudo chmod 777 es* -r |
關于版本和docker鏡像

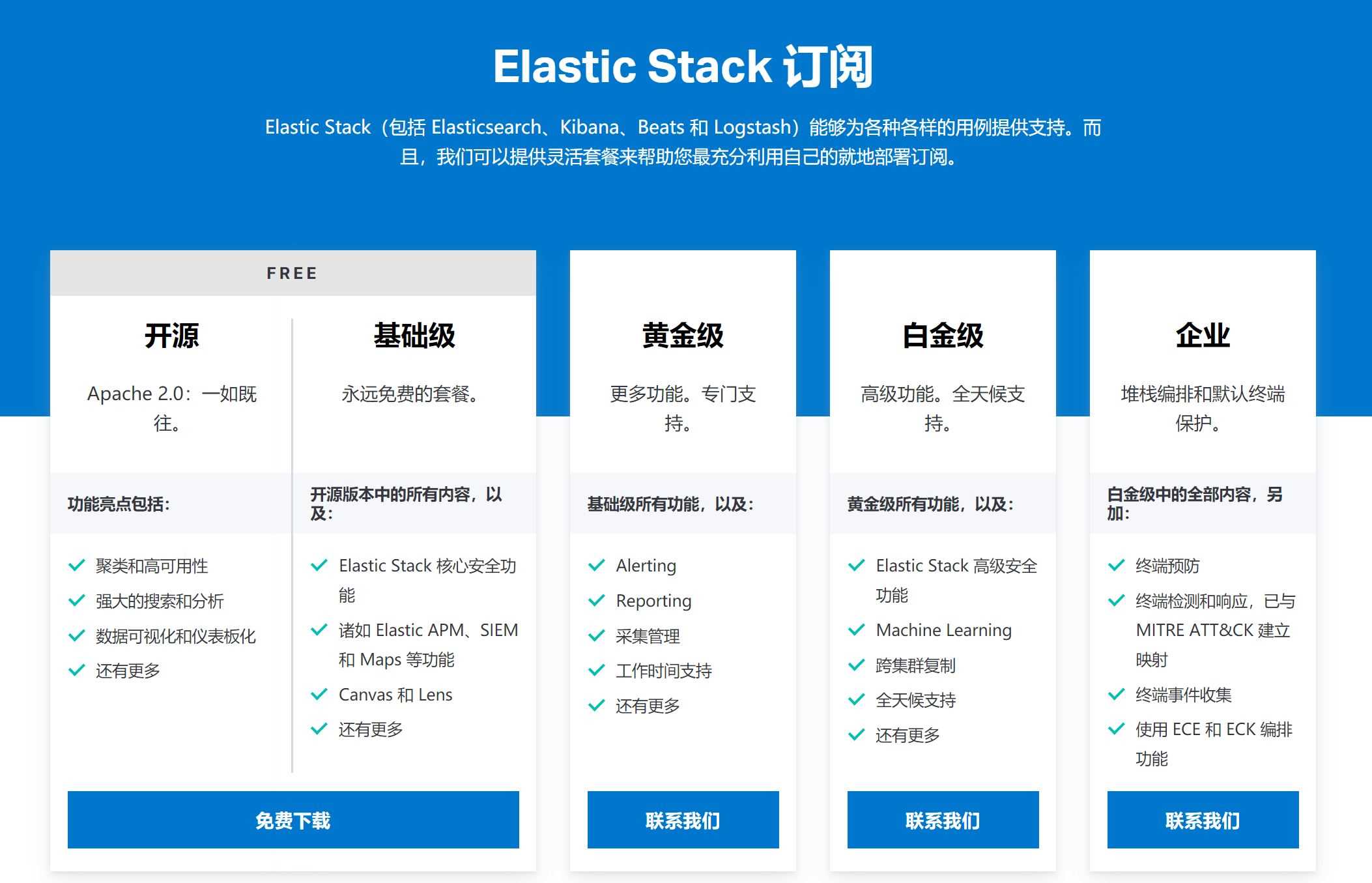

elasticsearch分幾種licenses，其中open source和basic是免費的， 而在6.8之后安全功能才開始集成在es的basic授權上。
basic對應docker鏡像為
|
1
|
docker pull docker.elastic.co/elasticsearch/elasticsearch:7.6.2 |
同時dockerhub同步為elasticsearch. 我們直接拉取elasticsearch:7.6.2就好。
開始
安裝文件均放在github： https://github.com/ryan-miao/docker-china-source/tree/master/docker-elasticsearch
首先，創建docker-compose.yml
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
|
version: '2.2'services: es01: image: elasticsearch:7.6.2 container_name: es01 environment: - node.name=es01 - cluster.name=es-docker-cluster - discovery.seed_hosts=es02,es03 - cluster.initial_master_nodes=es01,es02,es03 - bootstrap.memory_lock=true - "es_java_opts=-xms512m -xmx512m" ulimits: memlock: soft: -1 hard: -1 volumes: - ./es01/data:/usr/share/elasticsearch/data - ./es01/logs:/usr/share/elasticsearch/logs - ./elasticsearch.yml:/usr/share/elasticsearch/config/elasticsearch.yml - ./elastic-certificates.p12:/usr/share/elasticsearch/config/elastic-certificates.p12 ports: - 9200:9200 networks: - elastic es02: image: elasticsearch:7.6.2 container_name: es02 environment: - node.name=es02 - cluster.name=es-docker-cluster - discovery.seed_hosts=es01,es03 - cluster.initial_master_nodes=es01,es02,es03 - bootstrap.memory_lock=true - "es_java_opts=-xms512m -xmx512m" ulimits: memlock: soft: -1 hard: -1 volumes: - ./es02/data:/usr/share/elasticsearch/data - ./es02/logs:/usr/share/elasticsearch/logs - ./elasticsearch.yml:/usr/share/elasticsearch/config/elasticsearch.yml - ./elastic-certificates.p12:/usr/share/elasticsearch/config/elastic-certificates.p12 ports: - 9201:9200 networks: - elastic es03: image: elasticsearch:7.6.2 container_name: es03 environment: - node.name=es03 - cluster.name=es-docker-cluster - discovery.seed_hosts=es01,es02 - cluster.initial_master_nodes=es01,es02,es03 - bootstrap.memory_lock=true - "es_java_opts=-xms512m -xmx512m" ulimits: memlock: soft: -1 hard: -1 volumes: - ./es03/data:/usr/share/elasticsearch/data - ./es03/logs:/usr/share/elasticsearch/logs - ./elasticsearch.yml:/usr/share/elasticsearch/config/elasticsearch.yml - ./elastic-certificates.p12:/usr/share/elasticsearch/config/elastic-certificates.p12 ports: - 9202:9200 networks: - elastic kib01: depends_on: - es01 image: kibana:7.6.2 container_name: kib01 ports: - 5601:5601 environment: elasticsearch_url: http://es01:9200 elasticsearch_hosts: http://es01:9200 volumes: - ./kibana.yml:/usr/share/kibana/config/kibana.yml networks: - elasticnetworks: elastic: driver: bridge |
關于elasticsearch.yml
內容如下
|
1
2
3
4
5
6
7
8
9
10
|
network.host: 0.0.0.0xpack.security.enabled: truexpack.security.transport.ssl.enabled: truexpack.security.transport.ssl.keystore.type: pkcs12xpack.security.transport.ssl.verification_mode: certificatexpack.security.transport.ssl.keystore.path: elastic-certificates.p12xpack.security.transport.ssl.truststore.path: elastic-certificates.p12xpack.security.transport.ssl.truststore.type: pkcs12xpack.security.audit.enabled: true |
- network.host 設置允許其他ip訪問，解除ip綁定
- xpack.security 則是安全相關配置，其中ssl的證書需要自己生成
關于證書elastic-certificates.p12
es提供了生成證書的工具elasticsearch-certutil，我們可以在docker實例中生成它，然后復制出來，后面統一使用。
首先運行es實例
|
1
|
sudo docker run -dit --name=es elasticsearch:7.6.2 /bin/bash |
進入實例內部
|
1
|
sudo docker exec -it es /bin/bash |
生成ca: elastic-stack-ca.p12
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
|
[root@25dee1848942 elasticsearch]# ./bin/elasticsearch-certutil cathis tool assists you in the generation of x.509 certificates and certificatesigning requests for use with ssl/tls in the elastic stack.the 'ca' mode generates a new 'certificate authority'this will create a new x.509 certificate and private key that can be usedto sign certificate when running in 'cert' mode.use the 'ca-dn' option if you wish to configure the 'distinguished name'of the certificate authorityby default the 'ca' mode produces a single pkcs#12 output file which holds: * the ca certificate * the ca's private keyif you elect to generate pem format certificates (the -pem option), then the output willbe a zip file containing individual files for the ca certificate and private keyplease enter the desired output file [elastic-stack-ca.p12]: enter password for elastic-stack-ca.p12 : |
再生成cert: elastic-certificates.p12
|
1
2
3
4
5
|
[root@25dee1848942 elasticsearch]# ./bin/elasticsearch-certutil cert --ca elastic-stack-ca.p12this tool assists you in the generation of x.509 certificates and certificatesigning requests for use with ssl/tls in the elastic stack.the 'cert' mode generates x.509 certificate and private keys. |
這個生成elastic-certificates.p12 就是我們需要使用的。
復制出證書, ctrl+d退出容器內部
|
1
2
3
4
|
sudo docker cp es:/usr/share/elasticsearch/elastic-certificates.p12 .# 關閉這個容器sudo docker kill essudo docker rm es |
如此獲取了證書。
生成密碼
我們首先要啟動es集群，去里面生成密碼。
|
1
|
sudo docker-compose up |
然后進入其中一臺
|
1
|
sudo docker exec -it es01 /bin/bash |
生成密碼用auto， 自己設置用 interactive
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
|
[root@cfeeab4bb0eb elasticsearch]# ./bin/elasticsearch-setup-passwords -hsets the passwords for reserved userscommands--------auto - uses randomly generated passwordsinteractive - uses passwords entered by a usernon-option arguments:command option description ------ ----------- -e <keyvaluepair> configure a setting-h, --help show help -s, --silent show minimal output-v, --verbose show verbose output[root@cfeeab4bb0eb elasticsearch]# ./bin/elasticsearch-setup-passwords autoinitiating the setup of passwords for reserved users elastic,apm_system,kibana,logstash_system,beats_system,remote_monitoring_user.the passwords will be randomly generated and printed to the console.please confirm that you would like to continue [y/n]ychanged password for user apm_systempassword apm_system = yxvzet9b2jedujyp66wschanged password for user kibanapassword kibana = 8nnthbj0n02idatghiduchanged password for user logstash_systempassword logstash_system = 9nidge7ksv8sqidsk8djchanged password for user beats_systempassword beats_system = qeuvaf1vealpjhfeuojjchanged password for user remote_monitoring_userpassword remote_monitoring_user = dtzcrckvtzsinrn3tw3dchanged password for user elasticpassword elastic = q5f2qnfujqyvzpiz57mz |
使用密碼
瀏覽器訪問localhost:9200/9201/9202 需要輸入賬號
輸入對應的elastic/password就好

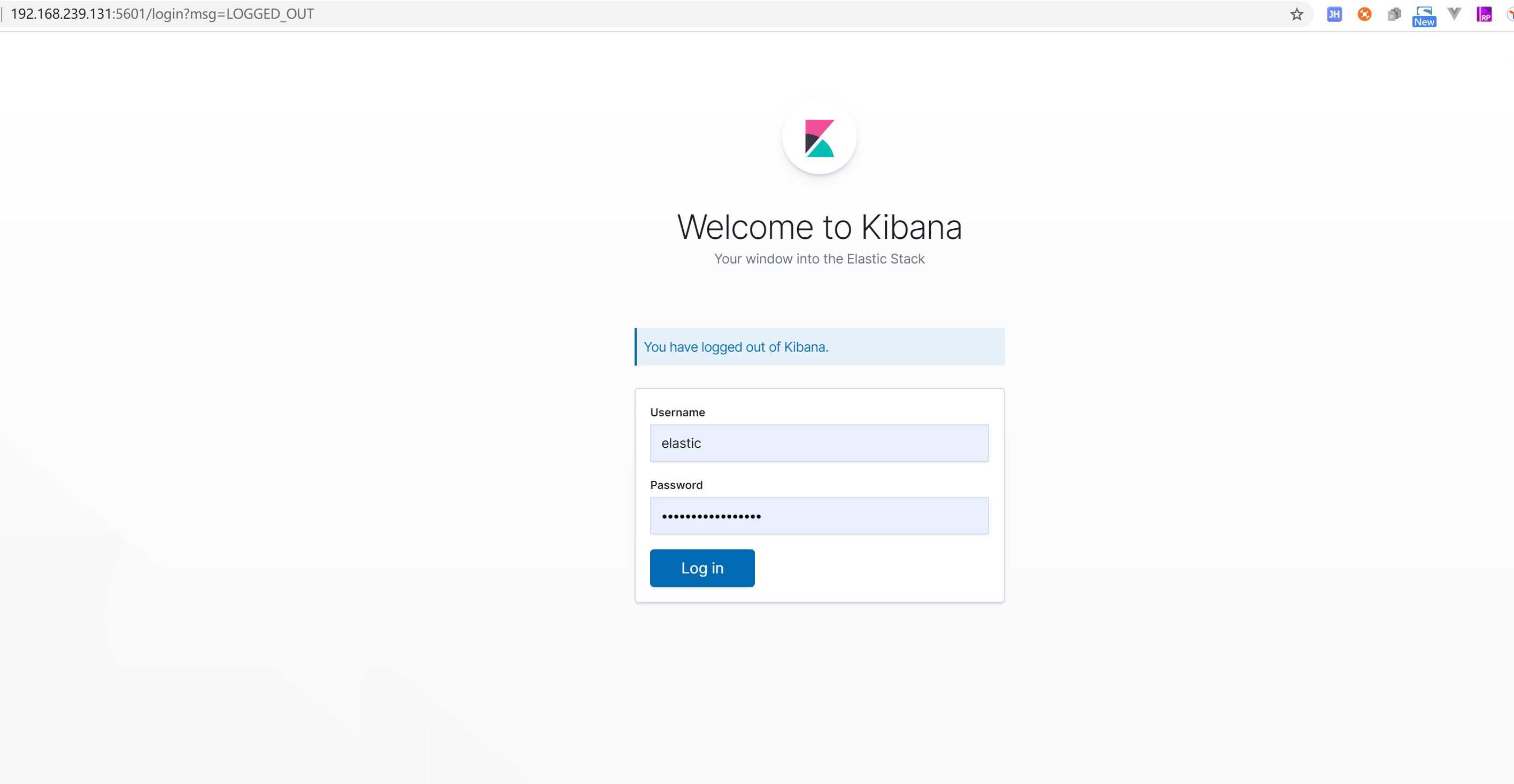

瀏覽器訪問localhost:5601
忘記密碼
如果生成后忘記密碼了怎么辦， 可以進入機器去修改。
進入es的機器
|
1
|
sudo docker exec -it es01 /bin/bash |
創建一個臨時的超級用戶ryanmiao
|
1
2
3
4
5
6
|
./bin/elasticsearch-users useradd ryan -r superuserenter new password: error: invalid password...passwords must be at least [6] characters long[root@cfeeab4bb0eb elasticsearch]# ./bin/elasticsearch-users useradd ryan -r superuserenter new password: retype new password: |
用這個用戶去修改elastic的密碼：
|
1
2
3
4
|
curl -xput -u ryan:ryan123 http://localhost:9200/_xpack/security/user/elastic/_password -h "content-type: application/json" -d '{ "password": "q5f2qnfujqyvzpiz57mz"}' |
參考
