本文實例講述了android手機鬧鐘用法。分享給大家供大家參考。具體如下：
一、開發手機鬧鐘主要用到了alarmmanager類，alarmmanager類提供了訪問系統定時服務的途徑，開發人員可以在程序中設置某個應用程序在未來的某個時刻被執行。當alarmmanager定時時間到了之后，當初注冊的intent對象將會被系統廣播，進而啟動目標程序。
二、在程序運行時當需要使用alarmmanager類時，可以通過context對象的getsystemservice(context.alarm_service)方法來獲得alarmmanager對象。
以下程序中使用時間選擇對話框設置鬧鐘的時間。
main.xml布局文件：
|
1
2
3
4
5
6
7
8
9
10
|
<?xml version="1.0" encoding="utf-8"?><linearlayout xmlns:android="http://schemas.android.com/apk/res/android" android:orientation="vertical" android:layout_width="fill_parent" android:layout_height="fill_parent"> <button android:id="@+id/btn" android:text="設置鬧鐘" android:layout_width="fill_parent" android:layout_height="wrap_content" /></linearlayout> |
清單文件：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
|
<?xml version="1.0" encoding="utf-8"?><manifest xmlns:android="http://schemas.android.com/apk/res/android" package="com.ljq.activity" android:versioncode="1" android:versionname="1.0"> <application android:icon="@drawable/icon" android:label="@string/app_name"> <activity android:name=".mainactivity" android:label="@string/app_name"> <intent-filter> <action android:name="android.intent.action.main" /> <category android:name="android.intent.category.launcher" /> </intent-filter> </activity> <activity android:name=".alarmactivity" /> <!-- android:process=":remote": 新開一個進程 --> <receiver android:name=".alarmreceiver" android:process=":remote"/> </application> <uses-sdk android:minsdkversion="7" /></manifest> |
alarmreceiver類：
|
1
2
3
4
5
6
7
8
9
10
11
12
|
package com.ljq.activity;import android.content.broadcastreceiver;import android.content.context;import android.content.intent;public class alarmreceiver extends broadcastreceiver{ @override public void onreceive(context context, intent intent) { intent i=new intent(context, alarmactivity.class); i.addflags(intent.flag_activity_new_task); context.startactivity(i); }} |
alarmactivity類：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
|
package com.ljq.activity;import android.app.activity;import android.app.alertdialog;import android.content.dialoginterface;import android.content.dialoginterface.onclicklistener;import android.os.bundle;public class alarmactivity extends activity { @override public void oncreate(bundle savedinstancestate) { super.oncreate(savedinstancestate); //顯示對話框 new alertdialog.builder(alarmactivity.this). settitle("鬧鐘").//設置標題 setmessage("時間到了！").//設置內容 setpositivebutton("知道了", new onclicklistener(){//設置按鈕 public void onclick(dialoginterface dialog, int which) { alarmactivity.this.finish();//關閉activity } }).create().show(); }} |
mainactivity類：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
|
package com.ljq.activity;import java.util.calendar;import android.app.activity;import android.app.alarmmanager;import android.app.dialog;import android.app.pendingintent;import android.app.timepickerdialog;import android.content.context;import android.content.intent;import android.os.bundle;import android.view.view;import android.widget.button;import android.widget.timepicker;import android.widget.toast;public class mainactivity extends activity{ private button btn=null; private alarmmanager alarmmanager=null; calendar cal=calendar.getinstance(); final int dialog_time = 0; //設置對話框id @override protected void oncreate(bundle savedinstancestate) { super.oncreate(savedinstancestate); setcontentview(r.layout.main); alarmmanager=(alarmmanager)getsystemservice(context.alarm_service); btn=(button)findviewbyid(r.id.btn); btn.setonclicklistener(new view.onclicklistener(){ public void onclick(view view) { showdialog(dialog_time);//顯示時間選擇對話框 } }); } @override protected dialog oncreatedialog(int id) { dialog dialog=null; switch (id) { case dialog_time: dialog=new timepickerdialog( this, new timepickerdialog.ontimesetlistener(){ public void ontimeset(timepicker timepicker, int hourofday,int minute) { calendar c=calendar.getinstance();//獲取日期對象 c.settimeinmillis(system.currenttimemillis()); //設置calendar對象 c.set(calendar.hour, hourofday); //設置鬧鐘小時數 c.set(calendar.minute, minute); //設置鬧鐘的分鐘數 c.set(calendar.second, 0); //設置鬧鐘的秒數 c.set(calendar.millisecond, 0); //設置鬧鐘的毫秒數 intent intent = new intent(mainactivity.this, alarmreceiver.class); //創建intent對象 pendingintent pi = pendingintent.getbroadcast(mainactivity.this, 0, intent, 0); //創建pendingintent //alarmmanager.set(alarmmanager.rtc_wakeup, c.gettimeinmillis(), pi); //設置鬧鐘 alarmmanager.set(alarmmanager.rtc_wakeup, system.currenttimemillis(), pi); //設置鬧鐘，當前時間就喚醒 toast.maketext(mainactivity.this, "鬧鐘設置成功", toast.length_long).show();//提示用戶 } }, cal.get(calendar.hour_of_day), cal.get(calendar.minute), false); break; } return dialog; }} |

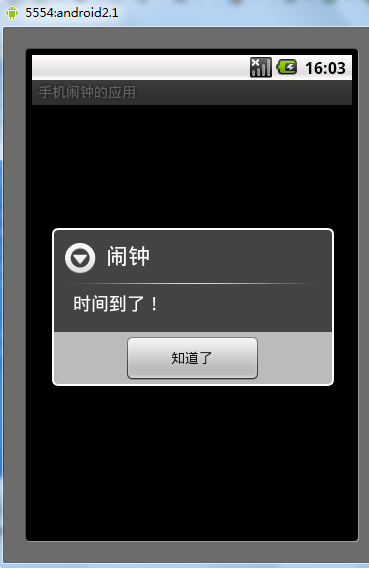

運行結果：
希望本文所述對大家的android程序設計有所幫助。
