maven多模塊項目,適用于一些比較大的項目，通過合理的模塊拆分，實現代碼的復用，便于維護和管理。尤其是一些開源框架，也是采用多模塊的方式，提供插件集成，用戶可以根據需要配置指定的模塊。
項目結構如下：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
|
test-hd-parent (父級) ---pom.xml ---test-hd-api (第三方接口層) ----pom.xml ---test-hd-foundation (基礎工具層) ----pom.xml ---test-hd-resource (資源層) ----pom.xml ---test-hd-service (邏輯業務層) ----pom.xml ---test-hd-modules (web層) ----pom.xml ---test-hd-www (web模塊1) ----pom.xml ---test-hd-admin (web模塊2) ----pom.xml |
創建一個父maven工程

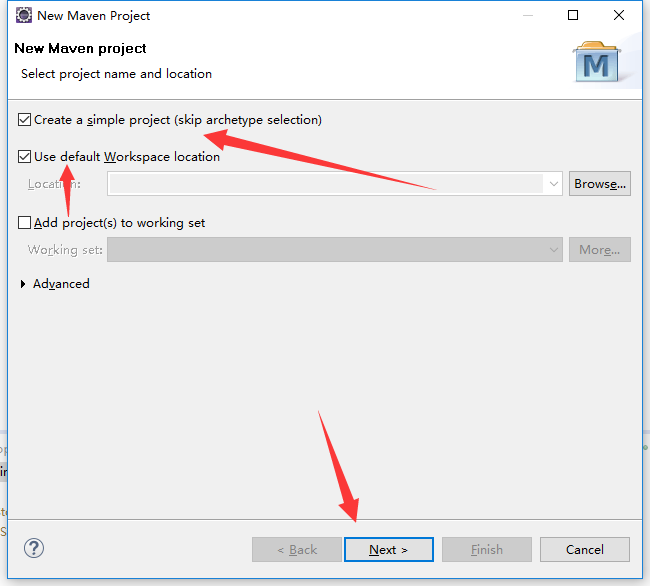

新建一個maven項目，選擇存儲位置，并選擇創建一個簡單的maven工程
輸入group id、artifact id、packaging，packaging選擇pom包
生成父工程，pom.xml如下
刪除工程中的src 目錄
創建子模塊
右擊父工程名---》new---》project，然后選擇新建一個maven module工程
設置子工程名以及父工程，再設置快速創建模式
得到子工程（test-hd-api，第三方接口層），設置編譯的jdk
同理設置，子模塊：test-hd-foundation(基礎工具層)、test-hd-resource(資源層) 、test-hd-service(邏輯業務層)
新建test-hd-modules (web層)，選擇創建一個a simple project，輸入group id、artifact id、packaging，packaging選擇pom包
創建web子模塊
web子模塊在建在test-hd-modules (web層)里面，右擊test-hd-modules 工程名---》new---》project，然后選擇新建一個maven module工程，設置子工程名以及父工程，選擇新建web項目
配置maven web項目，參照：【maven】eclipse 使用maven創建java web項目
同理可以配置其他的web子模塊 test-hd-admin(web模塊2)
配置個模塊的依賴
在parent項目pom.xml中建立依賴管理（dependencymanagement）
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
|
<project xmlns="http://maven.apache.org/pom/4.0.0" xmlns:xsi="http://www.w3.org/2001/xmlschema-instance" xsi:schemalocation="http://maven.apache.org/pom/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelversion>4.0.0</modelversion> <groupid>com.hd</groupid> <artifactid>test-hd-parent</artifactid> <version>0.0.1-snapshot</version> <packaging>pom</packaging> <modules> <module>test-hd-api</module> <module>test-hd-service</module> <module>test-hd-resource</module> <module>test-hd-foundation</module> <module>test-hd-modules</module> </modules> <!-- maven依賴 --> <dependencymanagement> <dependencies> <!-- hd --> <dependency> <groupid>com.hd</groupid> <artifactid>test-hd-api</artifactid> <version>0.0.1-snapshot</version> </dependency> <dependency> <groupid>com.hd</groupid> <artifactid>test-hd-service</artifactid> <version>0.0.1-snapshot</version> </dependency> <dependency> <groupid>com.hd</groupid> <artifactid>test-hd-resource</artifactid> <version>0.0.1-snapshot</version> </dependency> <dependency> <groupid>com.hd</groupid> <artifactid>test-hd-foundation</artifactid> <version>0.0.1-snapshot</version> </dependency> <!-- servlet --> <dependency> <groupid>javax.servlet</groupid> <artifactid>javax.servlet-api</artifactid> <version>3.0.1</version> <scope>provided</scope> </dependency> <dependency> <groupid>javax.servlet.jsp</groupid> <artifactid>jsp-api</artifactid> <version>2.2</version> <scope>provided</scope> </dependency> <!-- jstl --> <dependency> <groupid>javax.servlet</groupid> <artifactid>jstl</artifactid> <version>1.2</version> </dependency> <dependency> <groupid>taglibs</groupid> <artifactid>standard</artifactid> <version>1.1.2</version> </dependency> <dependency> <groupid>junit</groupid> <artifactid>junit</artifactid> <version>3.8.1</version> <scope>test</scope> </dependency> </dependencies> </dependencymanagement></project> |
test-hd-foundation中的依賴
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
|
<?xml version="1.0"?><project xsi:schemalocation="http://maven.apache.org/pom/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd" xmlns="http://maven.apache.org/pom/4.0.0" xmlns:xsi="http://www.w3.org/2001/xmlschema-instance"> <modelversion>4.0.0</modelversion> <parent> <groupid>com.hd</groupid> <artifactid>test-hd-parent</artifactid> <version>0.0.1-snapshot</version> </parent> <artifactid>test-hd-foundation</artifactid> <dependencies> <!-- servlet --> <dependency> <groupid>javax.servlet</groupid> <artifactid>jstl</artifactid> </dependency> <dependency> <groupid>taglibs</groupid> <artifactid>standard</artifactid> </dependency> <dependency> <groupid>junit</groupid> <artifactid>junit</artifactid> </dependency> </dependencies> <build> <plugins> <!-- define the project compile level --> <plugin> <groupid>org.apache.maven.plugins</groupid> <artifactid>maven-compiler-plugin</artifactid> <version>2.3.2</version> <configuration> <source>1.7</source> <target>1.7</target> </configuration> </plugin> </plugins> </build></project> |
test-hd-api中的依賴關系
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
|
<?xml version="1.0"?><project xsi:schemalocation="http://maven.apache.org/pom/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd" xmlns="http://maven.apache.org/pom/4.0.0" xmlns:xsi="http://www.w3.org/2001/xmlschema-instance"> <modelversion>4.0.0</modelversion> <parent> <groupid>com.hd</groupid> <artifactid>test-hd-parent</artifactid> <version>0.0.1-snapshot</version> </parent> <artifactid>test-hd-api</artifactid> <dependencies> <dependency> <groupid>com.hd</groupid> <artifactid>test-hd-foundation</artifactid> </dependency> <!-- servlet --> <dependency> <groupid>javax.servlet</groupid> <artifactid>jstl</artifactid> </dependency> <dependency> <groupid>taglibs</groupid> <artifactid>standard</artifactid> </dependency> <dependency> <groupid>junit</groupid> <artifactid>junit</artifactid> </dependency> </dependencies> <build> <plugins> <!-- define the project compile level --> <plugin> <groupid>org.apache.maven.plugins</groupid> <artifactid>maven-compiler-plugin</artifactid> <version>2.3.2</version> <configuration> <source>1.7</source> <target>1.7</target> </configuration> </plugin> </plugins> <finalname>test-hd-api</finalname> </build></project> |
test-hd-resource中的依賴關系
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
|
<?xml version="1.0"?><project xsi:schemalocation="http://maven.apache.org/pom/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd" xmlns="http://maven.apache.org/pom/4.0.0" xmlns:xsi="http://www.w3.org/2001/xmlschema-instance"> <modelversion>4.0.0</modelversion> <parent> <groupid>com.hd</groupid> <artifactid>test-hd-parent</artifactid> <version>0.0.1-snapshot</version> </parent> <artifactid>test-hd-resource</artifactid> <dependencies> <dependency> <groupid>junit</groupid> <artifactid>junit</artifactid> </dependency> </dependencies> <build> <plugins> <!-- define the project compile level --> <plugin> <groupid>org.apache.maven.plugins</groupid> <artifactid>maven-compiler-plugin</artifactid> <version>2.3.2</version> <configuration> <source>1.7</source> <target>1.7</target> </configuration> </plugin> </plugins> </build></project> |
test-hd-service中的依賴關系
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
|
<?xml version="1.0"?><project xsi:schemalocation="http://maven.apache.org/pom/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd" xmlns="http://maven.apache.org/pom/4.0.0" xmlns:xsi="http://www.w3.org/2001/xmlschema-instance"> <modelversion>4.0.0</modelversion> <parent> <groupid>com.hd</groupid> <artifactid>test-hd-parent</artifactid> <version>0.0.1-snapshot</version> </parent> <artifactid>test-hd-service</artifactid> <dependencies> <dependency> <groupid>com.hd</groupid> <artifactid>test-hd-foundation</artifactid> </dependency> <dependency> <groupid>com.hd</groupid> <artifactid>test-hd-api</artifactid> </dependency> <!-- servlet --> <dependency> <groupid>javax.servlet</groupid> <artifactid>jstl</artifactid> </dependency> <dependency> <groupid>taglibs</groupid> <artifactid>standard</artifactid> </dependency> <dependency> <groupid>junit</groupid> <artifactid>junit</artifactid> </dependency> </dependencies> <build> <plugins> <!-- define the project compile level --> <plugin> <groupid>org.apache.maven.plugins</groupid> <artifactid>maven-compiler-plugin</artifactid> <version>2.3.2</version> <configuration> <source>1.7</source> <target>1.7</target> </configuration> </plugin> </plugins> <finalname>test-hd-service</finalname> </build></project> |
test-hd-module中的依賴關系
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
|
<?xml version="1.0" encoding="utf-8"?><project xmlns="http://maven.apache.org/pom/4.0.0" xmlns:xsi="http://www.w3.org/2001/xmlschema-instance" xsi:schemalocation="http://maven.apache.org/pom/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelversion>4.0.0</modelversion> <parent> <groupid>com.hd</groupid> <artifactid>test-hd-parent</artifactid> <version>0.0.1-snapshot</version> </parent> <artifactid>test-hd-modules</artifactid> <packaging>pom</packaging> <modules> <module>test-hd-www</module> <module>test-hd-admin</module> </modules> <dependencies> <dependency> <groupid>com.hd</groupid> <artifactid>test-hd-foundation</artifactid> </dependency> <dependency> <groupid>com.hd</groupid> <artifactid>test-hd-service</artifactid> </dependency> <dependency> <groupid>com.hd</groupid> <artifactid>test-hd-api</artifactid> </dependency> <dependency> <groupid>com.hd</groupid> <artifactid>test-hd-resource</artifactid> </dependency> <!-- servlet --> <dependency> <groupid>javax.servlet</groupid> <artifactid>jstl</artifactid> </dependency> <dependency> <groupid>taglibs</groupid> <artifactid>standard</artifactid> </dependency> <dependency> <groupid>junit</groupid> <artifactid>junit</artifactid> </dependency> </dependencies></project> |
test-hd-www中的依賴關系
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
|
<?xml version="1.0"?><project xsi:schemalocation="http://maven.apache.org/pom/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd" xmlns="http://maven.apache.org/pom/4.0.0" xmlns:xsi="http://www.w3.org/2001/xmlschema-instance"> <modelversion>4.0.0</modelversion> <parent> <groupid>com.hd</groupid> <artifactid>test-hd-modules</artifactid> <version>0.0.1-snapshot</version> </parent> <artifactid>test-hd-www</artifactid> <packaging>war</packaging> <build> <plugins> <!-- define the project compile level --> <plugin> <groupid>org.apache.maven.plugins</groupid> <artifactid>maven-compiler-plugin</artifactid> <version>2.3.2</version> <configuration> <source>1.7</source> <target>1.7</target> </configuration> </plugin> </plugins> <finalname>test-hd-www</finalname> </build></project> |
最后使用maven-update整個工程，右擊父工程名--》maven--》update project
打包和發布
打包，右擊父工程名 test-hd-parent---->run as--->maven install
打包web子工程，右擊工程名test-hd-www--->run as ---> maven build...---> goals: clean package--->run
右擊工程名test-hd-www，進行刷新，找到war包，放到tomcat的webapps中，啟動tomcat，即可訪問工程http://localhost:8080/test-hd-www
可以去tomcat下面webapps》test-hd-www》web-inf》lib中，看到引用的jar包
