內置的連接池
目前spring Boot中默認支持的連接池有dbcp,dbcp2, tomcat, hikari三種連接池。
數據庫連接可以使用DataSource池進行自動配置。
- 由于Tomcat數據源連接池的性能和并發，在tomcat可用時，我們總是優先使用它。
- 如果HikariCP可用，我們將使用它。
- 如果Commons DBCP可用，我們將使用它，但在生產環境不推薦使用它。
- 最后，如果Commons DBCP2可用，我們將使用它。
以上的幾種連接池，可以通過在配置application文件中配置。
|
1
2
3
4
|
spring.datasource.url=jdbc:mysql://localhost/testspring.datasource.username=dbuserspring.datasource.password=dbpassspring.datasource.driver-class-name=com.mysql.jdbc.Driver |
Spring Boot能夠從大多數數據庫的url上推斷出driver-class-name，你就不需要再指定它了。對于一個將要創建的DataSource連接池，我們需要能夠驗證Driver是否可用，所以我們會在做任何事情之前檢查它。比如，如果你設置spring.datasource.driverClassName=com.MySQL.jdbc.Driver，然后這個類就會被加載。
配置Druid連接池
在SpringBoot 的1.5.2版本中不在支持自動配druid，，即無法通過配置項直接支持相應的連接池；這里列出的這些配置項可以通過定制化DataSource來實現。
druid介紹
Druid是一個JDBC組件，它包括三部分：
- DruidDriver 代理Driver，能夠提供基于Filter－Chain模式的插件體系。
- DruidDataSource 高效可管理的數據庫連接池。
- SQLParser
Druid可以做什么
- 可以監控數據庫訪問性能，Druid內置提供了一個功能強大的StatFilter插件，能夠詳細統計SQL的執行性能，這對于線上分析數據庫訪問性能有幫助。
- 替換DBCP和C3P0。Druid提供了一個高效、功能強大、可擴展性好的數據庫連接池。
- 數據庫密碼加密。直接把數據庫密碼寫在配置文件中，這是不好的行為，容易導致安全問題。DruidDruiver和DruidDataSource都支持PasswordCallback。
- SQL執行日志，Druid提供了不同的LogFilter，能夠支持Common-Logging、Log4j和JdkLog，你可以按需要選擇相應的LogFilter，監控你應用的數據庫訪問情況。
- 擴展JDBC，如果你要對JDBC層有編程的需求，可以通過Druid提供的Filter-Chain機制，很方便編寫JDBC層的擴展插件。
項目地址： https://github.com/alibaba/druid
Spring Boot與Druid的集成
MySQL Driver驅動包：
|
1
2
3
4
5
|
<dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> <scope>runtime</scope></dependency> |
阿里系的Druid依賴包：
|
1
2
3
4
5
|
<dependency> <groupId>com.alibaba</groupId> <artifactId>druid</artifactId> <version>1.0.25</version></dependency> |
application.properties配置信息
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
|
# 驅動配置信息spring.datasource.type=com.alibaba.druid.pool.DruidDataSourcespring.datasource.url = jdbc:mysql://127.0.0.1:3306/test?useUnicode=true&characterEncoding=utf-8 spring.datasource.username = rootspring.datasource.password = adminterspring.datasource.driverClassName = com.mysql.jdbc.Driver#連接池的配置信息## 初始化大小，最小，最大spring.druid.initialSize=5spring.druid.minIdle=5spring.druid.maxActive=20## 配置獲取連接等待超時的時間spring.druid.maxWait=60000# 配置間隔多久才進行一次檢測，檢測需要關閉的空閑連接，單位是毫秒spring.druid.timeBetweenEvictionRunsMillis=60000# 配置一個連接在池中最小生存的時間，單位是毫秒spring.druid.minEvictableIdleTimeMillis=300000spring.druid.validationQuery=SELECT 1 FROM DUALspring.druid.testWhileIdle=truespring.druid.testOnBorrow=falsespring.druid.testOnReturn=falsespring.druid.poolPreparedStatements=truespring.druid.maxPoolPreparedStatementPerConnectionSize=20# 配置監控統計攔截的filters，去掉后監控界面sql無法統計，'wall'用于防火墻spring.druid.filters=stat,wall,log4j# 通過connectProperties屬性來打開mergeSql功能；慢SQL記錄spring.druid.connectionProperties=druid.stat.mergeSql=true;druid.stat.slowSqlMillis=5000 |
DruidSource配置信息的定制
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
|
package com.lf.datasource;import com.alibaba.druid.pool.DruidDataSource;import org.springframework.boot.context.properties.ConfigurationProperties;import org.springframework.context.annotation.Bean;import org.springframework.context.annotation.Primary;import javax.sql.DataSource;import java.sql.SQLException;/** * Created by LF on 2017/4/18. */@ConfigurationProperties(prefix = "spring.druid")public class DruidSource { private String dbUrl; private String username; private String password; private String driverClassName; private int initialSize; private int minIdle; private int maxActive; private int maxWait; private int timeBetweenEvictionRunsMillis; private int minEvictableIdleTimeMillis; private String validationQuery; private boolean testWhileIdle; private boolean testOnBorrow; private boolean testOnReturn; private boolean poolPreparedStatements; private int maxPoolPreparedStatementPerConnectionSize; private String filters; private String connectionProperties; public String getDbUrl() { return dbUrl; } public void setDbUrl(String dbUrl) { this.dbUrl = dbUrl; } public String getUsername() { return username; } public void setUsername(String username) { this.username = username; } public String getPassword() { return password; } public void setPassword(String password) { this.password = password; } public String getDriverClassName() { return driverClassName; } public void setDriverClassName(String driverClassName) { this.driverClassName = driverClassName; } public int getInitialSize() { return initialSize; } public void setInitialSize(int initialSize) { this.initialSize = initialSize; } public int getMinIdle() { return minIdle; } public void setMinIdle(int minIdle) { this.minIdle = minIdle; } public int getMaxActive() { return maxActive; } public void setMaxActive(int maxActive) { this.maxActive = maxActive; } public int getMaxWait() { return maxWait; } public void setMaxWait(int maxWait) { this.maxWait = maxWait; } public int getTimeBetweenEvictionRunsMillis() { return timeBetweenEvictionRunsMillis; } public void setTimeBetweenEvictionRunsMillis(int timeBetweenEvictionRunsMillis) { this.timeBetweenEvictionRunsMillis = timeBetweenEvictionRunsMillis; } public int getMinEvictableIdleTimeMillis() { return minEvictableIdleTimeMillis; } public void setMinEvictableIdleTimeMillis(int minEvictableIdleTimeMillis) { this.minEvictableIdleTimeMillis = minEvictableIdleTimeMillis; } public String getValidationQuery() { return validationQuery; } public void setValidationQuery(String validationQuery) { this.validationQuery = validationQuery; } public boolean isTestWhileIdle() { return testWhileIdle; } public void setTestWhileIdle(boolean testWhileIdle) { this.testWhileIdle = testWhileIdle; } public boolean isTestOnBorrow() { return testOnBorrow; } public void setTestOnBorrow(boolean testOnBorrow) { this.testOnBorrow = testOnBorrow; } public boolean isTestOnReturn() { return testOnReturn; } public void setTestOnReturn(boolean testOnReturn) { this.testOnReturn = testOnReturn; } public boolean isPoolPreparedStatements() { return poolPreparedStatements; } public void setPoolPreparedStatements(boolean poolPreparedStatements) { this.poolPreparedStatements = poolPreparedStatements; } public int getMaxPoolPreparedStatementPerConnectionSize() { return maxPoolPreparedStatementPerConnectionSize; } public void setMaxPoolPreparedStatementPerConnectionSize(int maxPoolPreparedStatementPerConnectionSize) { this.maxPoolPreparedStatementPerConnectionSize = maxPoolPreparedStatementPerConnectionSize; } public String getFilters() { return filters; } public void setFilters(String filters) { this.filters = filters; } public String getConnectionProperties() { return connectionProperties; } public void setConnectionProperties(String connectionProperties) { this.connectionProperties = connectionProperties; } @Bean //聲明其為Bean實例 @Primary //在同樣的DataSource中，首先使用被標注的DataSource public DataSource dataSource() throws SQLException { DruidDataSource datasource = new DruidDataSource(); datasource.setUrl(this.dbUrl); datasource.setUsername(username); datasource.setPassword(password); datasource.setDriverClassName(driverClassName); //configuration datasource.setInitialSize(initialSize); datasource.setMinIdle(minIdle); datasource.setMaxActive(maxActive); datasource.setMaxWait(maxWait); datasource.setTimeBetweenEvictionRunsMillis(timeBetweenEvictionRunsMillis); datasource.setMinEvictableIdleTimeMillis(minEvictableIdleTimeMillis); datasource.setValidationQuery(validationQuery); datasource.setTestWhileIdle(testWhileIdle); datasource.setTestOnBorrow(testOnBorrow); datasource.setTestOnReturn(testOnReturn); datasource.setPoolPreparedStatements(poolPreparedStatements); datasource.setMaxPoolPreparedStatementPerConnectionSize(maxPoolPreparedStatementPerConnectionSize); datasource.setFilters(filters); return datasource; }} |
基于注解的配置StatView的Servlet
Filter的實現類：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
|
package com.lf.config;import com.alibaba.druid.support.http.WebStatFilter;import javax.servlet.annotation.WebFilter;import javax.servlet.annotation.WebInitParam;/** * Created by LF on 2017/4/18. */@WebFilter(filterName = "druidWebStatFilter", urlPatterns = "/*", initParams = { @WebInitParam(name = "exclusions", value = "*.js,*.gif,*.jpg,*.bmp,*.png,*.css,*.ico,/druid/*")//忽略資源 })public class DruidStatFilter extends WebStatFilter {} |
StatViewServlet:
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
|
package com.lf.config;import com.alibaba.druid.support.http.StatViewServlet;import javax.servlet.annotation.WebInitParam;import javax.servlet.annotation.WebServlet;/** * Created by LF on 2017/4/18. */@WebServlet(urlPatterns = "/druid/*", initParams = { @WebInitParam(name = "allow", value = "127.0.0.1,192.168.163.1"),// IP白名單(沒有配置或者為空，則允許所有訪問) @WebInitParam(name = "deny", value = "192.168.1.73"),// IP黑名單 (存在共同時，deny優先于allow) @WebInitParam(name = "loginUsername", value = "admin"),// 用戶名 @WebInitParam(name = "loginPassword", value = "123456"),// 密碼 @WebInitParam(name = "resetEnable", value = "false")// 禁用HTML頁面上的“Reset All”功能 })public class DruidStatViewServlet extends StatViewServlet { private static final long serialVersionUID = -2688872071445249539L;} |
在啟動類上加入@ServletComponentScan注解
基于Java的配置StatView的Servlet
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
|
package com.lf.config;import com.alibaba.druid.support.http.StatViewServlet;import com.alibaba.druid.support.http.WebStatFilter;import org.springframework.boot.web.servlet.FilterRegistrationBean;import org.springframework.boot.web.servlet.ServletRegistrationBean;import org.springframework.context.annotation.Bean;import org.springframework.context.annotation.Configuration;/** * Created by LF on 2017/4/18. */@Configurationpublic class DruidConfig { @Bean public ServletRegistrationBean registrationBean() { ServletRegistrationBean servletRegistrationBean = new ServletRegistrationBean(new StatViewServlet()); //添加初始化參數：initParams servletRegistrationBean.addUrlMappings("/druid/*"); //白名單： servletRegistrationBean.addInitParameter("allow", "127.0.0.1"); //IP黑名單 (存在共同時，deny優先于allow) : 如果滿足deny的話提示:Sorry, you are not permitted to view this page. servletRegistrationBean.addInitParameter("deny", "192.168.1.73"); //登錄查看信息的賬號密碼. servletRegistrationBean.addInitParameter("loginUsername", "admin"); servletRegistrationBean.addInitParameter("loginPassword", "123456"); //是否能夠重置數據. servletRegistrationBean.addInitParameter("resetEnable", "false"); return servletRegistrationBean; } @Bean public FilterRegistrationBean filterRegistrationBean() { FilterRegistrationBean filterRegistrationBean = new FilterRegistrationBean(new WebStatFilter()); //添加過濾規則. filterRegistrationBean.addUrlPatterns("/*"); //添加不需要忽略的格式信息. filterRegistrationBean.addInitParameter("exclusions", "*.js,*.gif,*.jpg,*.png,*.css,*.ico,/druid/*"); return filterRegistrationBean; }} |

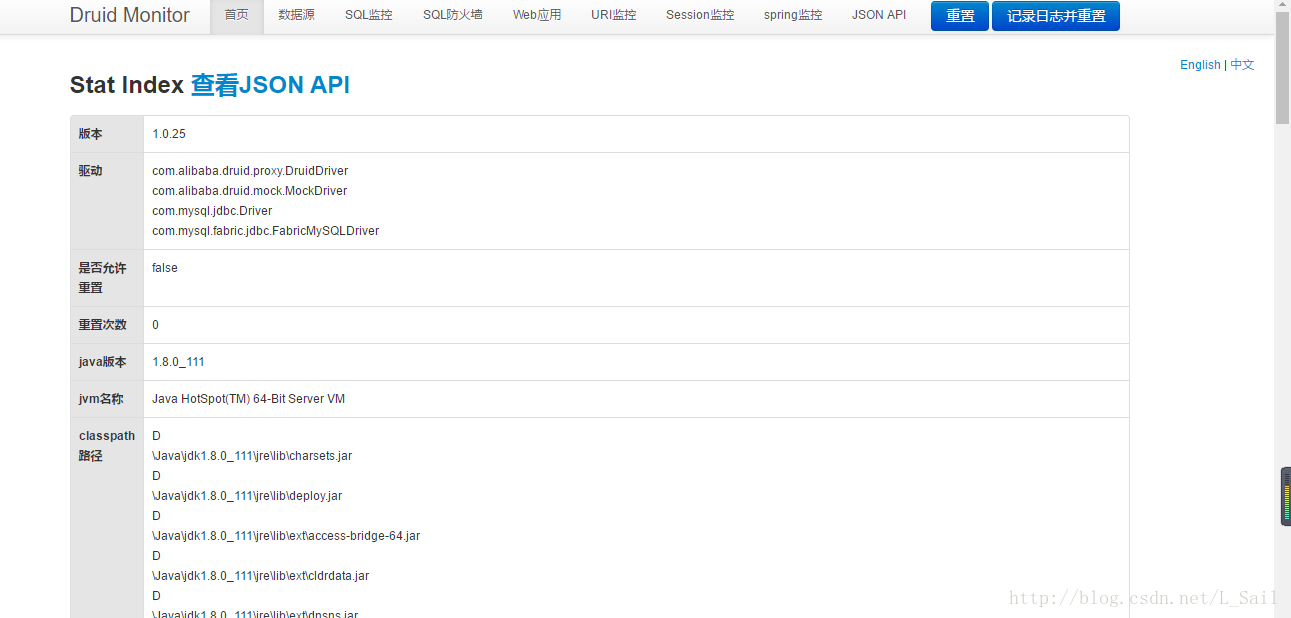

運行界面以及介紹
訪問地址： http://192.168.163.1:8080/druid/index.html
賬號和密碼為在servlet中配置的
以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持服務器之家。
